Summary of Contents for Intelbras Twibi Fast
- Page 1 User guide Twibi Fast...

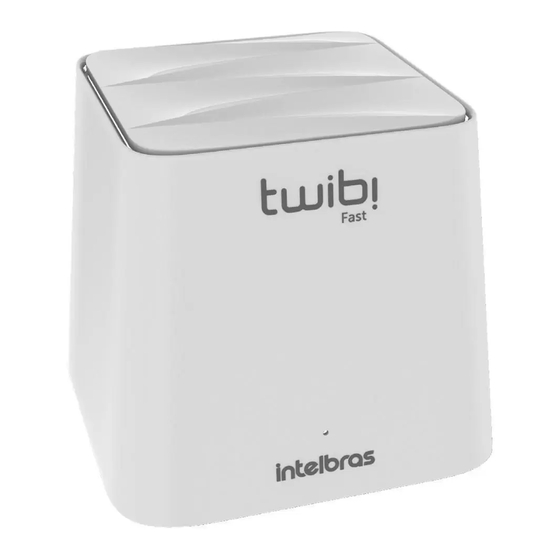

- Page 2 Congratulations, you have just purchased a product with Intelbras quality and security. The Mesh Twibi Fast router provides a complete solution for home networks and small offices. With it you can share Internet access with multiple devi- ces in a high-speed wireless network. Its installation and management can...
- Page 3 Care and safety Pre ra instalar seu roteador na Prefer to install your router in the parte central do ambiente, de central part of the environment and preferably in a higher location, for preferência, em local mais alto, por example on top of a furniture. exemplo, em cima de um móvel.
-
Page 4: Table Of Contents
Summary 1. Technical specifications 2. Meaning of LED 3. Installation 3.1. Connecting a Twibi to your modem....... . .7 3.2. -
Page 5: Technical Specifications
1. Technical specifications Hardware 2 internal antennas of 3 dBi 1 WAN/LAN fast port 1 LAN fast port Chipset Realtek RTL8197FNT+RTL8812BR ® Flash Memory 8 MB RAM memory 64 MB Wireless parameters IEEE 802.11ac/a/n 5 GHz Standards IEEE 802.11b/g/n 2.4 GHz IEEE 802.11v/r (roaming) MU-MiMo Radio mode... -
Page 6: Meaning Of Led
2. Meaning of LED Main Twibi Other Twibis Meaning Everything set! Connected to the internet and excellent connection Green Green between Twibis The Twibi with the Yellow LED is too far away, we recommend Green Yellow bringing it closer to another Twibi The Twibi with the Red LED is not able to connect to another Twibi, Green get it closer to another Twibi... -
Page 7: Connecting A Twibi To Your Modem
3.1. Connecting a Twibi to your modem To use the Internet through Twibi you need to connect it to your operator’s modem or router. It is necessary to do this only on a Twibi of your network, following the procedure: 1. -
Page 8: Connect Your Smartphone To Twibi
3.2. Connect your smartphone to Twibi To start configuring the Twibi you must first connect to your Wi-Fi network, go to your device's Wi-Fi network list and look for the Twibi Wi-Fi network. By default, the network is without password, just click on it to connect. List of Wi-Fi networks... -
Page 9: Configuration
4. Configuration All Twibi settings are made through the Wi-Fi Control Home application, always make sure you are connected to the Wi-Fi network generated by Twibi itself. If you are connected to another Wi-Fi network or disconnected from Wi-Fi, the applica- tion will not find Twibi. -
Page 10: Adding Another Twibi To Your Network
4.2. Adding another Twibi to your network You can add more Twibis to your network and thereby increase the range of your Wi-Fi. To add a new Twibi to your network, follow the procedure: 1. Position the new Twibi up to 10 meters from another already installed Twibi; 2. -
Page 11: Using The Wi-Fi Control Home App
5. Using the Wi-Fi Control Home app When you open the Wi-Fi Control Home application after the first configuration, the main screen will be displayed: Main screen of the application... - Page 12 Here’s what each item means: Shows how much of your internet upload is currently being used, in megabits per second Shows how much of your internet download is currently being used, in megabits per second Click to display your internet information Shows the status of each Twibi in your network and tells you individually how the connection is between each Twibi...
-
Page 13: Information About Each Twibi
5.1. Information about each Twibi To see information specific to each Twibi, just click on the Twibi you want to get the information on the main screen. When you click on Twibi, the following screen will appear: Twibi information screen Here’s what each item means: »... -
Page 14: Device List
» Location: click to inform the location where Twibi is installed to facilitate the identification and location of each Twibi. » LED status: shows a description of the product’s LED colors and allows you to configure the LED to always be off or on. »... -
Page 15: Wi-Fi Network Name And Password
You can view the devices connected to your network, for each device an icon is displayed with the manufacturer name, device name, through where the device is connected (2.4 GHz, 5 Ghz or via cable), how long the device is connected and the download rate used by the device in real time. -
Page 16: Visitors Wi-Fi
5.4. Visitors Wi-Fi In the menu Visitors Wi-Fi you can configure a separate network for visitors. With this you do not need to give your main Wi-Fi network password to other people. » Wi-Fi name: this is the name that will appear in the Wi-Fi network listof your devices. - Page 17 When you open the parental control after creating your first group, the list of groups will appear, on this screen you can add a new group by clicking on + , block the internet for all devices in the group by clicking on or release access by clic- king on .
- Page 18 Internet access is enabled, click on the icon to block Internet access Internet access is blocked, click on the icon to enable Internet access Devices Shows the list of devices the group is managing Click to add more devices to the group Click to remove devices from the group Set the times the group will not be able to access the Internet.
- Page 19 You can create a rule and disable it if you want to make an exception occasionally, Enable so you do not have to remove the rule and create it again Rule name To make management easier, enter a name for the rule Start and End Set the time that the Internet will be blocked for the devices Active on...
-
Page 20: Band Control
Click to add a website to the list, just enter a keyword of the site, for example, to enter the website www.intelbras.com.br, just enter the word intelbras Note: pay attention to the password used because all websites that contain it will be blocked. -
Page 21: Internet Menu
5.7. Internet menu In the menu Internet , you can configure the type of Internet connection. This is only necessary if you change your ISP or change some configuration of the modem/ router connected to the Twibi WAN port. The connection types are: »... -
Page 22: Fast Roaming
5.9. Fast roaming This function allows devices to have a better Wi-Fi experience by choosing the best access point to connect to, so that they do not experience disconnection (with excellent connection between access points) when switching from one access point to another. -
Page 23: Dhcp Server
5.12. DHCP Server You can change the IP address of the main Twibi and the other IP and DHCP server settings will be made automatically based on the selected IP address. Simply select the desired IP address and click on Save . 5.13. -
Page 24: Frequently Asked Questions
Wi-Fi Control Home app What is the coverage area of the Each Twibi Fast covers an area of up to 100 m². Add more Twibi Fast? modules if you want to cover a larger area. -
Page 25: Warranty Term
Warranty term It is expressly stated that this contractual warranty is given subject to the following conditions: Name of customer: Signature of the customer: No. of the invoice: Date of purchase: Model: Serial No: Reseller: 1. All parts and components of the product are under warranty against pos- sible manufacturing defects, which may present, for a period of 60 (five) years –... - Page 26 Consumer make a regular backup copy of the data contained in the product. 7. Intelbras is not responsible for the installation of this product and also for any attempts of fraud and/or sabotage on its products. Keep software and application updates, if any, up to date, as well as network protections necessary to protect against hackers.
- Page 27 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported in Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.20 CNPJ 82.901.000/0014-41 –...
