  • Page 1 User guide ACtion RG 1200...

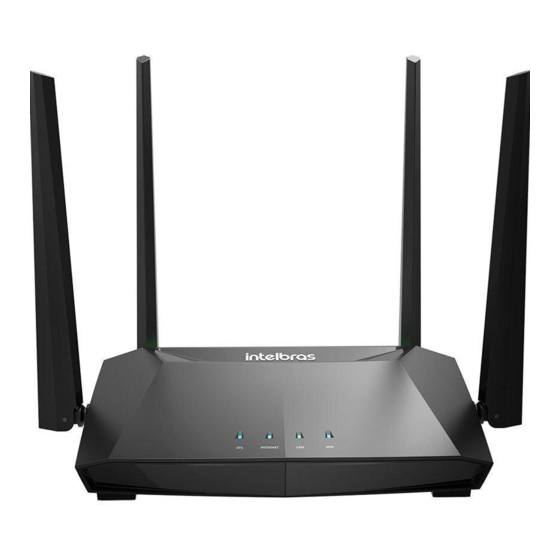

  • Page 2 Congratulations, you have just purchased a product with Intelbras quality and security. The Wi-Fi router ACtion RG 1200 provides a complete solution for home networ- ks. With it you can share Internet access with multiple devices in a high-speed wireless network. It can be installed and managed via the web interface or via...

  • Page 3: Care And Safety

    Care and safety Adjust the position of the antennas; normally the vertical position is the most indicated. Prefer to install your router in the central part of the environ- ment and preferably in a higher location, for example on top of a furniture.

  • Page 4: Table Of Contents

    Summary Care and safety 1. Technical specifications 2. Accessories 3. Installation 4. Configuration 4.1. Configuration via installation wizard.............7 4.2.

  • Page 5: Technical Specifications

    1. Technical specifications Hardware 4 fixed antennas of 5 dBi 3 LAN ports (10/100/1000 Mbps each) 1 Internet port (10/100/1000 Mbps) Chipset Realtek RTL8197FS + RTL8367R + RTL8812BRH ® Flash Memory 8 MB RAM memory 128 MB Wireless parameters Standards IEEE 802.11a/b/g/n/ac Radio mode MU-MiMo...

  • Page 6: Accessories

    INTELBRAS or INTELBRAS_5G , after performing steps 2 and 3 . » To access the 5GHz Wi-Fi network, your devices must support this technology. If in doubt, please refer to the manufacturer’s manual and check for compatibility with the same technologies as ACtion RG 1200.

  • Page 7: Configuration

    4. Configuration On your computer, open your web browser (we recommend using the most current versions of Google Chrome , Mozil- ® ) and go to http://10.0.0.1 or http://meuintelbras.local/ as shown in the following image. la Firefox or Microsoft Edge ®...
  • Page 8 1. Fill in the Wi-Fi Network Name field with the name you want for your Wi-Fi network, for example, My Network . This field by default is filled in with the name INTELBRAS , but can be changed to any name up to 29 characters long;...

  • Page 9: Configuration In Other Scenarios For Product Use

    Final screen of the installation wizard Congratulations! Your router is already configured and ready to access the Internet. Important: if you are accessing your router via Wi-Fi, wait until it applies the settings and then connect to your new network, which was created in the previous steps. 4.2.
  • Page 10 Wi-Fi Network Settings>Wi-Fi Network Name and Password ; 8. If you want the ACtion RG 1200 to repeat the same SSID and password as your main network, go to the web page at http://meuintelbras.local (item 4.5. Configurações da rede Wi-Fi ) and configure the Wi-Fi network with the same SSID...
  • Page 11 Wireless client . In this mode of operation, you will not need to connect the network cable to the port WAN of ACtion RG 1200. The product will connect via Wi-Fi to an existing network.

  • Page 12: Internet Status

    Wireless client configuration screen Access point With this mode, the product will not perform routing, but will only serve to provide Wi-Fi and cable access to an existing network. In this use scenario, the port WAN will work as a LAN port. To use the mode Access Point , you will need to access the product's web configuration interface (through the IP address 10.0.0.1 or the link http://meuintelbras.local ) and navigate to the menu Wi-Fi Network Settings>Access Point.

  • Page 13: Internet Settings

    WAN IP Address Shows the IP address of the WAN ( Internet port) of the router. Shows the current version of the router software. ACtion RG 1200 periodically checks for new Firmware version firmware versions; if a new version is available, a warning is displayed on the screen Internet Status.

  • Page 14: Wi-Fi Network Settings

    From the menu Wi-Fi Network Name and Password you can change the main settings of your Wi-Fi network. Since ACtion RG 1200 operates in two frequency ranges, 2.4 GHz and 5 GHz, you can configure each separately. If you don't want to have a Wi-Fi network in one of these two frequencies, you can disable the 2.4 GHz network using the button Wi-Fi 2.4 GHz network and disable the 5 GHz network using the button Wi-Fi 5 GHz network .
  • Page 15 Wi-Fi Network Scheduling Wi-Fi scheduling configuration screen In the menu Wi-Fi Network Scheduling you can schedule a time to turn off your Wi-Fi network. Schedu- ling will only work if the system time is synchronized with the Internet. You can check the system time in System settings>Time settings .
  • Page 16 Transmission power configuration screen In the menu Transmission Power you can configure the signal strength of the ACtion RG 1200 for the frequencies of 2.4 GHz and 5 GHz. Use High Power if you want the router to operate at its maximum range. If you are still having problems with the signal range, we recommend checking your router’s installation location as described in the item Cui-...
  • Page 17 » Physical Button (PBC): if the device you wish to connect to your Wi-Fi network has a WPS , follow the procedure: 1. Press the button RST/WPS (one click only) located on the back of your ACtion RG 1200. Verify that the product’s Wi-Fi LED will flash slowly, indicating that the network is available for WPS connection, for about 2 minutes.

  • Page 18: Network For Visitors

    4.6. Network for visitors Network configuration screen for visitors In the menu Network for visitors you can configure a separate network for visitors. With this you do not need to give your main Wi-Fi network password to other people. » 2.4 GHz Wi-Fi network name: the name you want for your 2.4 GHz Wi-Fi network, for example, Visitors . This field allows you to create a name with up to 32 characters.

  • Page 19: Parental Control

    4.7. Parental control Parental control configuration screen In the menu Parental control , it is possible to configure the time of access to the internet and the websites that each device will be able to access. When accessing the menu Parental Control , a list of connected devices will be displayed, informing the name, MAC address, active time and options for each device.

  • Page 20: Ipv6

    Edit screen of a device in parental control When click on Save the device will already be controlled as configured above. Note: if any device is not appearing in the list you can add it manually by clicking Add, the MAC address of the device is required.
  • Page 21 » Static IPv6: use this mode if your Internet access is provided via a static IPv6 address. All information for the confi- guration in this mode must be provided by your Internet operator. » Obtain a Stateful address: if your operator or ISP delivers the address via DHCPv6 Stateful, check this option. »...

  • Page 22: Advanced Settings

    4.9. Advanced settings The following describes the options available in the menu Advanced settings of the ACtion RG 1200 web interface. Band control Band control configuration screen Band control allows you to set your Internet speed use priorities. To enable band control, go to Advanced settings>Band control. When doing this, the following options will be available: »...
  • Page 23 To enable Power Save Mode, go to the menu Advanced Settings>Energy saving mode, enable the option Energy saving mode and choose the desired time in the option Energy saving time. By default the activation of the saving will be delayed while you have users online .
  • Page 24 The MAC Address Filter allows you to control Internet access to certain devices on your network, directly on your router. The blocking is done through the MAC address of the device (smartphone, tablet, computer, etc.) that you want to block or allow. »...
  • Page 25 Static route Static route configuration screen In the menu Static Route you can add routes to other networks you wish to access. In addition, you can view the default routes created by the system. To add a static route, fill in the fields as follows: »...
  • Page 26 Port forwarding configuration screen Port forwarding is used to release Internet access to specific ports of your local area network (LAN) devices. This feature can be accessed through the menu Advanced Settings>Port forwarding in the ACtion RG 1200 web con- figuration interface.

  • Page 27: System Settings

    UPnP . In the same menu you can see which applications and devices are being forwarded via UPnP request. 4.10. System settings The following describes the options available in the menu System Settings of the ACtion RG 1200 web interface. LAN settings LAN settings screen In the menu LAN Settings you can change the following settings: »...
  • Page 28 » DHCP Server: allows to enables or disables the DHCP server in the LAN of the router. When disabling the DHCP server, you must configure an IP address in each device connected to the router. » IP Address interval: the DHCP server will deliver to the devices connected to the router an IP address within the specified range.
  • Page 29 On this screen, you can select the time zone of your region and view the current router time. The system date and time will be updated when ACtion RG 1200 has Internet access. Note: Brasilia time zone is GMT-03:00, Amazonas GMT-04:00, Acre GMT-05:00 and Fernando de Noronha GMT-02:00.
  • Page 30 1. Plug the router into the outlet and wait for it to start (SYS led flashing); 2. Press the button RST/WPS , located on the back of the ACtion RG 1200, for about 20 seconds until the LEDs light up (1...
  • Page 31 To generate the file with the backup of your router settings just click the button Backup and then confirm the operation. The file will be downloaded according to your web browser settings and can be used to restore your ACtion RG 1200 when needed.
  • Page 32 System Status Through this option various information related to the operation of ACtion RG 1200 is displayed. This same information is accessible by clicking on the router figure in the Internet Status menu page. System Logs The logs page displays information other than the events that occurred during the router’s operating time.

  • Page 33: Frequently Asked Questions (Faq)

    Restore the factory settings by pressing the button RST/WPS on the back of What can I do if I forget the password to access the web interface? the ACtion RG 1200 for about 20 seconds until the leds light up (1 second) and turn off afterward.

  • Page 34: Warranty Term

    7. Intelbras is not responsible for the installation of this product and also for any attempts of fraud and/or sabotage on its products. Keep software and application updates, if any, up to date, as well as network protections necessary to protect against hackers.
  • Page 35 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported in Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.20 CNPJ 82.901.000/0014-41 –...
