  • Page 1 User guide ACtion RF 1200...

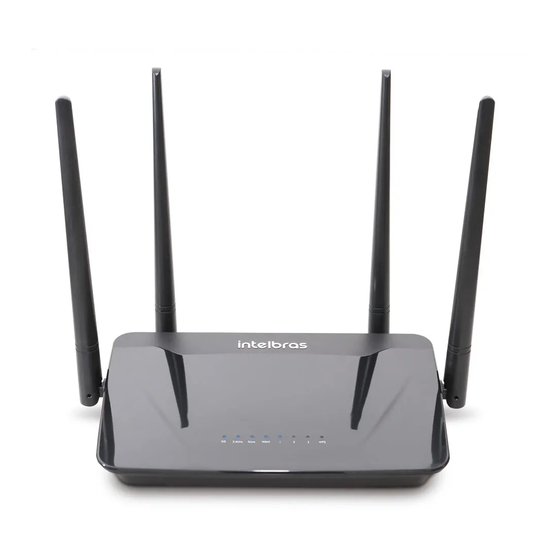

  • Page 2 Congratulations, you have just purchased a product with Intelbras quality and security. The Wi-Fi router ACtion RF 1200 provides a complete solution for home networks. With it you can share Internet access with multiple devices in a high-speed wireless network. It can be installed and managed via the web interface or via...

  • Page 3: Care And Safety

    Care and safety Adjust the position of the an- tennas; normally the vertical position is the most indicated. Prefer to install your router in the central part of the environ- ment and preferably in a higher location, for example on top of a furniture.

  • Page 4: Table Of Contents

    Summary Care and safety 1. Technical specifications 2. Accessories 3. Installation 4. Configuration 4.1. Configuration via installation wizard.............7 4.2.

  • Page 5: Technical Specifications

    1. Technical specifications Hardware 4 fixed antennas of 5 dBi 3 LAN ports (100 Mbps each) 1 Internet port (100 Mbps) Realtek® RTL8197FN + RTL8812BRH Chipset Flash Memory 8 MB RAM memory 64 MB Wireless parameters Standards IEEE 802.11a/b/g/n/ac Radio mode MU-MiMo Mode of operation AP Router / Wireless Repeater / Wireless Client / Access Point...

  • Page 6: Accessories

    INTELBRAS or INTELBRAS_5G , after performing steps 2 and 3 . » To access the 5GHz Wi-Fi network, your devices must support this technology. If in doubt, please refer to the manufacturer’s manual and check for compatibility with the same technologies as ACtion RF 1200.

  • Page 7: Configuration

    4. Configuration On your computer, open your web browser (we recommend using the most current versions of Google Chrome , Mozil- ® ) and go to http://10.0.0.1 or http://meuintelbras.local/ as shown in the following image. la Firefox or Microsoft Edge ®...
  • Page 8 1. Fill in the Wi-Fi Network Name field with the name you want for your Wi-Fi network, for example, My Network . This field by default is filled in with the name INTELBRAS , but can be changed to any name up to 29 characters long;...

  • Page 9: Configuration In Other Scenarios For Product Use

    Final screen of the installation wizard Congratulations! Your router is already configured and ready to access the Internet. Important: if you are accessing your router via Wi-Fi, wait until it applies the settings and then connect to your new network, which was created in the previous steps. 4.2.
  • Page 10 Wi-Fi Network Settings>Wi-Fi Network Name and Password ; 8. If you want the ACtion RF 1200 to repeat the same SSID and password as your main network, go to the web page at http://meuintelbras.local (item 4.5. Wi-Fi network settings ) and configure the Wi-Fi network with the same SSID and...
  • Page 11 Wireless client . In this mode of operation, you will not need to connect the network cable to the port WAN of ACtion RF 1200. The product will connect via Wi-Fi to an existing network.

  • Page 12: Internet Status

    Wireless client configuration screen Access point With this mode, the product will not perform routing, but will only serve to provide Wi-Fi and cable access to an existing network. In this use scenario, the port WAN will work as a LAN port. To use the mode Access Point , you will need to access the product's web configuration interface (through the IP address 10.0.0.1 or the link http://meuintelbras.local ) and navigate to the menu Wi-Fi Network Settings>Access Point.

  • Page 13: Internet Settings

    WAN IP Address Shows the IP address of the WAN ( Internet port) of the router. Shows the current version of the router software. ACtion RF 1200 periodically checks for new Firmware version firmware versions; if a new version is available, a warning is displayed on the screen Internet Status.
  • Page 14 From the menu Wi-Fi Network Name and Password you can change the main settings of your Wi-Fi network. Since ACtion RF 1200 operates in two frequency ranges, 2.4 GHz and 5 GHz, you can configure each separately. If you don't want to have a Wi-Fi network in one of these two frequencies, you can disable the 2.4 GHz network using the button Wi-Fi 2.4 GHz network and disable the 5 GHz network using the button Wi-Fi 5 GHz network .
  • Page 15 Wi-Fi Network Scheduling Wi-Fi scheduling configuration screen In the menu Wi-Fi Network Scheduling you can schedule a time to turn off your Wi-Fi network. Schedu- ling will only work if the system time is synchronized with the Internet. You can check the system time in System settings>Time settings .
  • Page 16 Transmission power configuration screen In the menu Transmission Power you can configure the signal strength of the ACtion RF 1200 for the frequencies of 2.4 GHz and 5 GHz. Use High Power if you want the router to operate at its maximum range. If you are still having problems with the signal range, we recommend checking your router’s installation location as described in the item Cui-...
  • Page 17 » Physical Button (PBC): if the device you wish to connect to your Wi-Fi network has a WPS , follow the procedure: 1. Press the button RST/WPS (one click only) located on the back of your ACtion RF 1200. Verify that the product’s Wi-Fi LED will flash slowly, indicating that the network is available for WPS connection, for about 2 minutes.

  • Page 18: Network For Visitors

    Note: for the Beamforming+ function to work correctly, the wireless devices that will connect to the Wi-Fi network 5 GHz of ACtion RF 1200 must support Beamforming+ function. Please refer to the instructions for use or the manu- facturer of your devices if you need more information.

  • Page 19: Parental Control

    password to connect to the visitors network. Up to 63 characters are allowed in this field. » Validity: inform for how many hours you want the visitors network to be available, after that time the visitors network will be disabled. If you want the visitors network to be always available, select the option Always . »...

  • Page 20: Ipv6

    » Internet accessible at: choose the time when the device will be able to access the internet. » From: choose the days on which the device can access the internet at the time configured in the option Internet acces- sible at . »...
  • Page 21 WAN IPv6 configuration screen The menu WAN IPv6 settings groups the settings related to your IPv6 Internet connection. Below we will explain each available option. » IPv6: allows you to enable/disable IPv6 on the Internet port of the router. » Connection type: there are 3 possible connection modes: »...

  • Page 22: Advanced Settings

    DNS servers. When you finish the settings, click on the button Save to apply the changes. 4.9. Advanced settings The following describes the options available in the menu Advanced settings of the ACtion RF 1200 web interface. Band control...
  • Page 23 Band control configuration screen Band control allows you to set your Internet speed use priorities. To enable band control, go to Advanced settings>Band control. When doing this, the following options will be available: » Device name: displays the device name and its IP address. The device name can be changed by clicking »...
  • Page 24 LED control configuration screen In the menu LED Control you can control the LEDs (front lights) of the router. The following options are available: » Always on: Normal operation of the LEDs as indicated in the LED Description of item 1. Especificações técnicas . »...
  • Page 25 » Blocked devices: identification of the blocked device (option displayed when the selected filter type is Block listed ). Enter a name to help you identify which device is this. » Allowed devices: device identification allowed (option displayed when the selected filter type is Allow listed ). Enter a name to help you identify which device is this.
  • Page 26 Static route configuration screen In the menu Static Route you can add routes to other networks you wish to access. In addition, you can view the default routes created by the system. To add a static route, fill in the fields as follows: »...
  • Page 27 Port forwarding configuration screen Port forwarding is used to release Internet access to specific ports of your local area network (LAN) devices. This feature can be accessed through the menu Advanced Settings>Port forwarding in the ACtion RF 1200 web con- figuration interface.

  • Page 28: System Settings

    UPnP . In the same menu you can see which applications and devices are being forwarded via UPnP request. 4.10. System settings The following describes the options available in the menu System Settings of the ACtion RF 1200 web interface. LAN settings LAN settings screen In the menu LAN Settings you can change the following settings: »...
  • Page 29 » Subnet mask: LAN subnet mask of the router. » DHCP Server: allows to enables or disables the DHCP server in the LAN of the router. When disabling the DHCP server, you must configure an IP address in each device connected to the router. »...
  • Page 30 On this screen, you can select the time zone of your region and view the current router time. The system date and time will be updated when ACtion RF 1200 has Internet access. Note: Brasilia time zone is GMT-03:00, Amazonas GMT-04:00, Acre GMT-05:00 and Fernando de Noronha GMT-02:00.
  • Page 31 1. Plug the router into the outlet and wait for it to start (SYS led flashing); 2. Press the button RST/WPS , located on the back of the ACtion RF 1200, for about 20 seconds until the LEDs light up (1...
  • Page 32 Firmware update Firmware update screen When an update is available, ACtion RF 1200 will display a warning when accessing the configuration web interface. To update, simply click Yes and then Update . New version available message To update your router firmware manually, you must go to the menu System Settings>Firmware update and choose the...
  • Page 33 To generate the file with the backup of your router settings just click the button Backup and then confirm the operation. The file will be downloaded according to your web browser settings and can be used to restore your ACtion RF 1200 when needed.

  • Page 34: Frequently Asked Questions (Faq)

    What can I do if I forget the Restore the factory settings by pressing the button RST/WPS on the back of the ACtion RF 1200 for about 20 seconds until the leds light up (1 password to access the web second) and turn off afterward.

  • Page 35: Warranty Term

    7. Intelbras is not responsible for the installation of this product and also for any attempts of fraud and/or sabotage on its products. Keep software and application updates, if any, up to date, as well as network protections necessary to protect against hackers.
  • Page 36 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported in Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.20 CNPJ 82.901.000/0014-41 –...
