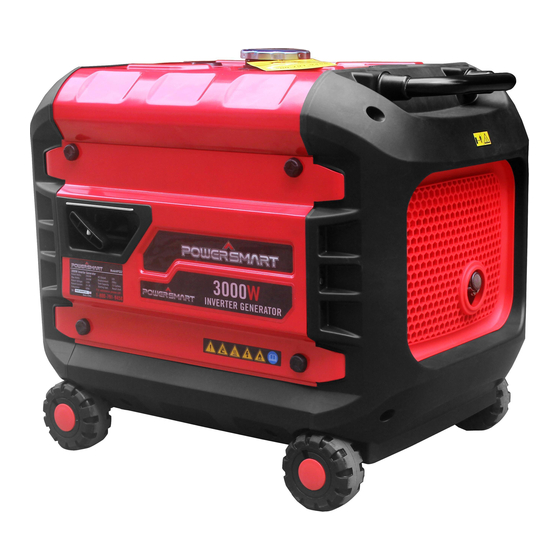

- Page 1 INSTRUCTION MANUAL 3000W Inverter Generator Model # PS52 Have product questions or need technical support? Please feel free to contact us! Website: www.Amerisuninc.com Toll free: 1-800-791-9458 Mon-Fri 9-5 EST Email: support@amerisuninc.com...
-
Page 3: Table Of Contents
Troubleshooting…………………………………………………………. Wiring diagram…………………………………………………………. Exploded view & parts list……………………………………………… Warranty………………………………………………………………… TECHNICAL DATA 3500W Generator Model # PS52 Engine type: 4 stroke, OHV, single cylinder with forced air cooling system Spark plug gap: 0.7-0.8 mm (0.028-0.031 in) Spark plug torque: 1/2-3/4 turn after gasket contacts base or 15 ft.lb... -
Page 4: Introduction
INTRODUCTION ® Thank You for Purchasing a PowerSmart Product. This manual provides information regarding the safe operation and maintenance of this product. Every effort has been made to ensure the accuracy of the ® information in this manual. PowerSmart reserves the right to change this product and specifications at any time without prior notice. -
Page 5: General Safety Procedures
GENERAL SAFETY PROCEDURES For any questions regarding the hazard and safety notices listed in this manual or on the product, please call (800) 791-9458 Mon-Fri 9-5 EST before using the generator. DANGER: CARBON MONOXIDE Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS ® SAVE THESE INSTRUCTIONS – This manual contains important instructions for the PowerSmart 3500W generator that should be followed during installation and maintenance of the generator. Generators vibrate in normal use. During and after the use of the generator, inspect both the generator as well as extension and power supply cords for damage resulting from vibration. -
Page 7: Knowing Your Generator
KNOWING YOUR GENERATOR Use the illustrations below to become familiar with the locations and functions of the various components and controls of this generator. -
Page 8: Generator Preparation
GENERATOR PREPARATION The following section describes steps necessary to prepare the generator for use. If after reading this section, you are unsure about how to perform any of the steps please call (800) 791-9458 Mon-Fri 9-5 EST for customer service. Failure to perform these steps properly can damage the generator or shorten its lifespan. -
Page 9: Step 2 Add Gasoline
Step 2 - ADD GASOLINE WARNING: This generator may emit highly flammable and explosive gasoline vapors, which can cause severe burns or even death if ignited. A nearby open flame can lead to explosion even if not directly in contact with gasoline. Use fresh (within 30 days from purchase), lead-free gasoline with a minimum of 87 octane rating. -
Page 10: Starting The Generator
STARTING THE GENERATOR Before starting the generator, make sure you have read and performed the steps in the “Generator Preparation” section of this manual. If you are unsure about how to perform any of the steps in this manual, please call (800) 791-9458 Mon-Fri 9-5 EST or email: support@amerisuninc.com for customer service. -
Page 11: Stopping The Generator
STARTING THE ENGINE To start the generator, perform the following steps: 1. Unplug all electrical devices from the generator during ignition. Otherwise it will be difficult for the engine to start. 2. Check that the generator is properly grounded (Refer to “GROUND THE GENERATOR”). -
Page 12: Using The Generator
Model Rated Wattage Surge Wattage PS52 2800W 3000W The rated (running) wattage is the wattage the generator can produce on a continuous basis. The surge wattage is the maximum amount of power the generator can produce for an extremely short period of time (seconds). - Page 13 Tool or appliance Rated watts Additional surge watts Electric water heater (40 Gal) 4000 Hot plate 2500 Radial arm saw 2000 2000 Electric stove (each element) 1500-2800 Circular saw 1500 1500 Air compressor (1 HP) 1500 3000 Window air conditioner 1200 1800 Miter saw...
-
Page 14: Maintenance
ECO-THROTTLE SYSTEM With the switch in the ON position, engine speed is automatically lowered when loads are reduced (under 2000W). When appliances are turned ON or reconnected, the engine returns to the proper speed to power the electrical load. In the OFF position, the Eco-Throttle system does not operate. Appliances with large start-up power demands may not allow the engine to reach normal operating rpm when they are connected to the generator. - Page 15 CHECKING THE OIL The oil capacity of the engine crankcase is 20 fl. oz. Check the oil level of the generator according to the Recommended Maintenance Schedule above. The generator is equipped with an automatic shutoff to protect it from running on low oil. The generator should be checked before each use for proper oil level.
- Page 16 AIR CLEANER MAINTENANCE Routine maintenance of the air cleaner helps maintain proper airflow to the carburetor. Occasionally check that the air cleaner is free of excessive dirt. Refer to Recommended Maintenance Schedule page 16. For air cleaner detail: 1. Unhinge the clasps at the top and bottom of the air cleaner cover. 2.
-
Page 17: Storage & Transport Procedures
STORAGE & TRANSPORT PROCEDURES CAUTION: Never place any type of storage cover on the generator while it is still hot. If the generator is being stored for short periods of time (30 to 60 days), add stabilized fuel to the fuel tank until full. -
Page 18: Wiring Diagram
WIRING DIAGRAM... -
Page 19: Exploded View & Parts List
EXPLODED VIEW AND PARTS LIST Engine exploded view... - Page 20 Engine parts list Part# Stock # Description Part# Stock # Description 012030000107 Crankcase 012030300006 Carburetor 012020005103 Oil sensor 026030002500 Stepper motor support 511050601201 Flange bolt M6×12 026030002600 Stepper motor connector 521010010501 Bearing 6205 026030002700 Stepper motor spring 012030100010 Crankshaft 012620006300 Stepper motor 012030200000 Camshaft...
- Page 21 Generator exploded view...
- Page 22 Generator parts list Part# Stock # Description Part# Stock # Description 015030000077 Engine 511130601801 Flange bolt M6×18 026030500001 Chassis 026030001426 Rear cover plate 511050601201 Flange bolt M6×12 026030001501 Knob 51302060000003 Spring washer 6 026030001601 Handle 51301060000103 Washer 6 026030001700 Handle sleeve 512040800001 Flange nut M8 026030001800...
- Page 23 Limited Warranty, you must return the entire power tool product; transportation prepaid, to PowerSmart Include a legible copy of the original receipt, which lists the date of purchase (month and year) and the name of the company purchased from.
