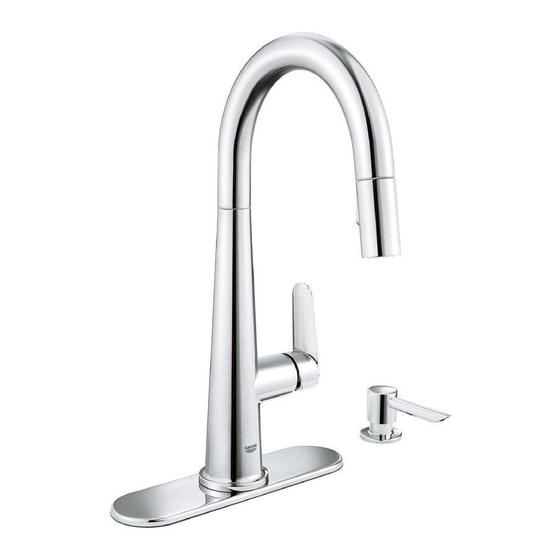

- Page 1 30366000 / 30366DC0 VELETTO Pull-Down Kitchen Faucet Robinet de cuisine tirer vers le bas Llave para cocina de rociador hacia abajo OWNERS MANUAL MANUEL DU PROPRIÉTAIRE MANUAL DEL USUARIO...
- Page 2 4- 15/16" (125 mm) 16-5/16" (414 mm) 3-13/16" Mounting Deck (97 mm) Thickness 2-3/4" (70 mm) Max. 8-7/8" (225 mm) 7-13/16" (198 mm) 9-3/4 (247 mm)
-
Page 3: Instructions D'installation
24" Installation Instructions Instructions d’installation Instrucciones de Instalación 1. Install Seal (A), Apply Putty (B) with Escutcheon, or install faucet 1. Instale el empaque (A), aplique la masilla (B) con chapetón 1. Installez le joint (A), appliquez le mastic (B) avec l’écusson, ou installez o instale la llave sin chapetón (D). - Page 4 Parts/Assembly 30366000/DCO Veletto Pull-Down Kitchen Faucet Ensemble/Pièces 1 – 46963000 Cartridge, Cartouche, Cartucho 2 – 48398000/DCO Handle kit, Ensemble de Unidad/de Partes poignées, Kit de la manija 3 – 48392000 Spray hose, Tuyau de pulvérisation, Manguera de pulverización 4 – 48393000/DCO Pull-down spray head, Jet amovible, Rociador extensible 5 –...
- Page 5 Limited Warranty supplement. Vouz trouverez les instructions d'entretien En el suplemento Garantía a Limitada de ce mitigeur dans le supplément Garantie encontrará las instrucciones relativas al Limitée. cuidado de esta batería. +1 800 4447643 +1 888 6447643 us-customerservice@grohe.com info@grohe.ca www.grohe.com...
