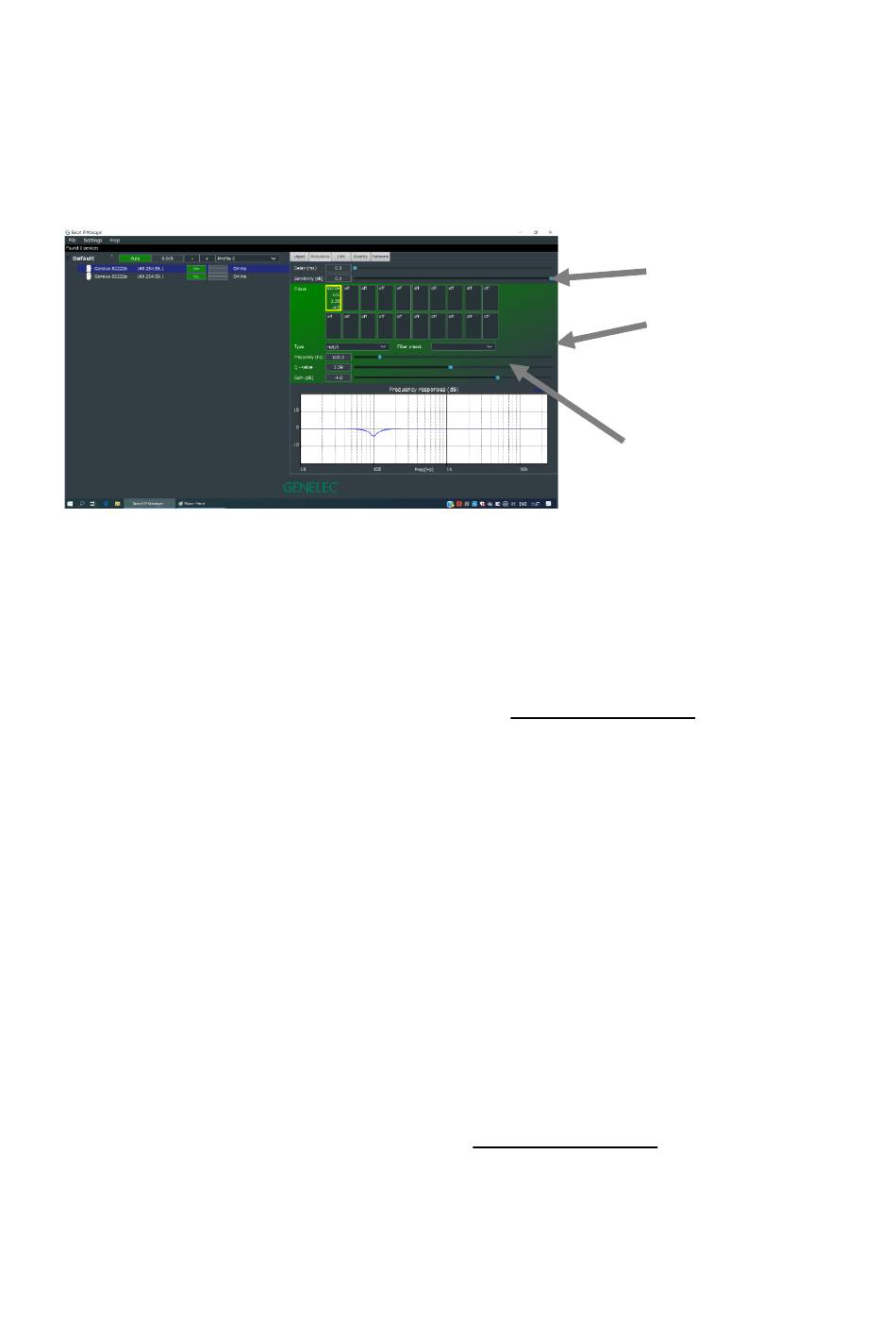

8 EDITING ACOUSTIC SETTINGS

Select a Smart IP loudspeaker. Click the 'Acoustics' tab on the right pane. To set
several loudspeakers simultaneously, select all speakers (left side) and then
adjust.

APPLICATION PROGRAMMING INTERFACE (API)

4420A Smart IP loudspeaker has a set of API commands that can be used to
enable control of 4420A using a house automation system or similar IP network
connected device. The document describing the API command and how to use
them is available from Genelec. Please visit www.genelec.com.

MOUNTING

The two primary mounting points are on the rear side. They have metric M6 x 10
mm holes (thread type is metric M6, thread depth is 10 mm). Use these for
mounting brackets or the keyhole wall mount adapter.
On the base of the loudspeaker carries a 3/8 in UNC-threaded hole compatible
with a certain standard microphone stands. This can be used for additional
support. The UNC thread is not compatible with metric threads.
Pay attention to mounting screw lengths. Do not use long screws exceeding the
depth of the hole as this can destroy the threads in the mounting points. Do not
over-tighten. Do not use very short screws as the thread length is not enough to
hold the weight of the speaker.
See Genelec Accessories Catalogue on www.genelec.com for a complete list of
mounting hardware options.
Set 'delay' and
'sensitivity' as
needed.
Click on a filter
button, select 'filter
type' and adjust
parameters.
Select 'preset' to
assign all parameters
for selected speaker.
