probst WEZ Series Operating Instructions Manual page 50

Grab for angular concrete products

Table of Contents

Available languages

Operation

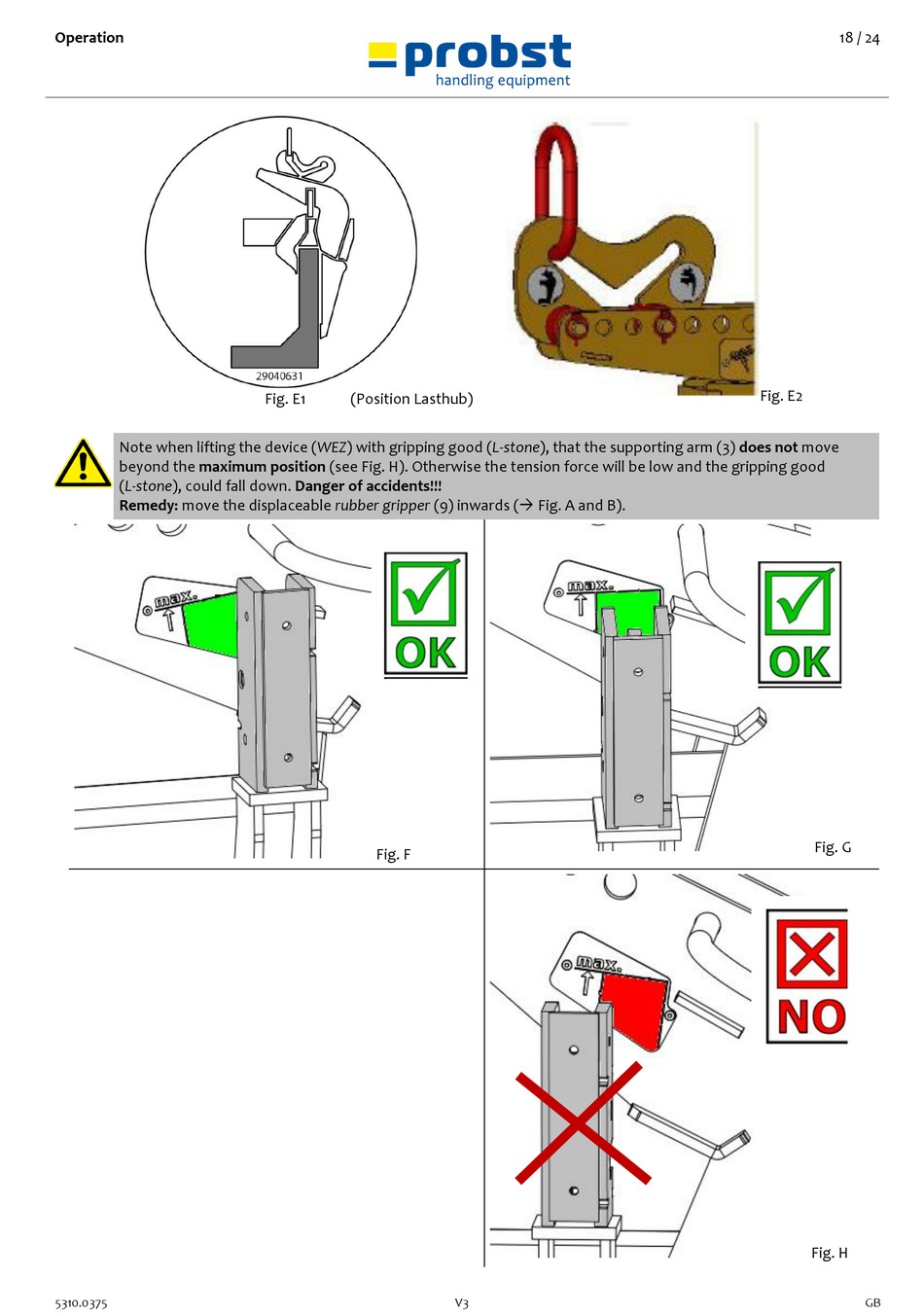

Note when lifting the device (WEZ) with gripping good (L-stone), that the supporting arm (3) does not move

beyond the maximum position (see Fig. H). Otherwise the tension force will be low and the gripping good

(L-stone), could fall down. Danger of accidents!!!

Remedy: move the displaceable rubber gripper (9) inwards ( Fig. A and B).

5310.0375

Fig. E1

(Position Lasthub)

Fig. F

18 / 24

Fig. E2

Fig. G

Fig. H
