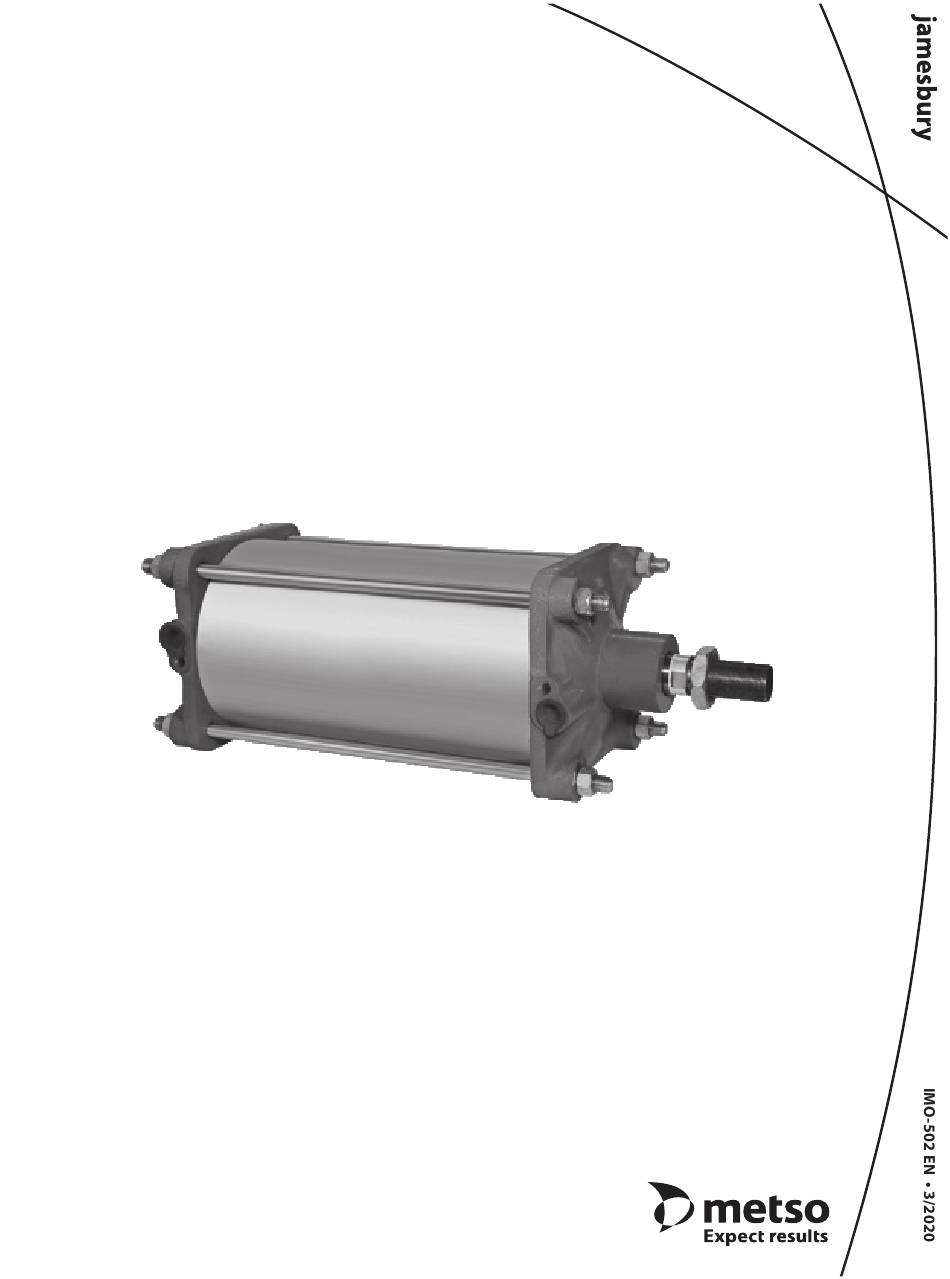

- Page 1 JAMESBURY® EASYFLOW PNEUMATIC CYLINDER CC SERIES (Ø200 – Ø350) Installation, Maintenance and Operating Instructions...
-
Page 2: Table Of Contents
These instructions provide information about safe handling and operation of the valve. If you require additional assistance, please contact the manufacturer or manufacturer’s representative. Addresses and phone numbers are printed on the back cover. See also www.metso.com/valves for the latest documentation. SAVE THESE INSTRUCTIONS! IMO 3/20... -
Page 3: Introduction
IMO-502 EN INTRODUCTION Definitions Thank you for choosing METSO product. Each product WARNING: is fully inspected after the production to offer you the highest quality. In order to fully utilize the product, we IF NOT OBSERVED, USER INCURS A HIGH RISK OF SEVERE DAMAGE TO PRODUCT AND/OR FATAL INJURY TO PERSONNEL. -
Page 4: Installation Procedure
IMO-502 EN INSTALLATION PROCEDURE Align properly the rod axis with the load and direction of movement when connecting. If not properly aligned, the rod and tube may be twisted and damage may be The equipment must be installed in the accordance with the caused due to wear on areas such as inner tube surface, laws, guide lines and rules applicable within the country. -
Page 5: Maintenance
IMO-502 EN Install, operate and maintain as per the instructions and recommendations of this manual. Any deviation from the above will cease the responsibilities of RMEBS. Verify the following things for that particular operation. Failure Verify Remedy 1. Compressed air is not Make it available available NOTE: In case of single acting cylinder, cushioning effect... -
Page 6: Front Cover Disassembly
IMO-502 EN NOTE: It is advisable to replace all the rubber parts using Clean it with liquid soap solution. After drying apply genuine RMEBS spare kit. Numbers in parentheses, ( ) indicate grease on rubber parts. Replace these rubber parts. the bubble number (reference number) used on the RMEBS Pull the piston rod (5) with piston subassembly outside Assembly details and Part List. -
Page 7: Rear Cover Disassembly
IMO-502 EN Observe damage of teflon strip(11), if necessary replace it. Place Cushioning seal (15) and o-ring (17) on its groove. Place o-ring (19) on cushioning screw (12), assemble Clean it with liquid soap solution. After drying apply the cushioning screw on rear cover. grease on rubber parts. -
Page 8: Front Cover Assembly
IMO-502 EN Apply drop of 7649 primer (dryer) on internal threads of piston rod. Wait for a minute and again apply a drop of 242 loctite on same threads. Now tighten the piston rod (5) with the help of SHC screw (8) by using washer (13). Insert this piston rod assembly carefully into the tube (3). -
Page 9: Exploded View
IMO-502 EN EXPLODED VIEW PART LIST Sr.No Name Quantity FRONT COVER REAR COVER CYLIDER TUBE PISTON PISTON ROD TIE ROD SHC SCREW BUFFER CAP PISTON STRIP CUSHIONING PLUG WASHER ROD SEAL CUSHIONING SEAL SEALS SEALS BUSH O-RING IMO 3/20... -
Page 10: Packaging & Store
IMO-502 EN PACKAGING & STORE When not in use, CYLINDER ASSEMBLY should be kept in a sealed plastic bag in a cardboard box to prevent moisture or dust from contacting product. CYLINDER ASSEMBLY should be stored in a dry place free from water and dust. - Page 11 IMO-502 EN IMO 3/20...
