See Warranty on page 6 for important information about commercial use of this product.

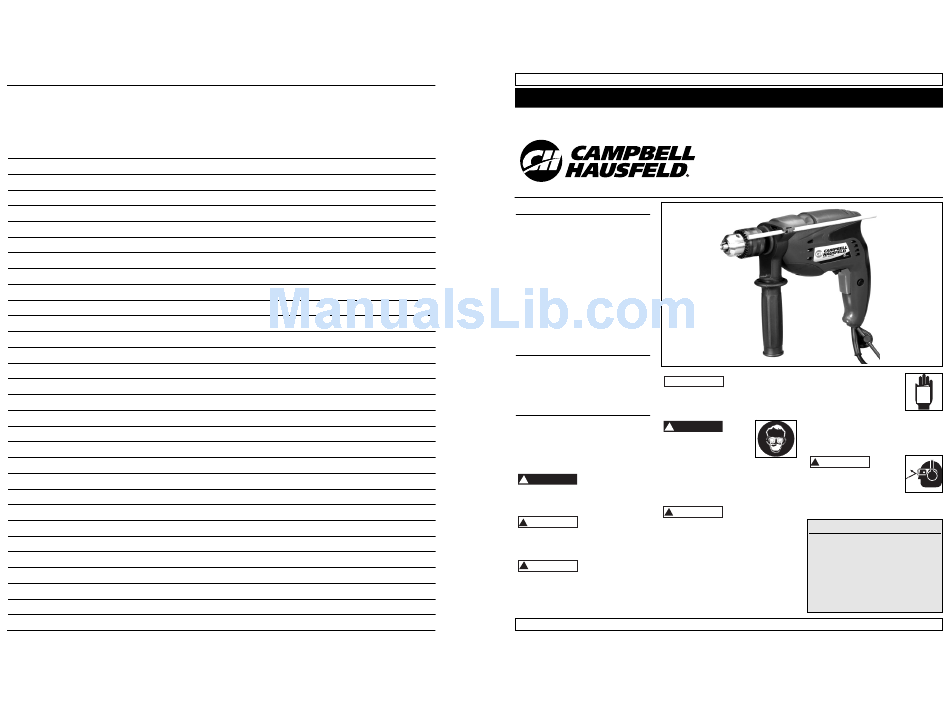

Operating Instructions and Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain
the product described. Protect yourself and others by observing all safety information. Failure to comply with
instructions could result in personal injury and/or property damage! Retain instructions for future reference.
BUILT TO LAST
Description
Hammer drills provide short, rapid
hammer thrusts at the same time the bit
turns. By adding impact to the drilling
tip, the material is actually pulverized,
increasing the efficiency of the drilling
process and keeping the tip of the bit
cooler. This hammer drill can be used in a
normal drilling mode as well. Other
features include variable-speed and
reversing controls, which provide the
ability to use the drill as a driver as well.
The depth stop offers greater control,
project versatility, and increases depth
accuracy.
Unpacking
When unpacking this product, carefully
inspect for any damage that may have
occurred during transit.
NOTICE
General Safety information, that if not followed, may
cause damage to equipment.
Information
CALIFORNIA PROPOSITION 65
This manual contains information that is
DANGER
!
very important to know and understand.
This information is provided for SAFETY create dust when you cut,
and to PREVENT EQUIPMENT PROBLEMS. sand, drill or grind
materials such as wood,
To help recognize this information,
paint, metal, concrete, cement, or other
observe the following symbols.
masonry. This dust often contains
Danger indicates
DANGER
chemicals known to cause cancer, birth
!
an imminently
defects, or other reproductive harm.
hazardous situation which, if not
Wear protective gear.
avoided, will result in death or serious
injury.
WARNING
!
Warning indicates
WARNING
! power cord contains chemicals known
a potentially
to the State of California to cause
hazardous situation which, if not
cancer and birth defects or other
avoided, could result in death or serious
reproductive harm. Wash hands after
injury.
handling.
Caution indicates a
CAUTION
!
The following safety precautions must be
potentially
followed at all times along with any
hazardous situation which, if not
other existing safety rules.
avoided, may result in minor or moderate
injury.
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
© 2006 Campbell Hausfeld/Scott Fetzer
For parts, product & service information
visit www.chpower.com
DG190600CK
Variable Speed
Hammer Drill
Notice indicates 1. Read all manuals included
important with this product
carefully. Be thoroughly
familiar with the controls
and the proper use of the
equipment.
You
2. Only persons well acquainted with
can
these rules of safe operation should
be allowed to use the tool.
WARNING
!
Safety
glasses and ear protection
must be worn during
operation.
3. Do not wear loose fitting clothing,
scarves, or neck ties in work area.
This product or its

Specifications

Tool
Voltage 120 V, 60 Hz
Chuck Size 1/2"
Max Bit Size 1/2"
Blows per Minute 42,000
RPM 0 - 2800
Power Rating 6 Amps
IN713300AV 3/06
