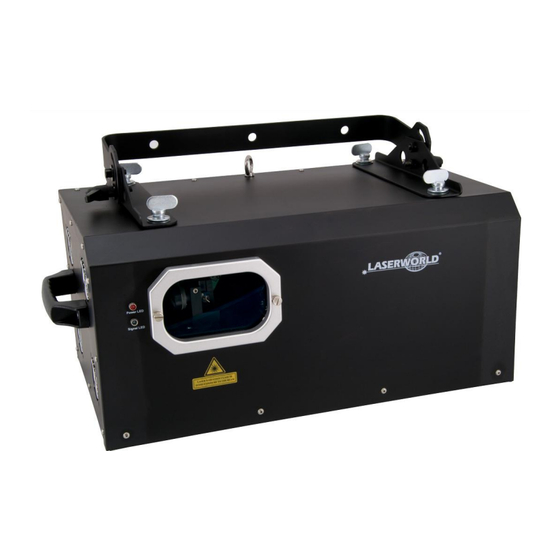

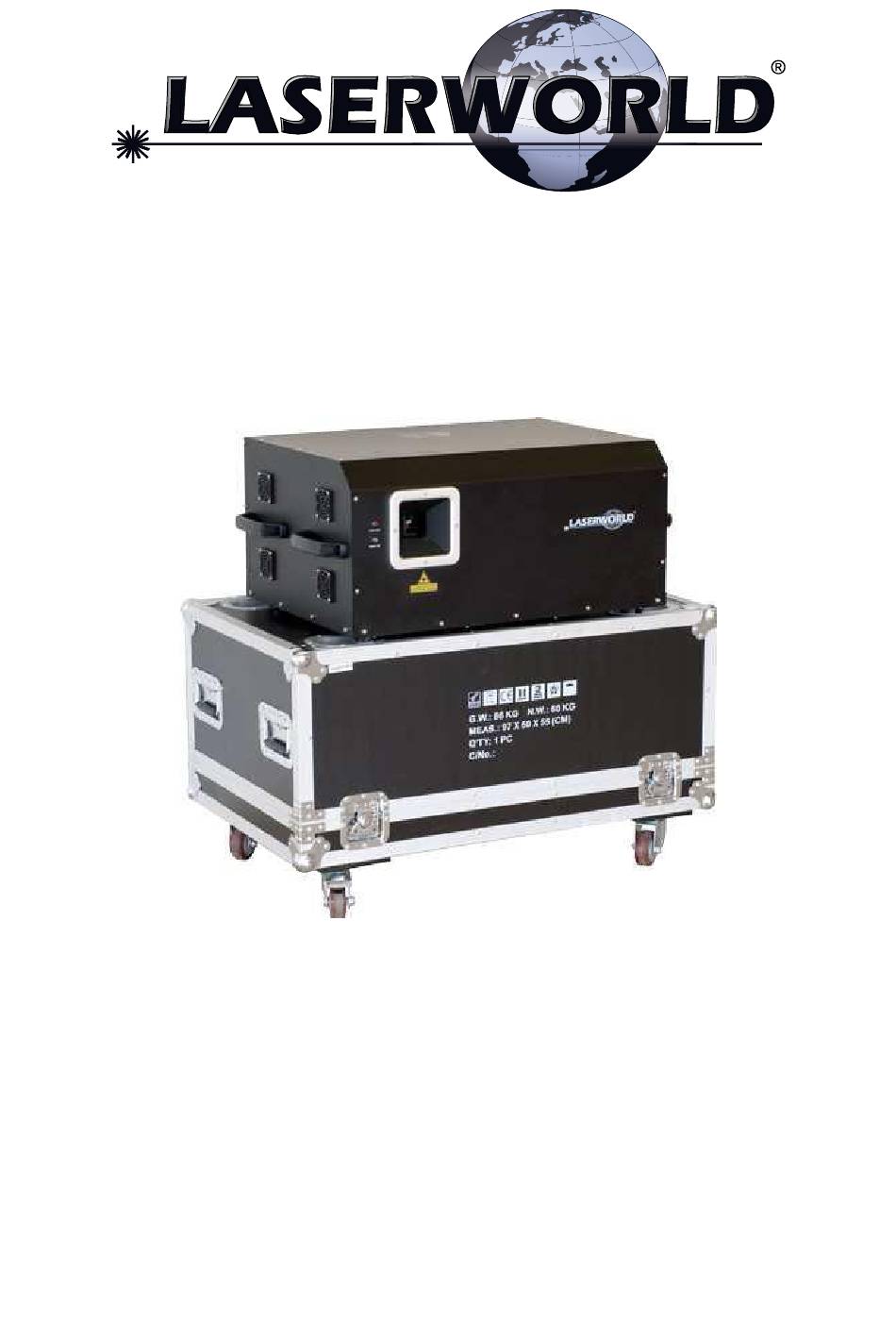

- Page 1 Laserworld Proline Series Pro-7000 RGB Manual Read carefully before using this device!
-
Page 2: Checking Parts
Manual 2 / 7 Checking parts Please check if all listed parts are included, and are not damaged. Included: 1 x Laser projector 1 x Power cable 1 x 9-pin plug 2 x key 1 x safety cord 1 x manual Safety instructions If the device has been exposed to great temperature changes, do not switch it on immediately. -
Page 3: Using The Laser
Manual 3 / 7 Keep surrounding dry and clean. This unit should be keep dry, do not use in the rain or damp and dusty environment, don’t put liquid fileld containers on the device. Projector should be put in a water-proof housing when operated outside. -
Page 4: Dmx Mode
Manual 4 / 7 “LCD display memory function“: save settings automatically. Laser: On/Off, when set to Off, laser is off in Auto/DMX mode (ILDA mode only) X/Y-Axis: mirrors projection horizontally/vertically Upside down: Display turned upside down ILDA mode When an ILDA compatible interface is connected to the laser, the laser is automatically switched to ILDA mode. Output is then controlled from a PC running software. -
Page 5: Troubleshooting
Manual 5 / 7 Patterns: 160 Scanangle: set to ca. 40° optical (60° max) Input voltage: AC 110-120, 220-240V switchable 50/60Hz Power consumption: 450W Size: 800 x 530 x 350mm (W x D x H) ... - Page 6 Laserworld cannot be made liable for damages caused by incorrect installations and unskilled operation! For service contact your dealer, or Laserworld.
- Page 7 Manual 7 / 7 Appendix: Technical diagram Revision: Apr-10...
