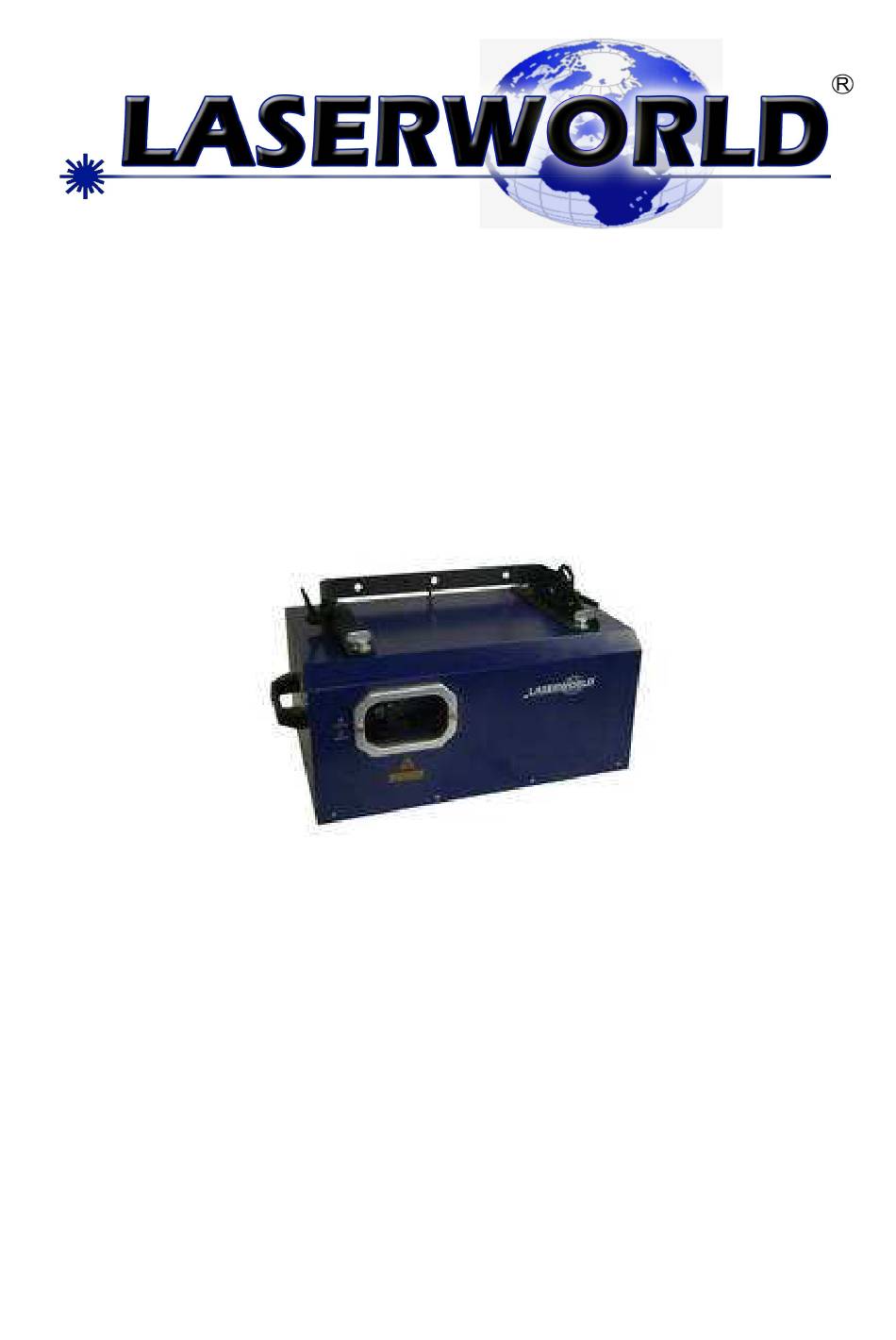

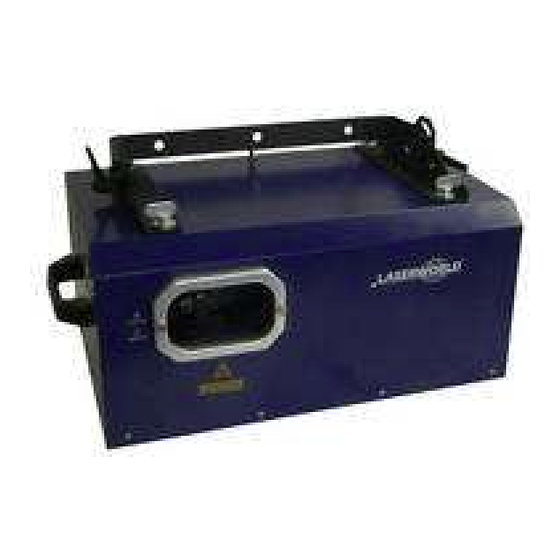

- Page 1 Pro-3000RGB User Manual Please read this manual carefully before use!
-
Page 2: Table Of Contents
Please note..........................8 EU-declaration of conformity....................9 Checking parts Please check if all listed parts are included, and are not damaged. Included: 1 x Pro-3000RGB Laser 1 x Power cable 1 x 9-pin plug 2 x key 1 x safety cord... -
Page 3: Safety Instructions
User Manual: Pro-3000RGB Page 3 of 9 SAFETY INSTRUCTIONS If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation water may damage your device. Leave the device switched off until it has reached room temperature. -
Page 4: Using The Laser
User Manual: Pro-3000RGB Page 4 of 9 Keep surrounding dry and clean. This unit should be kept dry, do not use in the rain or damp and dusty environment. Projector should be put in a water-proof housing when operated outside. -
Page 5: Ilda Mode
User Manual: Pro-3000RGB Page 5 of 9 ILDA mode When an IDLA compatible interface is connected to the laser, the laser is automatically switched to ILDA mode. Output is then controlled from a PC running software. The laser uses pins 4 and 17 of the IDLA signal to detect the presence of an ILDA interface. -
Page 6: Technical Specifications
User Manual: Pro-3000RGB Page 6 of 9 Technical specifications • Output power: typical: 3000mW, guaranteed: 2400mW, 550mW 632nm green, 200mW 473nm blue, 1650mW 650nm red • Lasersources: aircooled DPSS laser • Laser class: 4 • Modes: ILDA, DMX 512, auto, music active •... -
Page 7: Troubleshooting
User Manual: Pro-3000RGB Page 7 of 9 Troubleshooting Problem Possible reason Damaged part Replacement No power Fuse blown Fuse 09-00-3001-01 Power supply defective +-24V 16-03-0039-00 19-03-0019-00 Music mode not working Microphone defective Microphone 16-03-0001-00 Control board defective Control board 26-2A-2009LD-00... -
Page 8: Technical Diagram
Laserworld cannot be made liable for damages caused by incorrect installations and unskilled operation! -
Page 9: Eu-Declaration Of Conformity
After installing the device, an inspection and official approval is indispensable for the overall setup. The inspection must follow the european guidelines EN 60825-1 and corresponding regulations for the prevention of accidents BGV-B2. This declaration is executed on behalf of the Laserworld Pro-3000RGB manufacturer Laserworld (Switzerland) AG Oberstrasse 1 8274 Tägerwilen...
