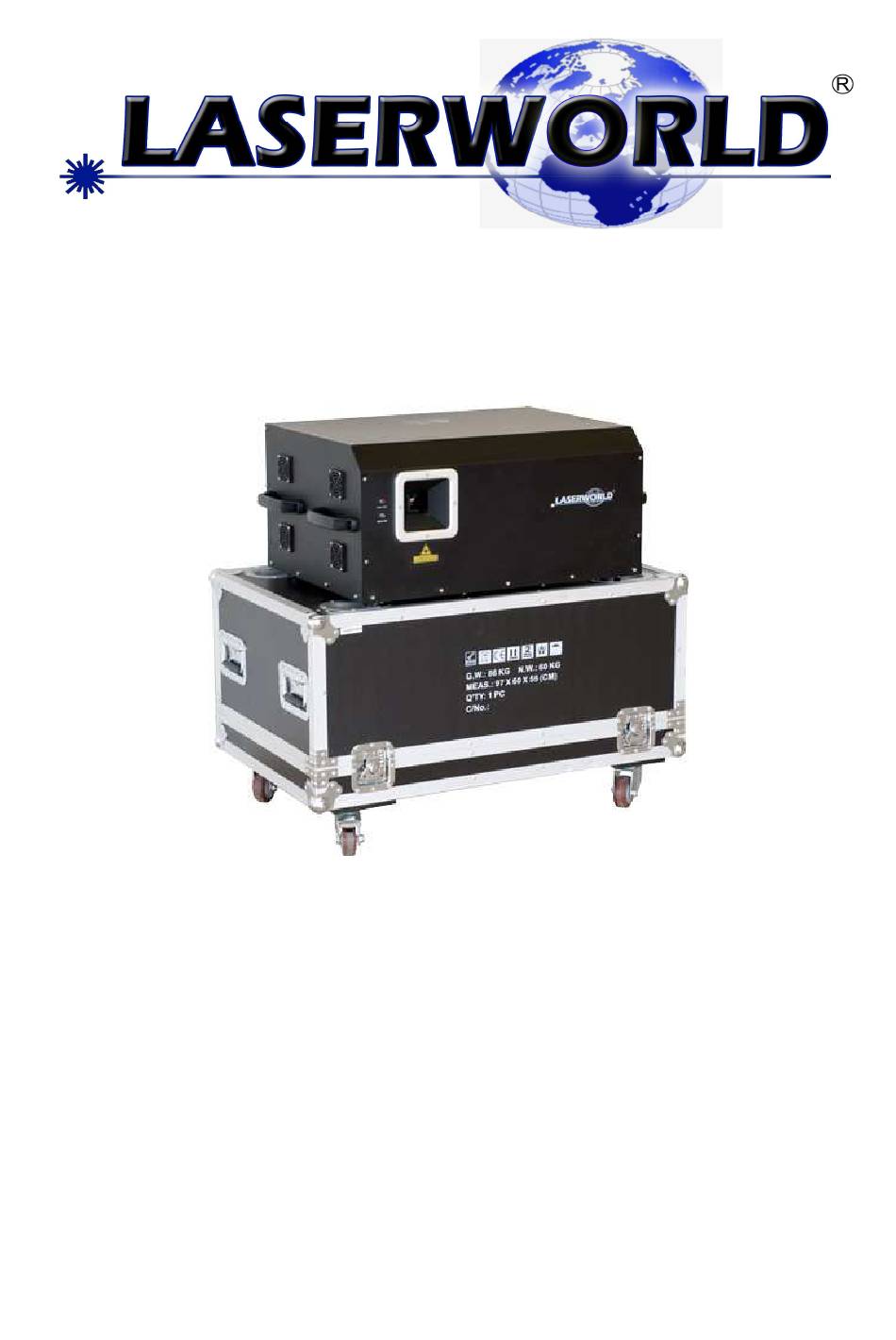

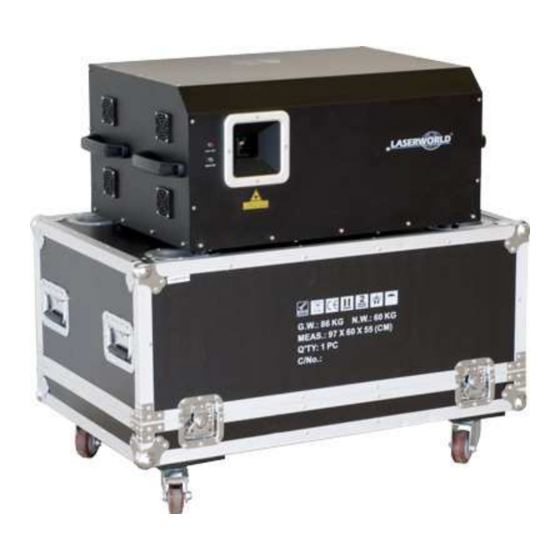

- Page 1 Pro-4000RGB User Manual Please read this manual carefully before use!
- Page 2 User manual: Pro-4000RGB page 2 of 8 Checking parts ..........................2 Safety instructions ......................... 2 .......................... 2 Installation safety OPERATING THE LASER ........................ 3 Using the laser ..........................4 Connectors ........................... 4 Control panel ..........................4 ILDA mode ........................... 4 DMX mode ............................
- Page 3 User manual: Pro-4000RGB page 3 of 8 Warning labels on the device Laser radiation Read manual before use Avoid exposure Operation by qualified To the beam personal only Laser class 4 Never direct laser Beam at people Caution of radiation...
- Page 4 User manual: Pro-4000RGB page 4 of 8 If the laser is equipped with a remote connector, connect an emergency switch to the Remote lock connector on the backside, if no emergency switch is used, insert the 9 pin dongle instead. If the laser has no remote lock, use an emergency switch in the mains connection.
- Page 5 User manual: Pro-4000RGB page 5 of 8 DMX mode The laser uses 18 DMX channels: Channel DMX512 value Funktion 0~255 0~100% Dimmer green 0~255 0~100% Dimmer blue 0~255 0~100% Dimmer 0~25 Original colour 26~51 White 52~77 Yellow 78~103 104~129 Green...
- Page 6 User manual: Pro-4000RGB page 6 of 8 • Power consumption: 450W • Size: 800 x 530 x 350 mm (W x D x H) • Weight: 69kg Laser, total: 96kg (with flightcase) • Operating temperature: 10°-35°C • Loudness: <70dB Change scanner 1.
- Page 7 User manual: Pro-4000RGB page 7 of 8 ILDA signal Pin out of the standard ILDA signal: 1 Scanner X+ -5V..+5V 14 X- +5V..-5V 2 Scanner Y+ -5V..+5V 15 Y- +5V..-5V 3 Intensity/Blanking+ 0V..+2.5V 16 Intensity/Blanking- 0..-2.5V 4 Interlock A 17 Interlock B 5 Red+ 0..2.5V...
- Page 8 Laserworld cannot be made liable for damages caused by incorrect installations and unskilled operation! For service contact your dealer, or Laserworld.
