Summary of Contents for Laserworld Pro-3500RGB

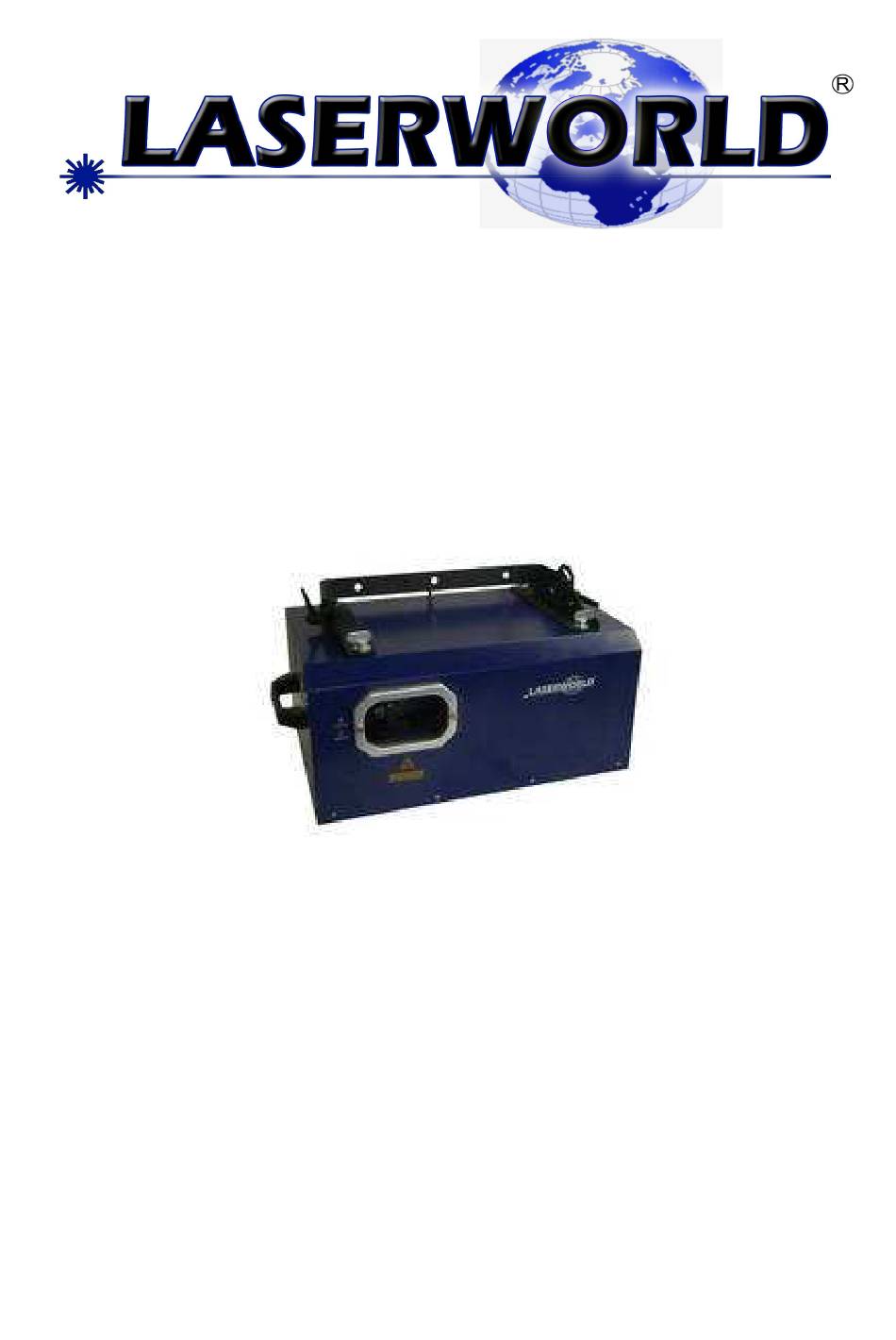

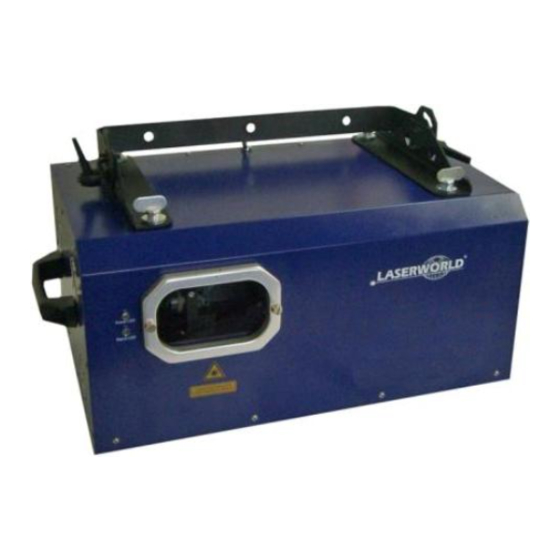

  • Page 1 Pro-3500RGB User Manual Please read this manual carefully before use!
  • Page 2: Table Of Contents

    Please note..........................9 EU-declaration of conformity....................10 Checking parts Please check if all listed parts are included, and are not damaged. Included: 1 x Pro-3500RGB Laser 1 x Power cable 1 x 9-pin plug 2 x key 1 x safety cord...
  • Page 3: Safety Instructions

    User Manual: Pro-3500RGB Page 3 of 10 SAFETY INSTRUCTIONS If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation water may damage your device. Leave the device switched off until it has reached room temperature.
  • Page 4: Using The Laser

    User Manual: Pro-3500RGB Page 4 of 10 In some countries, the operator must notify the accidence insurance and the authority for industrial safety, before operating a laser. For more information, contact the relevant authorities. Please consider that unauthorized modifications on the device are strictly forbidden due to...
  • Page 5: Ilda Mode

    User Manual: Pro-3500RGB Page 5 of 10 Operating modes: Automatic mode: built-in patterns are displayed Music active: laser is controlled from built-in microphone “DMXAddr“: DMX512 mode-. Here you can change the DMX address: “Open“: change address “Up“ & “down“: increase/decrease address “Save“: save new address...
  • Page 6: Maintenance / Cleaning

    User Manual: Pro-3500RGB Page 6 of 10 Maintenance / cleaning Always disconnect from mains before cleaning/opening the laser. Regularly clean the interior from dust, especially ensure operation of the fans. Use a sponge with alcohol, rather than wet cloth or other chemical liquid, to clean the mirrors. Be careful, even light scratches reduce the output power of the laser.
  • Page 7: Technical Specifications

    User Manual: Pro-3500RGB Page 7 of 10 Technical specifications • Output power: typical: 3500mW, guaranteed: 2650mW, 800mW 532nm green, 350mW 473 blue, 1500mW 650nm red • Lasersources: aircooled DPSS laser • Laser class: 4 • Modes: ILDA, DMX 512, auto, music active •...
  • Page 8: Troubleshooting

    User Manual: Pro-3500RGB Page 8 of 10 Troubleshooting Problem Possible reason Damaged part Replacement No power Fuse blown Fuse 09-00-3001-01 Power supply defective +-24V 16-03-0039-00 19-03-0019-00 Music mode not working Microphone defective Microphone 16-03-0001-00 Control board defective Control board 26-2A-2009LD-00...
  • Page 9: Technical Diagram

    Laserworld cannot be made liable for damages caused by incorrect installations and unskilled operation!
  • Page 10: Eu-Declaration Of Conformity

    User Manual: Pro-3500RGB Page 10 of 10 EU-declaration of conformity We hereby confirm that the following device Laserworld Pro-3500RGB complies with the essential safety requirements, laid down in the regulations of the committee to assimilate the provisions of law of all participating EU states on the...
