Disassembly Of Stand Base; Disassembly Of Net Frame Assembly - Panasonic SB-NS55P Series Service Manual

SB-NS55P
2.2.

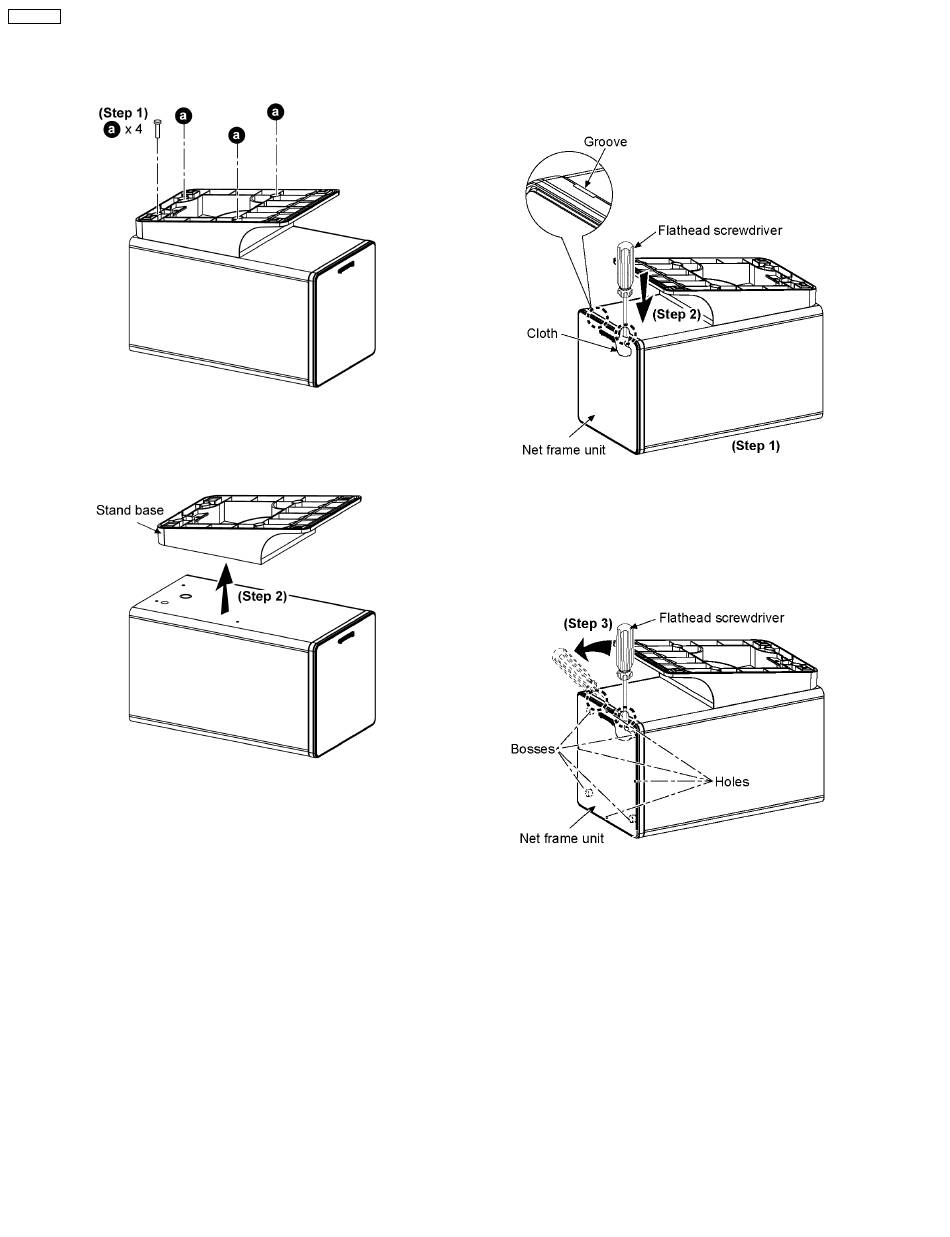

Disassembly of Stand base

Step 1: Remove 4 screws.
Step 2: Remove stand base as arrow shown.
2.3. Disassembly of Net frame
assembly
Step 1: Upset the speaker cabinet as shown above.
Step 2: Insert the flathead screwdriver above the cloth into the
groove of speaker cabinet.
Step 3: Push the net frame unit with the flathead screwdriver
as arrow shown.
Caution: Do not exert too much force on the bosses and holes
as it may damage the net frame unit.
4
