Operating Instructions
Manuel d'utilisation
Speaker System
SB-TP1000
Advertisement
Table of Contents
Related Manuals for Panasonic SB-TP1000
Summary of Contents for Panasonic SB-TP1000
-
Page 1: Table Of Contents
Maintenance ..... Back cover Operating Instructions Manuel d’utilisation Speaker System Enceintes acoustiques SB-TP1000 Model No. / Modèle Avant de raccorder, régler ou utiliser l’appareil, il est recommandé de lire attentivement le manuel d’utilisation. Conserver ce manuel. -
Page 2: Supplied Accessories

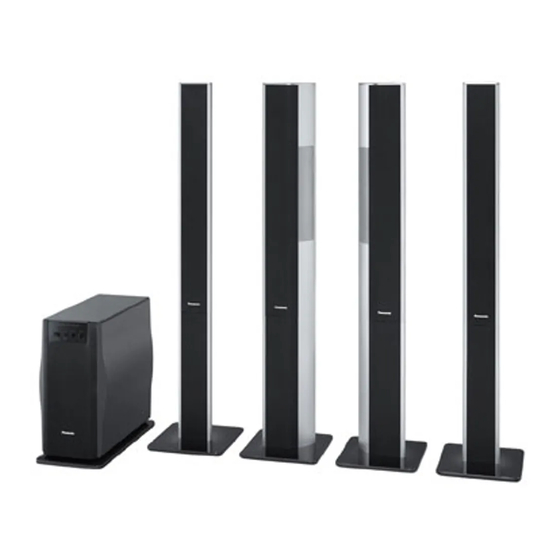

Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Speaker system Front speaker (including center channel) L SB-FS1000 Front speaker (including center channel) R Surround speakers SB-WA102 Active subwoofer User memo: DATE OF PURCHASE DEALER NAME DEALER ADDRESS... -
Page 3: Mise En Garde
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Fol- low the safety instructions on the unit and the applicable safety in- structions listed below. Keep these operating instructions handy for future reference. Read these instructions. Keep these instructions. Heed all warnings. -
Page 5: Location
Ce système incorpore un haut-parleur de canal central dans chacune des enceintes avant. Grâce à un système unique de Panasonic qui reflète les principes de la psychologie auditive, le son semble provenir de l’intérieur de l’écran du téléviseur, ce qui vous permet de profiter du son et de l’image avec un sens rehaussé... -
Page 6: Assembly And Installation
Assembly and Installation Assembling the front speakers as stand types •Do not apply an unreasonable force to the net at the front of the speaker unit. You cannot remove the front net. •You can carry out assembly work stably by placing the cushions in the packing case beneath the speaker. -
Page 7: Assemblage Et Installation
10 mm Assemblage et installation Assemblage des enceintes avant sur socle •Ne pas forcer la grille à l’avant de l’enceinte. Il est impossible de retirer la grille. •L’assemblage s’effectue plus facilement si les enceintes sont déposées sur les coussinets d’emballage. Orienter la grille des enceintes vers le haut. -
Page 8: Assembling The Surround Speakers As Stand Types
Assembly and Installation Assembling the surround speakers as stand types •Do not apply an unreasonable force to the net at the front of the speaker unit. You cannot remove the front net. •You can carry out assembly work stably by placing the cushions in the packing case beneath each speaker. -
Page 9: Assemblage Des Enceintes Ambiophoniques Sur Socle
Assemblage et installation Assemblage des enceintes ambiophoniques sur socle •Ne pas forcer la grille à l’avant de l’enceinte. Il est impossible de retirer la grille. •L’assemblage s’effectue plus facilement si les enceintes sont déposées sur les coussinets d’emballage. Placer les enceintes, la grille vers le haut. -
Page 10: Wall-Mounting The Front And Surround Speakers
35 mm 35 mm ø4 mm ø7.0-9.4 mm 8-10 mm (5/16˝ to 13/32˝) (5/16 po à 13/32 po) Assembly and Installation Wall-mounting the front and surround speakers Do not attempt to attach these speakers to walls using methods other than those described in this manual. •After each task, tighten the screws securely. -
Page 11: Connections
Connections Connect to a receiver or amplifier with 6-Ω impedance for the front and surround speakers, and a pin-type output terminal for an active subwoofer. You cannot connect these speakers to any equipment other than this amplifier. Before connection Turn off the other equipment. Do not connect the AC power supply cord until all other cables and cords are connected. -
Page 12: Subwoofer Operation
Subwoofer operation The active subwoofer reproduces very low frequency sound monau- rally, making use of the fact that the human ear does not sense direc- tion in the low frequency region. You can emphasize low frequencies by combining the active subwoofer with the speaker system. -
Page 13: Notes
Notes Speaker impedance and allowed input SB-FC1000L, R/ Impedance SB-HS1000 Input power The only receivers or amplifiers you should connect to these speak- ers are those whose rated output does not exceed the above figures. Using a receiver or amplifier with higher ratings than listed above can cause abnormal sounds to occur because of excessive input, dam- age to the receiver or speakers, and fire. -
Page 14: Warranty (U.s.a.)
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST. For hearing or speech impaired TTY users, TTY: 1-877-833-8855 Accessory Purchases Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pasc.panasonic.comm or, send your request by E-mail to: npcparts@us.panasonic.com... -
Page 15: Warranty (Canada)
(ONLY FOR CANADA) PANASONIC PRODUCT—LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase. -
Page 16: Specifications
•Never use alcohol, paint thinner, or benzine to clean these units. •Before using chemically treated cloth, read the instructions that came with the cloth carefully. Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.com...
