Summary of Contents for SensorLink Amcorder UG Series

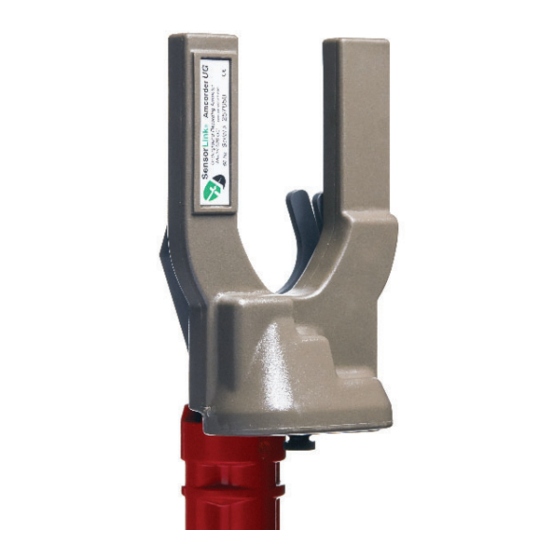

- Page 1 Operators Manual Recording Ammeter Amcorder UG SensorLink ...
- Page 2 Unit and Accessory Part Numbers Amcorder UG Model 920-UG *Qty (1) sold in 6-920-UG-1 Kit *Qty (3) sold in 6-920-UG-3 Kit USB IrDA Dongle Model 7-021B *Qty (1) sold in 6-920-UG-1 Kit *Qty (1) sold in 6-920-UG-3 Kit Carrying Case Model 659-UG *Qty (1) sold in 6-920-UG-1 Kit *Qty (1) sold in 6-920-UG-3 Kit...
-
Page 3: Table Of Contents
Operators Manual Amcorder UG Underground Recording Ammeter Available Stock Codes: 920 UG 50HZ 920 UG 60HZ Table of Contents Page Specifi cations Safety Information Theory of Operation Preventative Maintenance Cleaning Low Temperature Applications Powering the Unit Sample and Log Intervals Battery Replacement and Operation Installation of Amcorder UG Removal of Amcorder UG... -
Page 4: Specifications
Hotstick Mounting Shotgun Style Hotstick (Hotstick not included) Battery 9 Volt Alkaline or Lithium Software Requirements Softlink for SensorLink Processor 100 Mhz or Higher, 200 Mhz Recommended 32 MB, 64 MB Recommended Drive Space 15 MB to Load Software, 10 MB Operating Space... -
Page 5: Safety Information
Once on the line it begins to collect and record the current load. The Amcorder UG uses the same current sensor technology as the original SensorLink ® Ampstik ® , which does not use magnetic materials. Measurements are taken at user defi ned intervals, entered before deployment in Softlink. -
Page 6: Preventative Maintenance
Preventative Maintenance The Recorder should be visually inspected for cracks in urethane. Do not use if cracks are present or the unit is damaged. Verify the air vent on the faceplate has not been covered. The membrane on the inside of the faceplate is designed to allow the unit to breath properly. -
Page 7: Battery Replacement And Operation
Battery Replacement and Operation Changing the Battery: The Amcorder UG requires one 9V battery. Remove the screw at the base of the unit and remove the cover plate. Snap the battery to the connector and insert into the battery slot. Replace the cover plate. The Recorder should have a fresh 9-volt battery replaced each time it is setup and deployed. -
Page 8: Installation Of Amcorder Ug
Installation of Amcorder UG Attaching the Amcorder UG to an elbow: Step 1: Attach the Shotgun or Grip All type hot stick to the Amcorder UG Step 2: Set the clamp on the Amcorder UG into the open position Closed Clamp Open Clamp Step 3: Place the Amcorder UG on the conductor beneath the elbow and above the concentric neutral. -
Page 9: Removal Of Amcorder Ug
Removal of the Amcorder UG Removing the Amcorder UG from an elbow: Step 1: Attach the hot stick to the Amcorder UG Step 2: Pull the hot stick to open and release the clamp's grip on the conductor Note: If there is a concern about pulling the elbow off the bushing, pull from the side, or use a second hot stick to hold the elbow in place. -
Page 10: Installation Of Software And Usb Irda
Softlink Installation Step 1: Softlink Installer is available at www.sensorlink.com/products/amcorder. Save the fi le to the desired location. The Softlink .exe fi le will automatically begin the download when clicked. -
Page 11: Communicating With Recorder
Communicating with Recorder Softlink communicates with one Recorder at a time. To make sure only one Recorder is communicating, stand any other Recorders on their base. To communicate with a Recorder, follow these steps: Step 1: Insert the USB IrDA cable into the PC's user port Step 2: Position the Recorder so the IrDA Port, located at the bottom of the unit, is facing the IrDA. -
Page 12: Confi Gure Recorder
Confi gure Select the Confi gure button to setup Recorder preferences. Name: Identify the Recorder with up to 16 characters. Description: Enter a description of up to 46 characters. For example, you may want to note the Recorder's service location and the date range for the recordings. Log Interval: Select how often to log data. -
Page 13: Download Recorder Data
Download Recorder Data Click the Download button to begin downloading data from the Recorder. The user is able to view the Recorder's confi guration and progress as it is downloading in the graph view. The download can be stopped at any time by selecting the red X button. Repeat these steps to download the data from any additional units. -
Page 14: Saving Recorder Data
Saving Recorder Data Data fi les may be saved as a .csv or .xlsx fi le for future review in Softlink or another data management program. The data from each recorder is saved into its own fi le. Step 1: Select the data fi le by selecting the Recorder on the menu Step 2: Select "save"... -
Page 15: Opening Recorder Data
Opening Recorder Data fi les in Softlink Previously saved fi les from a Recorder may be opened in Softlink. Follow these steps for opening saved fi les: Step 1: Open Softlink Step 2: Close the "Discovering ports and instruments" bar Step 2: Select "Open File"... -
Page 16: Recorder Options
Recorder Options The options button on the Download Screen allows the user to change certain preferences. Radio instruments remembered: Softlink remembers Radio Transcorders that were used in previous downloads. Select "Reset to Default" for Softlink to forget the radios. See the Radio Transcorder User's Manual for further details. Chart line thickness: The thickness of the graph lines can be changed by the user. -
Page 17: Graphing Recorder Data
Graphing To graph the downloaded data, click the Graph Icon on the download screen. A second screen will open and display the data in graphical format. Report Options Select the units and measurement parameters to graph by clicking in the selection boxes. -
Page 18: Troubleshooting
Troubleshooting The Recorder is not communicating 1) Position the IrDA no more than three feet away from the Recorder. 2) Examine the IrDA connection to the PC and reconnect if necessary. 3) Verify the battery has greater than 5 Volts with a Voltmeter. Replace if low. 4) IrDA USB cables are not universal;... -
Page 19: Warranty
Repaired, worked on, or altered, including removal of the front panel, by persons un au tho rized by SensorLink Corporation in such a manner as to injure, in SensorLink Cor po ra tion’s sole judg ment, the per for mance, sta bil i ty, or reliability of the in stru ment;... - Page 20 Manual Stock Code No: M050-062-001 Information contained in this document is subject to change without notice. Product specifi cation may change. Contact your SensorLink representative for the most current product information. © 2019 by SensorLink. All rights reserved. SensorLink...
