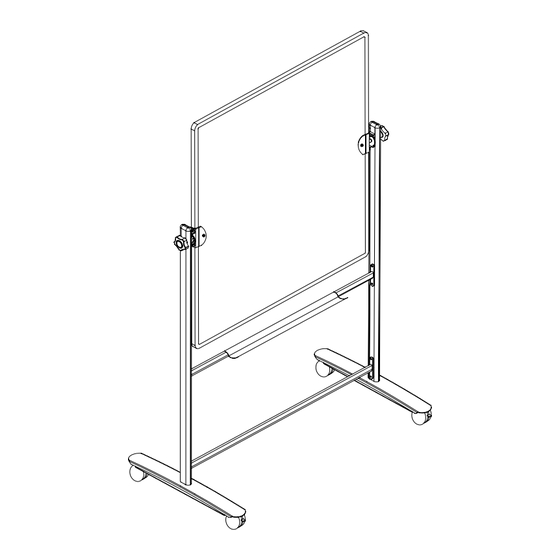

- Page 1 Best-Rite 4' x 5' Lumina Mobile Reversible Whiteboard Instruction Manual...
- Page 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 #62382 and #62383...
- Page 3 #62382 and #62383 Lumina Reversible Boards Part Drawing Description Part Drawing Description Hardware List Screw M6X20mm 10 EA Board Assembly 1 EA Non-Locking Caster 2 EA Locking Caster 2 EA 2 EA Allen Wrench 1 EA Caster Wrench 1 EA...
- Page 4 Lumina Reversible Assembly Instructions HROUGH NSTRUCTIONS FROM BEGINNING TO BEFORE STARTING TO ASSEMBLE UNIT Identify and Separate all the Parts and Hardware. 2.)To attach Hinge Pivot (G) to each side of Board Assembly (P-1), first remove the two factory installed screws in the board’s clamp. Place Hinge Pivot (G) over holes and tighten screws back as shown in Illustration #1A.
- Page 5 #62382 and #62383 Lumina Reversible 4.) Tighten both Knobs (F) at this time. Attach Tray (P-5) to the Top Cross Bar (P-3) using two Screws (A) as shown in Illustration #3. Illustration #3 5.) Place a Lock Washer (H) on each Caster’s threaded stem before attaching.
- Page 6 62382 and 62383 Spec Sheet #62382 #62383 74.5” 77.5” 24” 24” 36.5” 66.5” 62382_04-27-10...
