PROFESSIONAL MEDICAL PRODUCTS
CARROZZINA OXFORD E OXFORD PLUS

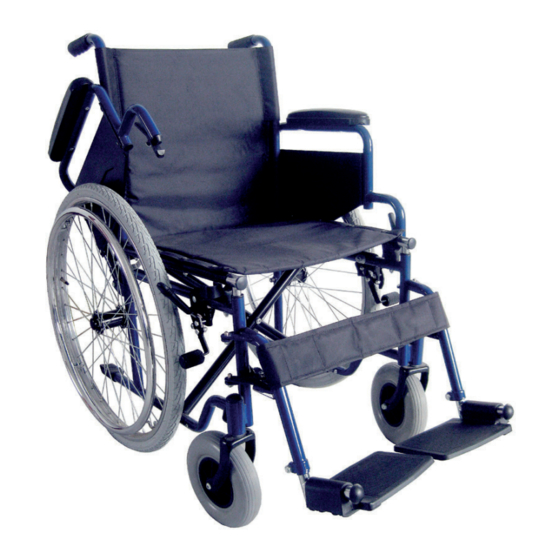

OXFORD AND OXFORD PLUS WHEELCHAIR
FAUTEUIL ROULANT OXFORD ET OXFORD PLUS
SILLA DE RUEDAS OXFORD Y OXFORD PLUS
Manuale d'uso - User manual
Manuel de l'utilisateur - Guía de uso
ATTENZIONE: Gli operatori devono
leggere e capire completamente questo
manuale prima di utilizzare il prodotto.
ATTENTION: The operators must
carefully read and completely understand
the present manual before using the product.
AVIS: Les opérateurs doivent lire et bien
comprendre ce manuel avant d'utiliser le produit.
ATENCIÓN: Los operadores tienen que leer y entender
completamente este manual antes de utilizar el producto.
43270 - 43271 - 43272
43274 - 43275
Gima S.p.A. - Via Marconi, 1
20060 Gessate (MI) - Italy
Made in China
(P.R.C.)
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the OXFORD and is the answer not in the manual?

Questions and answers

Related Manuals for Gima OXFORD

Summary of Contents for Gima OXFORD

  • Page 1 PROFESSIONAL MEDICAL PRODUCTS CARROZZINA OXFORD E OXFORD PLUS OXFORD AND OXFORD PLUS WHEELCHAIR FAUTEUIL ROULANT OXFORD ET OXFORD PLUS SILLA DE RUEDAS OXFORD Y OXFORD PLUS Manuale d’uso - User manual Manuel de l’utilisateur - Guía de uso ATTENZIONE: Gli operatori devono leggere e capire completamente questo manuale prima di utilizzare il prodotto.

  • Page 2: General Safety Instructions

    11 Seat and Back upholstery 12 Cross braces 13 Foot plates 14 Anti-Tipper (only for Oxford Plus model) 2. General Safety Instructions 2.1 Please read the instructions for use first! Before using the product, you should be familiar with the handling, function and use of the product.

  • Page 3: Delivery And Preparation For Use

    ENGLISH You may compromise your safety if you do not observe these instructions. However, it is impossible to protect against and avoid all unforeseeable circumstances and situations. 2.2 Do not ascend or descend stairs without the assistance of attendants. If devices such as ramps or elevators are available, they should be used. If wheelchair-friendly access is missing, two attendants must carry the wheelchair over the obstacle.
  • Page 4 ENGLISH fig. 1 fig. 2 2. If applicable, insert the footrests into the receivers from the side (Figure 3). Turn the footrests inward until locking to the right place. Finally, fold down the footplates (Figure 4). fig. 3 fig. 4...
  • Page 5 ENGLISH 4. Mounted Anti-Tipper (only for Oxford Plus model) The anti-tipper prevents the wheelchair from tipping too far backward. The anti-tipper must be rotated into the active position on one or both sides before use. This is accomplished by pressing the ball ratchets (Item A) and making the adjustment.
  • Page 6 ENGLISH fig. 5 fig. 6 6. Armrest usage The side panels can be flipped-up to the rear for transfer user (Figure 7). To raise the side panel, manipulate the release lever (Figure 8) behind the side panel tube. The height of the armrest is not adjustable. fig.

  • Page 7: Cleaning And Disinfection

    ENGLISH 7. Footrests usage The height of standard footrests can be changed with tools (Figure 9). To release the screws and then adjust the height to right place for user, finally tighten the screws. fig. 9 fig. 10 8. Replacing the Seat and Back Upholstery Can be removed if necessary by loosening the cross screws (Figure 10).
  • Page 8 ENGLISH 10. Re-use Information on Re-Use The product is suitable for re-use. Similar to second-hand machines or cars, products that are being re-used are subject to increased strain. Features and functions must not change in a way that could endanger patients or other persons within the product’s life cycle.

  • Page 9: Specifications And Parameters

    Steel and foldable Armrest Flip-up desk length armrest Seat and backrest Nylon upholstery Cross bars Seat width 43cm with single (for Oxford model) Seat width 46cm with single Seat width 51cm with double Footrest Swing away footrest with leg strap Rear wheel 24”...
  • Page 10 The warranty is valid for 12 months from the date of supply of GIMA. During the period of validity of the warranty, GIMA will repair and/or replace free of charge all the defected parts due to production reasons.
