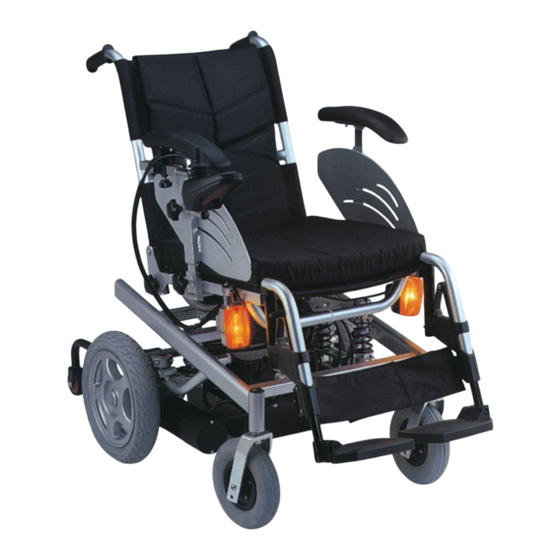

POWERED WHEELCHAIR
User Manual
ATTENTION: The operators must carefully read and completely understand
the present manual before using the product.
Gima S.p.A. - Via Marconi, 1 - 20060 Gessate (MI) Italy
Italia: tel. 199 400 401 - fax 199 400 403
Export: tel. +39 02 953854209/221/225 fax +39 08 95380056
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
Fabbricante/Manufacturer:
Gima S.p.A. - Gessate (MI) - Italy
Made in P.R.C
Advertisement
Related Manuals for Gima 27729
Summary of Contents for Gima 27729
-
Page 1: User Manual
Gima S.p.A. - Via Marconi, 1 - 20060 Gessate (MI) Italy Italia: tel. 199 400 401 - fax 199 400 403 Export: tel. +39 02 953854209/221/225 fax +39 08 95380056 gima@gimaitaly.com - export@gimaitaly.com www.gimaitaly.com PROFESSIONAL MEDICAL PRODUCTS POWERED WHEELCHAIR User Manual ATTENTION: The operators must carefully read and completely understand the present manual before using the product. - Page 2 I. PRODUCT INTRODUCTION The powered wheelchair is easy to IllustratIon 1 use. The user can make the powered wheelchair move forward, backward Armrest or turn round and round in the same place only by the controller. When Handle the power is not enough, it can be used as the transit wheelchair.
-
Page 3: Battery Installation
taBlE 1 maIn paramEtErs 1. Outer Dimension 1020(L)X650(W)X990(H)mm 10. Over Obstacle 40mm 2. Light 24V 5W 11. Stop Distance 3. Net Weight 50kg 12. Running Distance 20km incl. Batteries Per Charging 4. Capacity Max: 110kg 13. Noise ≤65dBA 5. Castor Diameter 200mm (8 ) 14. - Page 4 2) Connect the connector labeled LEFT of the controller with the left one of the motor. Connect the connector labeled RIGHT of the controller with the right one of the motor. (See illustration 6) 6. Powered Wheelchair Operation MOTOR MOTOR 1) Turn on the power supply switch I/O, then the power indicator light is on.
- Page 5 10.Slow or sluggish movement If the wheelchair does not travel at full speed or does not respond quickly enough, and the battery condition is good, check the maximumspeed setting. If adjusting the speed setting does not remedy the problemthen there may be a non-hazardous fault.
- Page 6 3. The power wheelchair is suitable to drive in wide room, path and flat road around residences. Don’t go close the motor vehicles, deep holes and water. 4. Don’t run across the steps often in order to avoid damage of the front castors 5. Don’t climb long slope in case the circuit of the motor is overload and the power is used too fast or accident happens if the user cannot stop the wheelchair in time in the middle of the slope. 6. The accessory castors uses in case the wheelchair is overturn when the slope is too inclined. Don’t detach them.
- Page 7 Flashing bars TROUBLESHOOTING GUIDE number The battery needs charging or there is a bad connection to the battery. Check the connections to the battery. If the connections are good, try charging the battery. The left hand motor has a bad connection. Check the connections to the left hand motor.
- Page 8 Congratulations for purchasing a GIMA product. This product meets high qualitative standards both as regards the material and the production. The warranty is valid for 12 months from the date ofsupply of GIMA. During the period of validity of the warranty, GIMA will repair and/or replace free of charge all the defected parts due to production reasons.
