PROFESSIONAL MEDICAL PRODUCTS

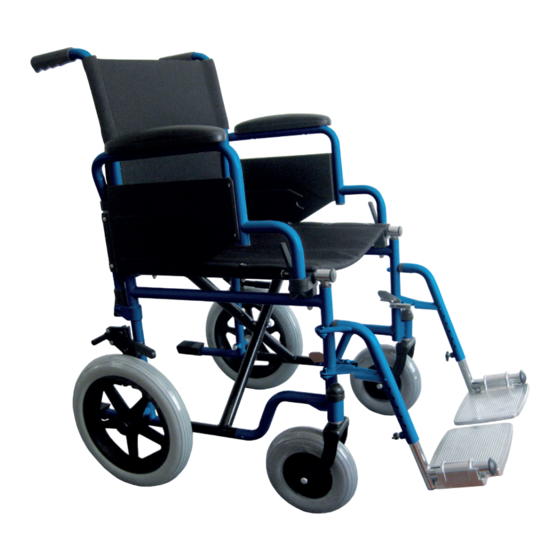

CARROZZINA ESSEX
ESSEX WHEELCHAIR
FAUTEUIL ROULANT ESSEX
SILLA DE RUEDAS ESSEX
Manuale d'uso - User manual
Manuel de l'utilisateur - Guía de uso
ATTENZIONE: Gli operatori devono
leggere e capire completamente questo
manuale prima di utilizzare il prodotto.
ATTENTION: The operators must
carefully read and completely understand
the present manual before using the product.
AVIS: Les opérateurs doivent lire et bien
comprendre ce manuel avant d'utiliser le produit.
ATENCIÓN: Los operadores tienen que leer y entender
completamente este manual antes de utilizar el producto.
43260 - 43261 - 43262
Gima S.p.A. Via Marconi, 1
20060 Gessate (MI) - Italy
Made in China
(P.R.C.)
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
Advertisement
Related Manuals for Gima ESSEX
Summary of Contents for Gima ESSEX

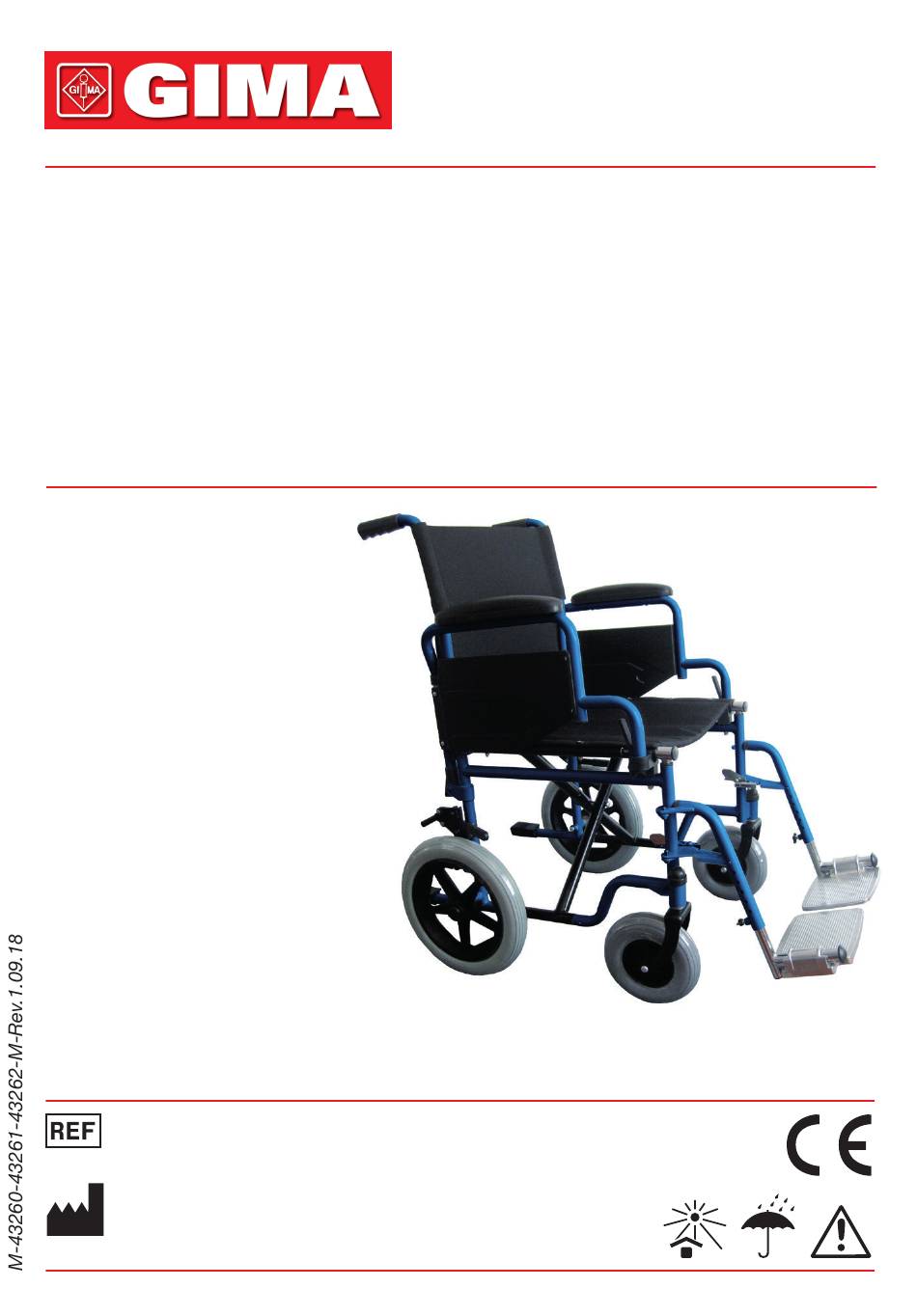

- Page 1 PROFESSIONAL MEDICAL PRODUCTS CARROZZINA ESSEX ESSEX WHEELCHAIR FAUTEUIL ROULANT ESSEX SILLA DE RUEDAS ESSEX Manuale d’uso - User manual Manuel de l’utilisateur - Guía de uso ATTENZIONE: Gli operatori devono leggere e capire completamente questo manuale prima di utilizzare il prodotto.
-
Page 2: General Safety Instructions
ITALIANO 1. Simple Structure Figure Transfer Version with 12” Rear Wheels This wheelchair version is particularly suitable for the patient transfer. 1 Handle 2 Side plate 3 Rear wheels Front wheels 5 Front forks Foot rest 7 Leg strap Seat and back upholstery 9 Cross bars 10 Footplate 2. -
Page 3: Delivery And Preparation For Use
ENGLISH 2.2 Do not ascend or descend stairs without the assistance of attendants. If devices such as ramps or elevators are available, they should be used. If wheelchair-friendly access is missing, two attendants must carry the wheelchair over the obstacle. 2.3 If possible, the footplates should be flipped up before getting into or out of the wheelchair. - Page 4 ENGLISH fig. 1 fig. 2 2. If applicable, insert the footrests into the receivers from the side (Figure 3). Turn the footrests inward until locking to the right place. Finally, fold down the footplates (Figure 4). fig. 3 fig. 4...
- Page 5 ENGLISH 4 Transportation Grab the middle of seat upholstery at the front and the back and pull it upwards, the wheelchair will be folded (Figure 5). For more manageable transportation, e.g. in cars, the footrests can be enti- rely removed in just a few easy steps. To move the footrest, press the release lever to the inside (Figure 6).
- Page 6 ENGLISH fig. 7 fig. 8 6. Footrests usage The height of standard footrests can be changed with tools (Figure 9). To release the screws and then adjust the height to right place for user, finally tighten the screws. fig. 9 fig.
-
Page 7: Cleaning And Disinfection
ENGLISH 7. Replacing the Seat and Back Upholstery Can be removed if necessary by loosening the cross screws (Figure 10). 8. Cleaning and Disinfection 8.1 Clean the upholstery with warm water and a washing-up liquid. Remove spots with a sponge or a soft brush. Rinse with clear water and let the components dry. -
Page 8: Specifications And Parameters
ENGLISH 10. Specifications and Parameters Specifications Style Transport Surface finishing Powder coating Frame Steel and foldable Armrest Flip-up desk length armrest Seat and backrest Nylon upholstery Cross bars Seat width 43cm with single Seat width 46cm with single Seat width 51cm with double Footrest Swing away footrest with heel strap and height adjusted clips... - Page 9 The warranty is valid for 12 months from the date of supply of GIMA. During the period of validity of the warranty, GIMA will repair and/or replace free of charge all the defected parts due to production reasons.
