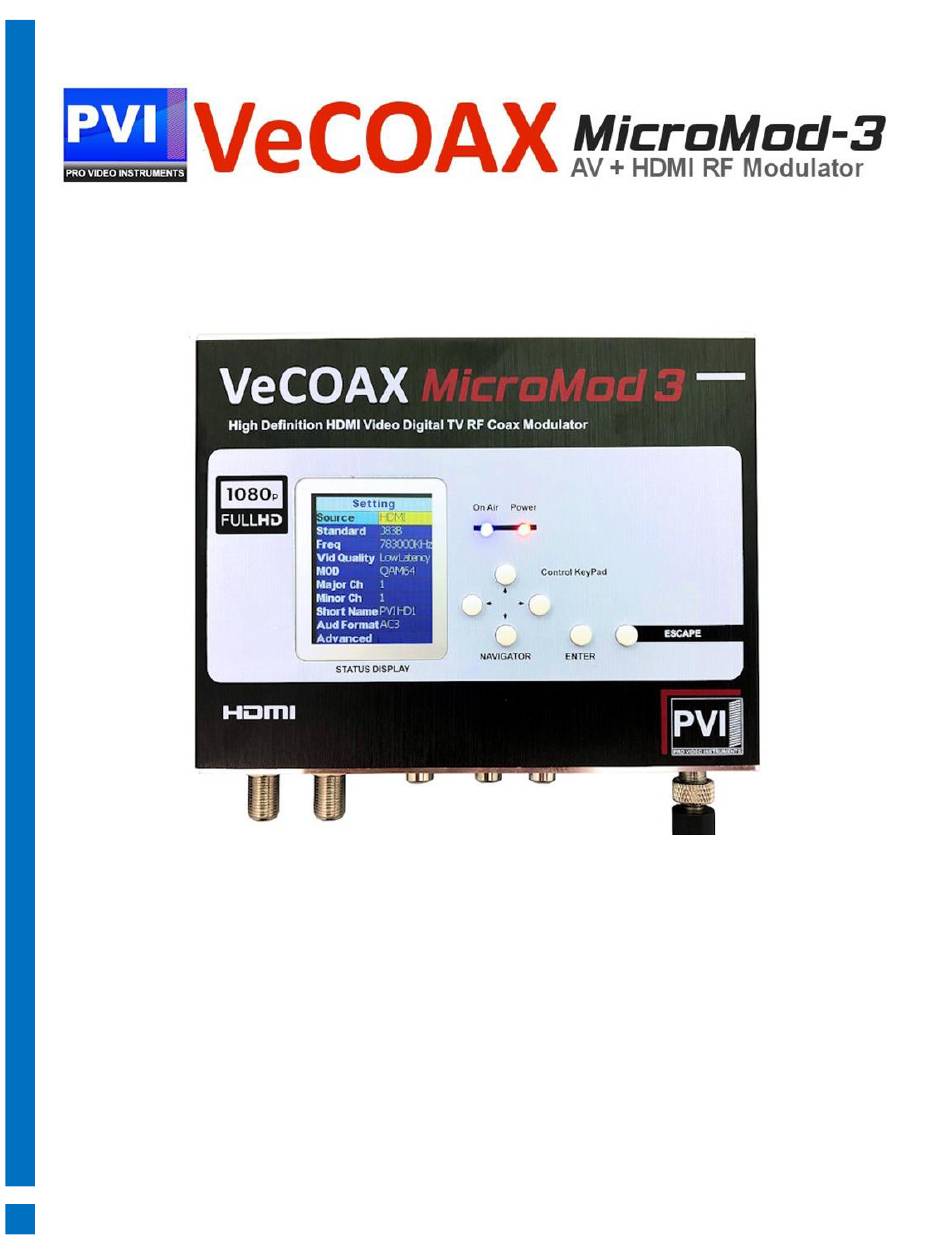

  • Page 1 VECOAX MICROMOD 3 AV + HDMI RF MODULATOR MANUAL...
  • Page 2 Can be mixed with other HDTV signals such as Digital Cable or Over the Air Channels* (depending on Frequencies available for you to use) Modular – Expandable – Reliable - 5 Year Warranty - Affordable VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...

  • Page 3: Note: Before Installation

    By default, our unit is set to QAM (J.83B Cable) mode. To configure the unit beyond the default settings, see the WEB INTERFACE CONFIGURATION GUIDE on Page 6 for web interface setup, or see ON-BOARD DISPLAY on Page 10 to use the on-board menu. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...

  • Page 4: Device Layout

    4) Menu Navigation Keys 10) USB PC Port 5) RF In / RF Out 11) 3 – Pin Upgrade Port 6) Composite Video / Closed Caption 12) Web Management Port (Ethernet) VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...

  • Page 5: Status Indicator Lights

    (J.83B) Mode with a Frequency of 783.000 MHz which is physical channel 122. Channel numbers are Major 1, Minor 1. The TV will pick up the channel on Cable channel 1.1 and display our PVI logo when no HDMI is connected.
  • Page 6 6. Enter the Subnet Mask 255.255.255.0. 7. It is not necessary to enter DNS or Router. 8. Click Apply. You are now ready to connect. See WEB INTERFACE CONFIGURATION GUIDE on Page 6 for details. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 7 NETWORK: Here you can change the IP address, subnet mask, and gateway for accessing the web interface. • UPDATE: Here you can apply firmware updates to your unit, if directed to do so by PVI support staff. • ABOUT: Here you can find the unit’s firmware version.
  • Page 8 MODE: This option allows you to adjust the VCT broadcast mode. Sometimes TVs prefer a certain VCT mode to display the Major/Minor channel info correctly. If you run into this issue change the mode and try rescanning again. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 9 • SUBNET MASK: You may need to change this one if your network is heavily managed, or if you are going through a switch. Otherwise, the default should work fine. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 10 Click APPLY to lock in changes. If the IP Address, etc., is changed, be sure to use the new IP Address to access the unit’s web interface. UPDATE TAB: Provides the interface for unit Firmware updates. ONLY USE AS DIRECTED BY PVI SUPPORT STAFF. ABOUT TAB: Provides Firmware Version information. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 11 – Advanced options for users who require Specific PIDs or Fixed EDID information. Please don’t change these unless you understand your required PIDs or EDID per Cable Provider instructions or PVI Tech Support request. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 12 – Advanced options for users who require Specific PID’s or Fixed EDID information. Please don’t change these unless you understand your required PIDs or EDID per Cable Provider instructions or PVI Tech Support request. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 13 Specific PID’s or Fixed EDID information. NAME so they don’t overlap and Please don’t change these unless you understand create issues. your required PIDs or EDID per Cable Provider instructions or PVI Tech Support request. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 14 Please don’t change these unless you understand FREQUENCY, LCN, SHORT your required PID’s or EDID per Cable Provider NAME so they don’t overlap and instructions or PVI Tech Support request. create issues. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 15 PVI Tech Support request. If you have more than one unit please ensure you change the FREQUENCY, KEY ID, SHORT NAME so they don’t overlap and create issues. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 16 Please don’t change these unless you understand FREQUENCY, LCN, and SERVICE your required PID’s or EDID per Cable Provider NAME so they don’t overlap and instructions or PVI Tech Support request. create issues. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 17 Set the IP Address of Web Interface and other settings. (See Page 17). • RESET - Restore unit to factory settings. Terms: PID = (Packet Identifier) CVCT = (Cable Virtual Channel Table) VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 18 6 units, 40+ TVs or using multiple splitters (each splitter will lower the DB level 5-10dbs depending on the quality) to ensure you get a clear signal to all your TVs no matter the distance. If your system works without one, then it is not necessary. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 19 MPEG – MPEG 2 Layer II used in DVB-T EU Standard. • ACC - Advanced Audio Coding or MPEG-4. Used in some ATSC broadcasts and ISDBT format. Supported by Most TVs worldwide. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...

  • Page 20: Troubleshooting

    If possible, test with a different TV with a different make/model. Use default settings on the unit. (Reset the unit to default settings, by pressing the Enter and Escape keys simultaneously, and pressing Enter when prompted to “Recall Default Settings.”) VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 21 Fixed EDID to 1080p. Audio setting issues can also cause full video dropouts. Check HDMI Audio Out settings on the source device. Set to Stereo PCM Linear or Dolby Digital 2 Channel (Uncompressed). VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 22 Check HDMI cable connection between source and unit. Disconnect HDMI source and reconnect it to establish a new HDMI handshake. Test with a different cable if possible. Test with a different source (e.g. DVD player) if possible. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 23 If using a converter box, set the STANDARD on the unit’s menu to match the type of converter box. (For Over-the-Air, set the unit to ATSC. For Cable, set the unit to J83B.) VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...

  • Page 24: Frequently Asked Questions

    TV image such as two channels split on one screen. Please see Page 10 for more information. MIXING OVER THE AIR ATSC SIGNALS WITH OUR UNIT? Please see page 10 for more information. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 25 This then overwrites the Physical channel number as shown in the frequency chart (783.00mhz is physical channel 122) and stores the channel with the assigned Major/Minor you have set on the unit. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 26 ASAP the following business day. Free phone tech support is available by calling +1 407 720 6101 ext #2, MON-FRI 9:30 AM – 5 PM US EST TIME. VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 27 EXAMPLE 1.1 so it will go to the button number 1 on the TV remote Channel Number QAM / CDSREF Carrier (MHz) 6 MHz Apart Subband "T" Channels Lowband 57.00 63.00 69.00 75.00 79.00 or 81.00 85.00 or 87.00 Midband 93.00 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 28 Pro Video Instruments 99.00 105.00 111.00 117.00 Midband 123.00 129.00 135.00 141.00 147.00 153.00 159.00 165.00 171.00 Highband 177.00 183.00 189.00 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 29 Pro Video Instruments 195.00 201.00 207.00 213.00 Superband 219.00 225.00 231.00 237.00 243.00 249.00 255.00 261.00 267.00 273.00 279.00 285.00 291.00 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 30 Pro Video Instruments 297.00 Hyperband 303.00 309.00 315.00 321.00 327.00 333.00 339.00 345.00 351.00 357.00 363.00 369.00 375.00 381.00 387.00 393.00 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 31 Pro Video Instruments 399.00 405.00 411.00 417.00 423.00 429.00 435.00 441.00 447.00 453.00 459.00 465.00 Ultraband 471.00 477.00 483.00 489.00 495.00 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 32 Pro Video Instruments 501.00 507.00 513.00 519.00 525.00 531.00 537.00 543.00 549.00 555.00 561.00 567.00 573.00 579.00 585.00 591.00 597.00 603.00 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 33 Pro Video Instruments 609.00 615.00 621.00 627.00 633.00 639.00 645.00 Jumboband 651.00 657.00 663.00 669.00 675.00 681.00 687.00 693.00 699.00 705.00 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 34 Pro Video Instruments 711.00 717.00 723.00 729.00 735.00 741.00 747.00 753.00 759.00 765.00 771.00 777.00 783.00 789.00 795.00 801.00 807.00 813.00 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 35 Pro Video Instruments 819.00 825.00 831.00 837.00 843.00 849.00 855.00 861.00 867.00 873.00 879.00 885.00 891.00 897.00 903.00 909.00 915.00 921.00 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 36 Pro Video Instruments 927.00 933.00 939.00 945.00 951.00 957.00 963.00 969.00 975.00 981.00 987.00 993.00 999.00 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 37 EXAMPLE 1.1 so it will go to the button number 1 on the TV remote (frequencies in MHz) 6 MHz Apart Channel ATSC FREQUENCY VHF high-band (band III) Channel ATSC FREQUENCY VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 38 Pro Video Instruments UHF band Channel ATSC FREQUENCY VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 39 Pro Video Instruments Channel ATSC FREQUENCY VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 40 Pro Video Instruments Channel ATSC FREQUENCY VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 41 SUGGESTED DEFAULT = 473142KHZ (473.142 MHz) = freq channel 14 (frequencies in kHz) 6 MHz Apart Channel ISDBT FREQUENCY 473142 479142 485142 491142 497142 503142 509142 515142 521142 527142 533142 539142 545142 551142 557142 563142 569142 575142 581142 587142 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 42 Pro Video Instruments 593142 599142 605142 ***NOT USED*** 617142 623142 629142 635142 641142 647142 653142 659142 665142 671142 677142 683142 689142 695142 701142 707142 713142 719142 725142 731142 737142 VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
  • Page 43 Please download the DVB-T additional PDF for your country available on our Tech Support Website – pvisupport.com EUROPE/NEW ZEALAND = 8 MHz band AUSTRALIA = 7 MHz Band COLOMBIA = 6 MHz Band VeCOAX MicroMod 3 AV + HDMI RF Modulator Manual...
