VECOAX COMPACT RF SERIES MODULATOR
MANUAL
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vecoax Compact RF series and is the answer not in the manual?

Questions and answers

Related Manuals for PVI Vecoax Compact RF series

Summary of Contents for PVI Vecoax Compact RF series

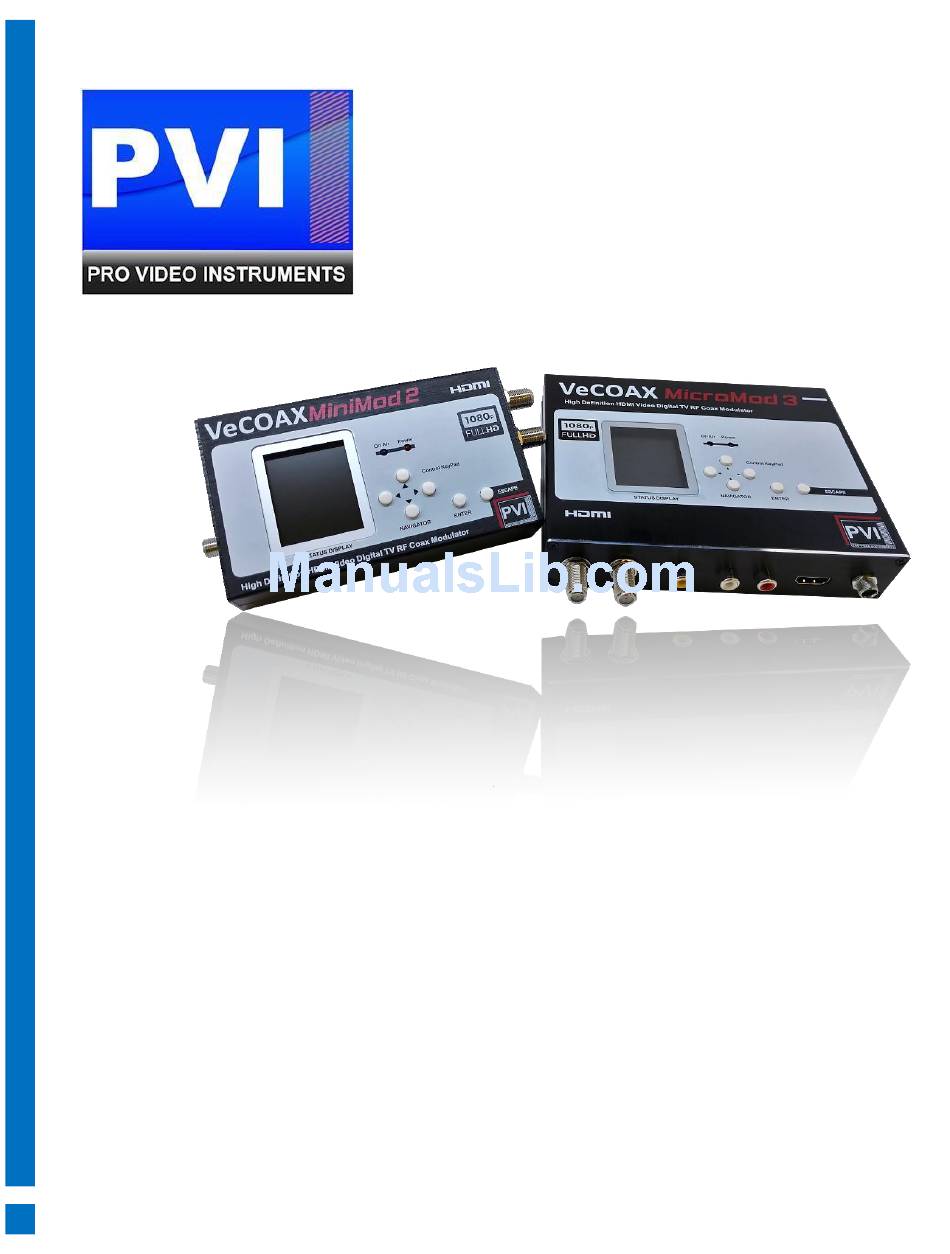

  • Page 1 VECOAX COMPACT RF SERIES MODULATOR MANUAL USER MANUAL...
  • Page 2 This can be done simply by connecting your TV with a short piece of Coax cable to the RF out of the Unit. No HDMI needs to be Connected. This will display our PVI logo on your TV. By default our unit is set to QAM(J.83B Cable) Mode.
  • Page 3 Can be mixed with other HDTV signals such as Digital Cable or Over the Air Channels* (depending on Frequencies available for you to use) Modular – Expandable – Reliable - 5 Year Warranty - Affordable POWERING THE DEVICE. – QUICK GUDIE – USA/CANADA Vecoax Compact RF series modulator Manual...
  • Page 4 122.1: Major 122, Minor 1. This will display and be stored as channel 122.1 on your TV. k) Once we see our PVI logo on the Channel found on your TV, you may insert your HDMI source. Please ensure that your HDMI source such as a DVD player or DirecTV STB is set to a Fixed Resolution of 1080P or 720P.
  • Page 5 Unit. If you are using a Splitter, some splitters don’t support EDID pass-through (Extended Display Identification Data used to tell the source or TV what video resolution is supported) Test your HDMI source without the Splitter connected. Vecoax Compact RF series modulator Manual...
  • Page 6 FREQUENCY, some older TV’s don’t support this. If your MAJOR/MINOR, and SHORT TV does not work in QAM 256 Please revert NAME so they don’t overlap to QAM 64 mode. and create issues. Vecoax Compact RF series modulator Manual...
  • Page 7 – Advance options for users who require Specific PID’s or Fixed EDID information. Please don’t change these unless you understand your required PID’s or EDID per Cable Provider instructions or PVI Tech Support request. Vecoax Compact RF series modulator Manual...
  • Page 8 HDMI source is forced to only output at that resolution set. Usual for HDMI sources that change resolution on the fly ex DirecTV Gene Boxes or another Cable provider STB’s. Vecoax Compact RF series modulator Manual...
  • Page 9 PID’s or EDID on TV. per Cable Provider • AUDIO FORMAT – Set your desired Audio instructions or PVI Tech Format. AC3 is the Default Standard for ATSC Support request. and QAM mode. • Vecoax Compact RF series modulator Manual...
  • Page 10 PID’s or EDID SERVICE NAME – Name of the Channel you per Cable Provider wish to use. 4-6 Characters max depending instructions or PVI Tech on TV. • Support request. AUDIO – Default is MPEG Vecoax Compact RF series modulator Manual...
  • Page 11 – Advance options for users who require Specific PID’s or Fixed EDID information. Please don’t change these unless you understand your required PID’s or EDID per Cable Provider instructions or PVI Tech Support request. Vecoax Compact RF series modulator Manual...
  • Page 12 Specific PID’s or Fixed EDID overlap and create issues. information. Please don’t change these unless you understand your required PID’s or EDID per Cable Provider instructions or PVI Tech Support request. Vecoax Compact RF series modulator Manual...
  • Page 13 – Advance options for users who require Specific PID’s or Fixed EDID information. Please don’t change these unless you understand your required PID’s or EDID per Cable Provider instructions or PVI Tech Support request. Vecoax Compact RF series modulator Manual...
  • Page 14 TV’s no matter the distance. If your system works without one then it is not necessary. Again this is a Suggestion and not required for operation of your devices. Vecoax Compact RF series modulator Manual...
  • Page 15 PID’s to be set which can be set in the ADVANCE MENU in order for the Set to box to be able to read the channel. Vecoax Compact RF series modulator Manual...
  • Page 16 If your HDMI source has Compressed Audio or Dolby Digital Enabled it is recommended to set your HDMI source to Stereo PCM or Uncompressed Audio to ensure you get a clean audio signal to your TV. Double compression can cause a lot of audio skipping issues. Vecoax Compact RF series modulator Manual...
  • Page 17 Note: A higher delay will occur with these modes due to the delivery of the information to the tuner in form of chucks rather than picture by picture. Vecoax Compact RF series modulator Manual...
  • Page 18 Once you have your settings applied hit Broadcast to push the changes to the unit. This might take a second for the unit to update its settings. You can save these settings for future use or with other units for easier setup. Vecoax Compact RF series modulator Manual...
  • Page 19 Check your included power adapter. Ensure that you have a solid connection and the DC jack is screwed on correctly. I SEE THE PVI LOGO BUT NO VIDEO IS PLAYING!? WHY? Check your HDMI connection. Check the HDMI source Resolution and please ensure you have a FIXED resolution set.
  • Page 20 Quality to “HIGH.” A very slight change in image quality will happen as well as an increase in delay between menus GUI’s due to the information handling sent to your TV. Please refer to Vid Quality settings in the manual above for more information. Vecoax Compact RF series modulator Manual...
  • Page 21 Please refer to your settings of the modulator you are replacing and copy the settings as best as possible such as Frequencies, Channel Number, Name, etc. Please refer to the, “CUSTOMIZATION SETTINGS,” above. Vecoax Compact RF series modulator Manual...
  • Page 22 This will allow the 1080P signal to pass. If your TV tuner does not support 1080P through the tuner you will not receive any signal or video. If this happens, switch it back to “Interlacing.” Vecoax Compact RF series modulator Manual...
  • Page 23 TeamViewer. You can download and install a copy of TEAMVIEWER Version 11 from teamviewer.com or we can provide you a temporarily access link by opening a Ticket and requesting support. Vecoax Compact RF series modulator Manual...
  • Page 24 EXAMPLE 1.1 so it will go to the button number 1 on the TV remote Channel Number QAM / CDSREF Carrier (MHz) 6 MHz Apart Subband "T" Channels Lowband 57.00 63.00 69.00 75.00 79.00 or 81.00 Vecoax Compact RF series modulator Manual...
  • Page 25 Pro Video Instruments 85.00 or 87.00 Midband 93.00 99.00 105.00 111.00 117.00 Midband 123.00 129.00 135.00 141.00 147.00 153.00 159.00 165.00 171.00 Highband Vecoax Compact RF series modulator Manual...
  • Page 26 Pro Video Instruments 177.00 183.00 189.00 195.00 201.00 207.00 213.00 Superband 219.00 225.00 231.00 237.00 243.00 249.00 255.00 261.00 267.00 273.00 Vecoax Compact RF series modulator Manual...
  • Page 27 Pro Video Instruments 279.00 285.00 291.00 297.00 Hyperband 303.00 309.00 315.00 321.00 327.00 333.00 339.00 345.00 351.00 357.00 363.00 369.00 375.00 Vecoax Compact RF series modulator Manual...
  • Page 28 Pro Video Instruments 381.00 387.00 393.00 399.00 405.00 411.00 417.00 423.00 429.00 435.00 441.00 447.00 453.00 459.00 465.00 Ultraband 471.00 477.00 Vecoax Compact RF series modulator Manual...
  • Page 29 Pro Video Instruments 483.00 489.00 495.00 501.00 507.00 513.00 519.00 525.00 531.00 537.00 543.00 549.00 555.00 561.00 567.00 573.00 579.00 585.00 Vecoax Compact RF series modulator Manual...
  • Page 30 Pro Video Instruments 591.00 597.00 603.00 609.00 615.00 621.00 627.00 633.00 639.00 645.00 Jumboband 651.00 657.00 663.00 669.00 675.00 681.00 687.00 Vecoax Compact RF series modulator Manual...
  • Page 31 Pro Video Instruments 693.00 699.00 705.00 711.00 717.00 723.00 729.00 735.00 741.00 747.00 753.00 759.00 765.00 771.00 777.00 783.00 789.00 795.00 Vecoax Compact RF series modulator Manual...
  • Page 32 Pro Video Instruments 801.00 807.00 813.00 819.00 825.00 831.00 837.00 843.00 849.00 855.00 861.00 867.00 873.00 879.00 885.00 891.00 897.00 903.00 Vecoax Compact RF series modulator Manual...
  • Page 33 Pro Video Instruments 909.00 915.00 921.00 927.00 933.00 939.00 945.00 951.00 957.00 963.00 969.00 975.00 981.00 987.00 993.00 999.00 Vecoax Compact RF series modulator Manual...
  • Page 34 You can set ANY memory position number on the TV by setting the Major/Minor Number as you prefer. EXAMPLE 1.1 so it will go to the button number 1 on the TV remote (frequencies in MHz) 6 MHz Apart Channel ATSC FREQUENCY VHF high-band (band III) Vecoax Compact RF series modulator Manual...
  • Page 35 Pro Video Instruments Channel ATSC FREQUENCY UHF band Channel ATSC FREQUENCY Vecoax Compact RF series modulator Manual...
  • Page 36 Pro Video Instruments Channel ATSC FREQUENCY Vecoax Compact RF series modulator Manual...
  • Page 37 Pro Video Instruments Channel ATSC FREQUENCY Vecoax Compact RF series modulator Manual...
  • Page 38 Pro Video Instruments Vecoax Compact RF series modulator Manual...
  • Page 39 497142 channel 18 503142 channel 19 509142 channel 20 515142 channel 21 521142 channel 22 527142 channel 23 533142 channel 24 539142 channel 25 545142 channel 26 551142 channel 27 557142 channel 28 563142 channel 29 Vecoax Compact RF series modulator Manual...
  • Page 40 629142 channel 40 635142 channel 41 641142 channel 42 647142 channel 43 653142 channel 44 659142 channel 45 665142 channel 46 671142 channel 47 677142 channel 48 683142 channel 49 689142 channel 50 695142 channel 51 Vecoax Compact RF series modulator Manual...
  • Page 41 737142 channel 58 743142 channel 59 749142 channel 60 755142 channel 61 761142 channel 62 767142 channel 63 773142 channel 64 779142 channel 65 785142 channel 66 791142 channel 67 797142 channel 68 803142 channel 69 Vecoax Compact RF series modulator Manual...
  • Page 42 DVBT CHANNELS APPENDIX Please download the DVBT additional PDF for your country available on our Tech Support Website – pvisupport.com EUROPE/NEW ZEALAND = 8 MHz band AUSTRALIA = 7 MHz Band COLOMBIA = 6 MHz Band Vecoax Compact RF series modulator Manual...
