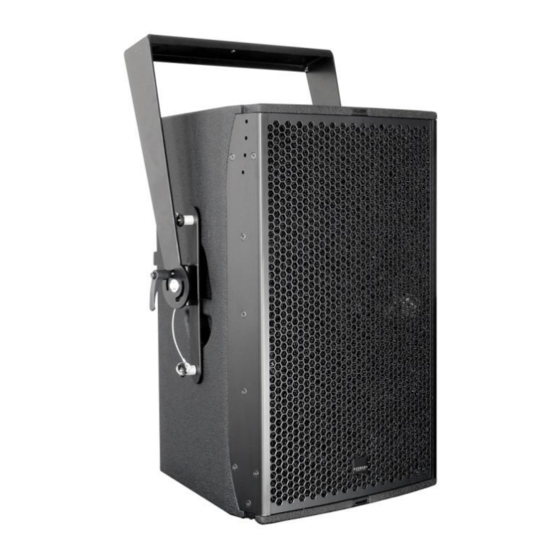

Seeburg K24 dp User Manual

Hide thumbs Also See for K24 dp:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
K24 dp
Version 3.2
18.05.2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K24 dp and is the answer not in the manual?

Questions and answers

Related Manuals for Seeburg K24 dp

Summary of Contents for Seeburg K24 dp

  • Page 1 User Manual K24 dp Version 3.2 18.05.2020...

  • Page 2: Table Of Contents

    K24 dp 1 Contents Contents Contents .......................... 2 Foreword .......................... 3 Safety instructions ......................4 Connectors/Indicators ....................6 Connection panel ........................6 Connectors ..........................7 Controls ........................... 8 Status indication ........................8 Operation ......................... 9 Starting up..........................9 Selecting a bank ........................9 Setting level ..........................

  • Page 3: Foreword

    2400 Watt + 700 Watt power (AES) and a DSP controller. Various pre- configured presets and volume settings are available for selection. The K24 dp is available in a 60°x50° and a 90°x60° version. The same controller presets apply for both versions.

  • Page 4: Safety Instructions

    K24 dp 3 Safety instructions Safety instructions Acoustic Even a low input level can result in a sound pressure level at the loudspeaker which can be damaging to your hearing. Do not remain in close proximity to the loudspeaker when it is being operated. Use hearing protection.
  • Page 5 K24 dp 3 Safety instructions If the loudspeaker is connected to a power source in which the volt- age is too high, a protective mechanism is triggered which reliably safeguards the amplifier module and DSP. Once triggered, the pro- tection must be renewed by a qualified service technician.

  • Page 6: Connectors/Indicators

    K24 dp 4 Connectors/Indicators Connectors/Indicators 4.1 Connection panel PowerCon blue (2) XLR connectors (1) PowerCon grey (3)

  • Page 7: Connectors

    4.2 Connectors XLR connectors (1) The K24 dp should be connected with a standard symmetrically wired XLR cable. To connect the input signal to further devices, use the male XLR Loop thru connector. To obtain full power per- formance from the system, the signal source should be able to provide a minimum of 6 dBu distor- tion free output voltage.

  • Page 8: Controls

    K24 dp 4 Connectors/Indicators 4.3 Controls Mode button: Switch between the modes Status / Level and Presets. Set button: Set various values and Mute on/off. 4.4 Status indication Mute LED: Lights red when the system is muted (press the Set button in Status Mode), or in technically critical conditions.

  • Page 9: Operation

    K24 dp 5 Operation Operation 5.1 Starting up When the system is switched on, it retains the settings from the previous usage. This also applies to the Bank selection. The system is then in the Status Mode. If the red Mute LED is lit as a result of the previous setting, no signal will be passed.

  • Page 10: Setting Level

    (e.g. for applications without a supervising technician). The Safe Limit function is independent of the selected preset. If the Safe limit function is switched on, the K24 dp is operating in Safe Limit mode, regardless of which preset is selected.

  • Page 11: Reprogramming Of Dp-Speakers With Preset Audio Files

    3. Make sure your computer's volume is set to 100%. 4. Load the ".wav" file received from SEEBURG acoustic line into a music player. 5. Press the play button. 6. After a successful programming operation, the Mute LED turns off.

  • Page 12: Technical Specifications

    K24 dp 6 Technical specifications Technical specifications 2 x 12" Nd / 1,4" Nd Speaker Components Description High Power HiMid System Amp Power LF: 2400 W RMS / 110-230 V HF: 700 W RMS / 110-230 V Rated Current 2,2 A @ 230 V...

  • Page 13: Declaration Of Conformity

     DIN EN 60065  DIN EN 55103-1:1996, classes E1 to E4  DIN EN 55103-2:1996, classes E1 to E4 Declared by: Winfried Seeburg, SEEBURG acoustic line GmbH Place and date: Senden, 01.01.2018 Legally binding sign: ____________________________________________ Die Anhänge sind Bestandteil dieser Erklärung. Diese Erklärung bescheinigt die Übereinstimmung mit den genannten Richtlinien, beinhaltet jedoch keine Zusicherung von Eigenschaften.
  • Page 14 Benutzerhandbuch / User Manual Irrtum bei Beschreibung sowie technische Änderungen vorbehalten. Alle SEEBURG acoustic line Produkte sind nur für den gewerblichen Einsatz bestimmt. All specifications are current at the time of publishing but are subject to change. SEEBURG acoustic line...
