Summary of Contents for Pallas ENJOY COOL

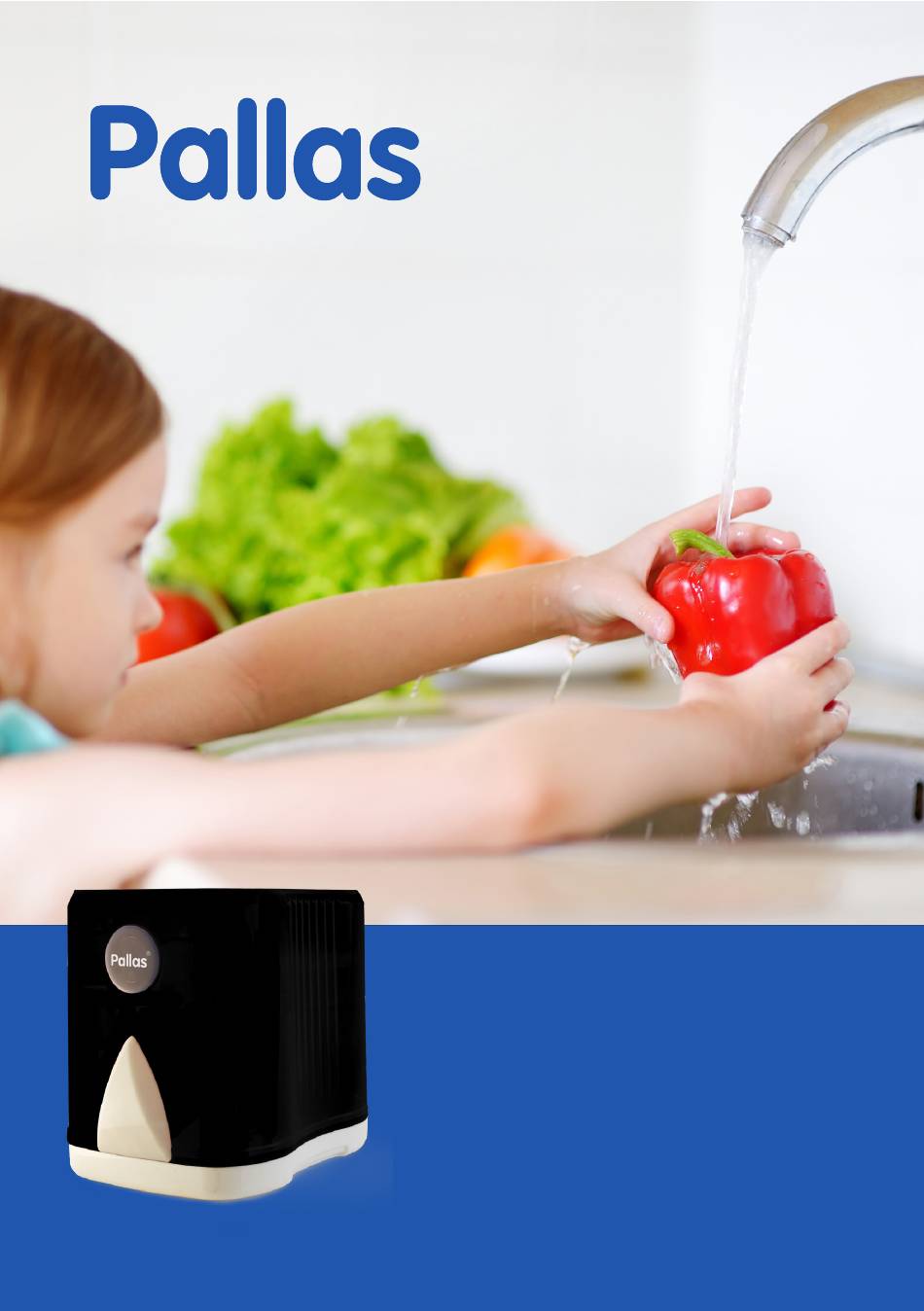

- Page 1 ® ® COMMERCIAL & DOMESTIC RO COMMERCIAL & DOMESTIC RO ® PALLAS ENJOY COOL MANUAL...
- Page 2 DEAR CUSTOMER, Water Treatment Systems use Reverse Osmosis System which is one of the advanced technologies in the world. Water Treatment Systems have been designed to remove physical, chemical and microbiological pollutants in water and to produce water in drinkable quality. Water Treatment Systems not only produce drinkable water but also produce water in best quality for meeting the needs of domestic...
-
Page 3: Table Of Contents
GENERAL INFORMATION .....................4 PURIFICATION STAGES IN UNDERCOUNTER REVERSE OSMOSIS SYSTEM ....5 WORKING PRINCIPLE ....................5 POINTS TO BE CONSIDERED BEFORE INSTALLATION OF THE DEVICE ......6 BOX CONTENTS AND ASSEMBLY PARTS ..............7 DEVICE PROPERTIES ....................8 INSTALLATION AND ASSEMBLY ...................9 MAINTENANCE AND CLEANING ..................11 START-UP AFTER MAINTENANCE ................14 WARRANTY CONDITIONS ...................15 IMPORTANT SAFETY AND ENVIRONMENTAL INSTRUCTIONS &... -
Page 4: General Information
Design of the reverse osmosis systemrequires va- and original parts supplied byan authorized service rious technical knowledge and experience such as must be used. product water quality,raw water analysis, type of membrane etc. | ENJOY COOL... -
Page 5: Purification Stages In Undercounter Reverse Osmosis System
ION REMOVAL IN REVERSE OSMOSIS ION AND ORG. PESTICIDE REMOVAL ( % ) ION AND ORG. PESTICIDE REMOVAL ( % ) Aluminum 97-98 Nickel 97-99 Ammonium 85-95 Nitrate 93-96 Arsenic 94-96 Phosphate Magnesium 96-98 Potassium Bicarbonate 95-96 Radioactivity 95-98 Bromide 93-96 Radium Cadmium... -
Page 6: Points To Be Considered Before Installation Of The Device
TREATMENT DEVICE FLOW SCHEME WATER SUPPLY FAUCET TANK 1. PRE-FILTER 5. SECOND CARBON 9. STORAGE TANK 2. FIRST CARBON 6. RAW WATER 10. PRESSURE REDUCER 3. SEDIMENT FILTER / CTO 7. PUMP 11. FAUCET 4. R.O (50-100 GPD) 8. WASTEWATER | ENJOY COOL... -
Page 7: Box Contents And Assembly Parts
MANUAL BOX CONTENTS AND ASSEMBLY PARTS Reverse Osmosis Device Metal Ball Valve 1/4” Faucet 10. 75 GPD Dynamic Pump (available in model with pump) 12” Inline Block Carbon Cartridge Filter (CTO) 11. 24 Volt 1,5 Amper Adapter 12” Gac Carbon Cartridge Filter (UDF) (available in model with pump) 10”... -
Page 8: Device Properties
600.000 pascals Max. Inlet TDS (ppm) 500 ppm 500 ppm Inlet Diameter 6 mm 6 mm NOTE: The equipments used in the product are in compliance with Water Quality, CE and NSF standards. The equipments are certified. | ENJOY COOL... -
Page 9: Installation And Assembly
MANUAL INSTALLATION AND ASSEMBLY HOW TO ASSEMBLE SINGLE BATTERY WATER INTAKE DOUBLE BATTERY WATER INTAKE WATER INTAKE IN UNDER COUNTER Extension 3-way adapter 3-way adapter 1/4 Ball Valve 1/4 Ball Valve FIGURE A-2 1. Before the installation, turn off the valve of main feedwater line orthe inlet valve. - Page 10 Ÿ B: Product water tube is connected to RO faucet. Ÿ C: The tube at the outlet of post carbon is conne- RO FAUCET cted to product water line. WASTEWATER Ÿ D: The drain tube is connected to wastewater outflow line. WATER INLET | ENJOY COOL...
-
Page 11: Maintenance And Cleaning
START-UP AFTER INSTALLATION Once you have assembled and installed all the !! IMPORTANT !! components, turn on the water supply first tocheck for leaks.Then, turn on the faucet slowly. At the first *During the first few days after installation, air bubbles stage, water will run from the faucet slowly. - Page 12 The children must not play with the device. The maintenance must not be carried out by the children Do not forget to connect the power plug to the socket in models without observance of an adult. with pump. | ENJOY COOL...
- Page 13 REPLACEMENT OF POST CARBON FILTER Ÿ Turn off the water supply and open drinking wa- Water inlet direction Water outlet direction ter faucet. Ÿ Loose tubing unions at inlet and outlet and dis- Flow card the used post-carbon. Ÿ Disconnect the union placed at the outlet of the filter.
-
Page 14: Start-Up After Maintenance
10 (ten) years from the delivery date. The warranty is applicable only to defects in the device and we are not responsible for any other cost. No claim of indemnity can be made under any other name. | ENJOY COOL... -
Page 15: Warranty Conditions
WARRANTY CONDITIONS EXCLUSIONS FROM THIS WARRANTY Ÿ Damages or defects due to natural disasters. Ÿ Damages or defects resulting from running the The warranty excludes defects caused by the misu- device with water below 5oC degrees and above se of water treatment device. The consumer should 40oC degrees. -
Page 16: Important Safety And Environmental Instructions & Consumer Rights
| ENJOY COOL... -
Page 17: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Action No water supply Ceck if water enters the system Faulty connection to power Check the electrical connections THE DEVICE DOES source NOT WORK Damaged adapter Replace it or contact service Faulty low pressure switch Replace it or contact service Water supply valve is closed Open the water supply valve NO PRODUCT (PURIFIED) -
Page 18: Frequently Asked Questions
Contact the seller, dealer, agent or representative office where you have purchased the product. The warranty peri- od of the product is 2 (two) years. You can contact us within this period in case of any dispute, damage or defect not resulting from misuse; | ENJOY COOL... - Page 19 DELIVERY DATE AND LOCATION AUTHORIZED SIGNATURE / STAMP PRODUCT TYPE : WATER TREATMENT DEVICE BRAND : ENJOY COOL MODEL : LUX WITH PUMP - WITH OUT PUMP / CLASS WITH PUMP - WITH OUT PUMP WARRANTY : 2 YEARS MAX. REPAIR TIME...
- Page 20 DECLARATION OF CONFORMITY We hereby declare that we manufacture the products in compliance with the requirements of Low Voltage Directive 2014/35 / EU as described below. Product : ENJOY COOL Models : LUX WITH PUMP / CLASS WITH PUMP Conformity...
