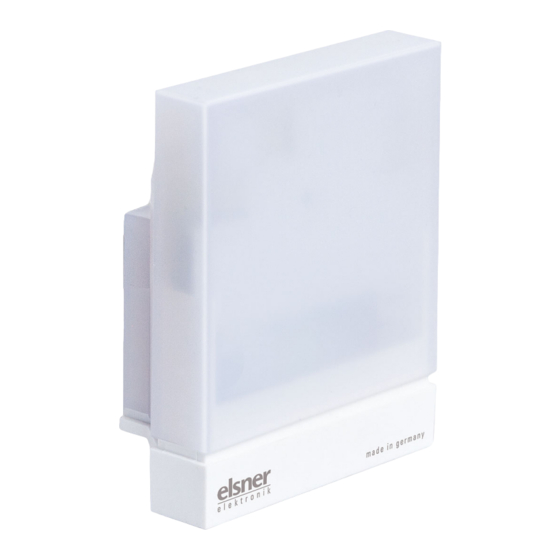

Vari KNX 3L, Vari KNX 3L-T,
Vari KNX 3L-TH, Vari KNX 3L-TH-D,
Vari KNX 3L-TH-D GPS
Combined brightness sensors
Item numbers
70382 Vari KNX 3L
70383 Vari KNX 3L-T
70384 Vari KNX 3L-TH
70389 Vari KNX 3L-TH-D
70390 Vari KNX 3L-TH-D GPS
Installation and Adjustment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vari KNX 3L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elsner Vari KNX 3L

Summary of Contents for Elsner Vari KNX 3L

  • Page 1 Vari KNX 3L, Vari KNX 3L-T, Vari KNX 3L-TH, Vari KNX 3L-TH-D, Vari KNX 3L-TH-D GPS Combined brightness sensors Item numbers 70382 Vari KNX 3L 70383 Vari KNX 3L-T 70384 Vari KNX 3L-TH 70389 Vari KNX 3L-TH-D 70390 Vari KNX 3L-TH-D GPS...

  • Page 3: Table Of Contents

    6.16.Air pressure measurement ................... 65 6.17.Wind threshold values ................... 66 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany Sensors Vari KNX 3L • from ETS programme version 1.0 Status: 18.06.2019 • Errors excepted. Subject to technical changes.
  • Page 4 6.25.2. AND logic connection inputs ..............92 6.25.3. Connection inputs of the OR logic ............. 97 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany Sensors Vari KNX 3L • from ETS programme version 1.0 Status: 18.06.2019 • Errors excepted. Subject to technical changes.
  • Page 5 The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to- date version of the manual is available.
  • Page 6 Clarification of signs...

  • Page 7: Description

    The model Vari KNX 3L-TH-D GPS also receives the GPS signal for time and lo- cation and uses it to compute the position of the sun (azimuth and elevation).

  • Page 8: Scope Of Delivery

    KNX +/- bus connector terminal BCU type Integrated micro controller PEI type Group addresses max. 2000 Assignments max. 2000 Brightness sensor: Measurement range 0 lux … 150,000 lux Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 9 Measurement range 0% RH … 100% RH Resolution 0.1% RH Accuracy ±7,5% RH at 0...10% RH ±4,5% RH at 10...90% RH ±7,5% RH at 90...100% RH Pressure sensor: Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 10 Accuracy ±0,5°C at -30...+25°C ±1,5°C at -30...+45°C Vari KNX 3L: Ambient temperature Operation -30…+50°C, Storage -30…+70°C Communication objects: The product conforms with the provisions of EU directives. Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 11: Installation And Start-Up

    2.2. Installation location Due to the GPS receiver, the Sensor Vari KNX 3L-TH-D GPS must be installed out- side. The other models can be mounted outside or inside. The Vari KNX 3L-TH-D GPS, Vari KNX 3L-TH-D and Vari KNX 3L-TH should be protected from condensation.
  • Page 12 Temperature variations from such sources of interference must be corrected in the ETS in order to ensure the specified accuracy of the sensor (temperature offset). Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 13: Device Design

    Temperature and humidity sensor for Vari KNX 3L-TH-D GPS, Vari KNX 3L-TH-D, Vari KNX 3L-TH. Temperature sensor for Vari KNX 3L-T. Programming key on the bottom of the housing (recessed), see Addressing the de- vice Wall/Pole holder Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 14: Installing The Device

    If the power lead is to be hidden when in- stalled, it must emerge from the wall in the vicinity of the rear of the housing (marked area). Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 15 Dimensions in mm. Varia- tions are possible for tech- nical reasons A/B 2× longitudinal holes 8 mm × 5 mm Position of the cable outlet (rubber gasket) in the housing Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 16: Connection

    Cable guide 2.4.3. Connection The connector is in the lower part of the housing. Fig. 12 Connect the device to the KNX bus via the pluggable terminal (+|-). Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 17: Completing The Installation

    8 mm. Use a thin object to reach the button, e.g. a 1.5 mm² wire. Fig. 14 a+b Programming LED (under the semi- transparent cover) Programming button for teaching the device Housing from below Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 18: Maintenance

    If there is major soiling, the function of the sensor may be compromised. ATTENTION The device may be damaged if water penetrates the housing. • Do not clean with high pressure cleaners or steam jets. Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 19: Transfer Protocol

    R-CT [1.1] DPT_Switch 1 bit Temperature sensor: External Input -WCT [9.1] DPT_Val- 2 bytes measurement ue_Temp Temperature sensor: Measured value Output R-CT [9.1] DPT_Val- 2 bytes ue_Temp Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 20 1 to 0 PeriodSec Temp. threshold value 3: Switching Output R-CT [1.1] DPT_Switch 1 bit output Temp. threshold value 3: Switching Input -WC- [1.1] DPT_Switch 1 bit output block Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 21 -WC- [7.5] DPT_Time- 2 bytes value 2: Delay from 1 to 0 PeriodSec Brightness sensor 1 threshold Output R-CT [1.1] DPT_Switch 1 bit value 2: Switching output Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 22 Input/ RWCT [9.4] DPT_Val- 2 bytes value 2: Absolute value Output ue_Lux Brightness sensor 2 threshold Input -WC- [1.1] DPT_Switch 1 bit value 2: (1:+ | 0:-) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 23 -WC- [7.5] DPT_Time- 2 bytes value 1: Delay from 1 to 0 PeriodSec Brightness sensor 3 threshold Output R-CT [1.1] DPT_Switch 1 bit value 1: Switching output Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 24 Total brightness threshold value 1: Input/ RWCT [9.4] DPT_Val- 2 bytes Absolute value Output ue_Lux Total brightness threshold value 1: Input -WC- [1.1] DPT_Switch 1 bit (1:+ | 0:-) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 25 Total brightness threshold value 4: Input -WC- [7.5] DPT_Time- 2 bytes Delay from 1 to 0 PeriodSec Total brightness threshold value 4: Output R-CT [1.1] DPT_Switch 1 bit Switching output Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 26 Twilight brightness threshold Input/ RWCT [9.4] DPT_Val- 2 bytes value 4: Absolute value Output ue_Lux Twilight brightness threshold Input -WC- [1.1] DPT_Switch 1 bit value 4: (1:+ | 0:-) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 27 Input -WC- [7.5] DPT_Time- 2 bytes from 0 to 1 PeriodSec Humidity threshold value 1: Delay Input -WC- [7.5] DPT_Time- 2 bytes from 1 to 0 PeriodSec Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 28 Models with humidity sensor only (70384, 70389, 70390) Dewpoint: Measured value Output R-CT [9.1] DPT_Val- 2 bytes ue_Temp Coolant temp.: Threshold value Output R-CT [9.1] DPT_Val- 2 bytes ue_Temp Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 29 Air pressure sensor: Pressure range Output R-CT [16.0] text DPT_String_ASCII bytes Air pressure threshold value 1: Input/ RWCT [14.58] DPT_Val- 4 bytes Absolute value Output ue_Pressure Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 30 [7.5] DPT_Time- 2 bytes Delay from 0 to 1 PeriodSec Air pressure threshold value 4: Input -WC- [7.5] DPT_Time- 2 bytes Delay from 1 to 0 PeriodSec Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 31 Temp. controller: Setpoint eco Input/ RWCT [9.1] DPT_Val- 2 bytes cooling Output ue_Temp Temp. controller: Setpoint, eco Input -WC- [1.1] DPT_Switch 1 bit cooling (1:+ | 0: -) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 32 Humidity controller: Control variable Output R-CT [5.1] DPT_Scaling 1 byte dehumidification of the 2nd level Humidity controller: Control variable Output R-CT [5.1] DPT_Scaling 1 byte humidification Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 33 Input 1 1126 Control variable Comparator 3: Input -WC- [5.1] DPT_Scaling 1 byte Input 2 1127 Control variable Comparator 3: Input -WC- [5.1] DPT_Scaling 1 byte Input 3 Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 34 Output R-CT [1.1] DPT_Switch 1 bit 1156 Computer 2: Block (1: block) Input -WC- [1.1] DPT_Switch 1 bit 1157 Computer 3: Input I1 Input RWCT 4 bytes Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 35 1191 Computer 7: Input I3 Input RWCT 4 bytes 1192 Computer 7: Output O1 Output R-CT 4 bytes 1193 Computer 7: Output O2 Output R-CT 4 bytes Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 36 1223 Weekly timer period 4: Switch-on Input RWCT [10.1] DPT_- 3 bytes time TimeOfDay 1224 Weekly timer period 4: Switch-off Input RWCT [10.1] DPT_- 3 bytes time TimeOfDay Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 37 1244 Weekly timer period 9: Switch-off Input RWCT [10.1] DPT_- 3 bytes time TimeOfDay 1245 Weekly timer period 9: Switching Output R-CT [1.1] DPT_Switch 1 bit output Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 38 1265 Weekly timer period 14: Switching Output R-CT [1.1] DPT_Switch 1 bit output 1266 Weekly timer period 14: 8 bit output Output R-CT [5.10] DPT_Val- 1 byte ue_1_Ucount Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 39 1286 Weekly timer period 19: 8 bit output Output R-CT [5.10] DPT_Val- 1 byte ue_1_Ucount 1287 Weekly timer period 20: Switch-on Input RWCT [10.1] DPT_- 3 bytes time TimeOfDay Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 40 1332 Calendar timer period 1: End date Input RWCT [11.1] DPT_Date 3 bytes 1333 Calendar timer period 1 sequence 1: Input RWCT [10.1] DPT_- 3 bytes Switch-on time TimeOfDay Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 41 1355 Calendar timer period 3 sequence 1: Output R-CT [1.1] DPT_Switch 1 bit Switching output 1356 Calendar timer period 3 sequence 1: Output R-CT [5.10] DPT_Val- 1 byte 8 bit output ue_1_Ucount Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 42 1403 Logic input 13 Input -WC- [1.2] DPT_Bool 1 bit 1404 Logic input 14 Input -WC- [1.2] DPT_Bool 1 bit 1405 Logic input 15 Input -WC- [1.2] DPT_Bool 1 bit Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 43 [1.2] DPT_Bool 1 bit 1448 OR logic 2: 8 bit output A Output R-CT 1 byte 1449 OR logic 2: 8 bit output B Output R-CT 1 byte Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 44 Output R-CT 1 byte 1473 OR logic 8: 8 bit output B Output R-CT 1 byte 1474 OR logic 8: Block Input -WC- [1.1] DPT_Switch 1 bit Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 45: Parameter Setting

    5 … 300 seconds Logic objects 5 … 300 seconds Maximum telegram quota 1 • 2 • 5 • 10 • 20 • 50 Telegrams per sec. Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 46: Gps

    If there is no reception, GPS fault is 20 min • 30 min • 1 h • 1.5 h • 2 h … recognised after the last reception Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 47: Location

    4 towns in Austria 4 towns in Switzerland 2 towns in the USA E. longitude [degrees, -180…+180] (if input by coordinates is selected) [negative values mean "western longitude"] Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 48 (for Europe or USA summer time rules) (Day) (For user defined summer time rules) (Month) 1 ... 12; 3 (Hour) 0 ... 23; 2 (minutes) 0 ... 59 End of Summer Time: Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 49: Temperature Measurement

    5% • 10% • ... • 50% • ... • 100% Sending pattern for internal and total mea- • never sured value • periodically • on change • on change and periodically Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 50: Temperature Threshold Values

    Threshold value setting using parameters: Set the threshold values and hysteresis directly. Threshold value setting using Parameter • Communication objects Threshold value in 0.1°C -300 … 800; 200 Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 51 None • 1 s • 2 s • 5 s • 10 s • … • 2 h (If delay can be set via objects: valid until 1st communication) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 52 = 1  send 1 Switching output sends on change to 1 and periodically if switching output = 0  send 0 Switching output sends on change to 0 and periodically Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 53: Brightness Measurement Value

    Activate the required brightness threshold values at the individual sensors and at the total threshold value (in each case a maximum of four). The menus for setting the threshold values are displayed. Threshold value 1/2/3/4 No • Yes Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 54: Threshold Values 1-4

    % • absolute Hysteresis in % of the threshold value 0 … 100; 50 (for setting in %) Hysteresis in Lux 0 … 150000; 30000 (for absolute setting) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 55 Switching output sends on change to 0 do not send message • If switching output = 0  send 0 Switching output sends on change and Send switching output status periodically Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 56: Twilight Brightness Threshold Values

    Start threshold value in Lux 1 … 1000; 10 valid until first call Object value limit (min.) in Lux 1 … 1000 Object value limit (max.) in Lux 1 … 1000 Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 57 Action when locking • do not send message • send 0 • send 1 Action upon release [Dependent on the "Switching output (with 2 seconds release delay) sends" setting] Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 58: Night

    No • Yes (in seconds) Switching delay on night none • 1 s … 2 h Switching delay on day none • 1 s … 2 h Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 59: Sun Position

    If an external portion is used, all of the following settings (threshold values, etc.) are related to the overall reading. Use external measured value No • Yes Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 60: Humidity Threshold Values

    • after power supply restoration and programming Set the threshold value directly in the application program using parameters, or define them via the bus using a communication object. Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 61 • TV below = 1 |TV + hyst. above = 0 • TV below = 0 |TV + hyst. above = 1 Delays can be set via objects No • Yes (in seconds) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 62 Switching output sends on change to 0 • Do not send message • if switching output = 0  send 0 Switching output sends on change and Send switching output status periodically Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 63: Dewpoint Measurement

    Switching output sends on change to 0 and periodically 6.13. Dewpoint measurement Models with humidity sensor only (70384, 70389, 70390) The Sensors Vari KNX 3L calculate the dewpoint temperature and can output the va- lue to the bus. Sending pattern • never •...
  • Page 64 Switching delay from 1 to 0 None • 1 s • 2 s • 5 s • 10 s • … • 2 h for setting via objects: valid until 1st communication Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 65: Absolute Humidity

    6.14. Absolute humidity Models with humidity sensor only (70384, 70389, 70390) The absolute humidity value for the air is detected from the Vari KNX 3L and can be output to the bus. Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 66: Comfort Field

    Models with humidity sensor only (70384, 70389, 70390) The Sensors Vari KNX 3L can send a message to the bus if the limits of the comfort field are exceeded. In this way, it is for example possible to monitor compliance with DIN 1946 (standard values) or even to define your own comfort field.

  • Page 67: Air Pressure Measurement

    The ba- rometric air pressure is the pressure measured directly by the sensor (without compen- sation). Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 68: Wind Threshold Values

    Threshold value setpoint using Parameter • Communications object When the threshold value per parameter is specified, then the value is set. Threshold value in 10 Pa 3000 … 11000; 10200 Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 69 No • Yes Analysis of the blocking object • At value 1: block | At value 0: release • At value 0: block | At value 1: release Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 70: Temperature Pi Control

    (setting via objects is ignored). Maintain the setpoint values and extension times recei- • never ved via communication object • after power supply restoration • after power supply restoration and programming Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 71 Behaviour of the blocking object with value • 1 = Block | 0 = release • 0 = block | 1 = release Value of the blocking object after reset 0 • 1 Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 72 • Dual-level heating + dual-level cooling General setpoint values You may enter separate setpoint values for each mode or use the comfort setpoint as a basic value. Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 73 (not upon saving the setpoint value after programming) If setpoint values are entered separately: Min. object value heating/cooling -300…800; 160 (in 0.1 °C) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 74 A starting setpoint value is defined as well as a temperature range in which the setpoint value may be changed. Starting heating/cooling setpoint (in 0.1 °C) -300…800; 210 valid until first communication Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 75 (only for level 3 with 2 point control) • 8 bit object When using the control variable for a 4/6 way valve, the following applies: 0%...100% heating = 66%...100% control variable Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 76: Heating Control Level 1/2

    You should set the time appropriate to the heating system at this point (observe ma- nufacturer's instructions). Maximum control variable is reached 0...5 at setpoint/actual difference of (in °C) Reset time (in min.) 1...255; 30 Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 77 2-point-control is used for systems which are only switched to ON or OFF. Control type • 2-point-control (is determined at a higher level for com- mon control variables) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 78: Cooling Control Level 1/2

    This setting allows individual input of the parameters for PI control. Control type • PI control Setting of the controller by • Controller parameter • specified applications Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 79 2-point-control (only level 2): 2-point-control is used for systems which are only set to ON or OFF. Control type • 2-point-control is determined at a higher level for common variables Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 80: Summer Compensation

    Characteristic curve description: External temperature point 1 (in 0.1°C 0 ... 500 ; 200 increments) Outdoor temperature point 2 (in 0.1°C 0 ... 500 ; 320 increments) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 81: Humidity Pi Control

    Use humidity control No • Yes General control Sensors Vari KNX 3L can be used to control one- or two-level dehumidification or combined humidification/dehumidification. Type of control • One-level dehumidification • Two-level dehumidification •...
  • Page 82 Enter, how the setpoint value will be received from the bus. Basically, a new value can be received, or simply a command to increase or decrease. Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 83 In case of a short reset time, the control responds with a fast increase of the control variable. In case of a long reset time, the control responds somewhat less Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 84: Variable Comparator

    (if sent on change) Analysis of the blocking object • at value 1: block | at value 0: release • at value 0: block | at value 1: release Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 85: Computer

    (setting via objects is ignored). Maintain the input values received via communication • never objects • after power supply restoration • after power supply restoration and programming Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 86 • 4 byte counter without math. symbol • 4 byte counter with math. symbol • 4 byte floating point Output value (if applicable output value A1 / A2) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 87 0 [Input range depending on the type of is exceeded output] if blocked 0 [Input range depending on the type of output] Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 88 No • Yes Analysis of the blocking object • At value 1: block | At value 0: release • At value 0: block | At value 1: release Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 89: Weekly Timer

    The threshold values and delays received by the communication object Switching data should • not be retained • be retained after power restoration • be retained after power restoration and programming Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 90: Calendar Timer

    Activate the required periods for the calendar timer. The menus for setting the timer are loaded. Use period 1 No • Yes Use ... period No • Yes Use period 4 No • Yes Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 91: Calendar Clock Period 1-4

    • on change and periodically • on change to active and periodically • on change to inactive and periodically Send cycle 5 s ... 2 h; 10 s (if sent periodically) Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 92: Logic

    OR logic 8 not active • active 6.25.1. AND logic 1-8 and OR logic outputs 1-8 The same setting options are available for AND and OR logic. Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 93 0 … 255 / 100% / 360° / 127; 0 monitoring period is exceeded Output value object B if 0 … 255 / 100% / 360° / 127; 0 monitoring period is exceeded Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 94: And Logic Connection Inputs

    • Do not send message toring time • Send value exceeding [= value of the parameter "monitoring period"] 6.25.2.AND logic connection inputs Do not use Logic input 1 Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 95 Switching output 1 Temperature inverted Switching output 2 Temperature Switching output 2 Temperature inverted Switching output 3 Temperature Switching output 3 Temperature inverted Switching output 4 Temperature Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 96 Switching output 1 Humidity inverted Switching output 2 Humidity Switching output 2 Humidity inverted Switching output 3 Humidity Switching output 3 Humidity inverted Switching output 4 Humidity Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 97 Weekly timer period 4 inactive Weekly timer period 5 active Weekly timer period 5 inactive Weekly timer period 6 active Weekly timer period 6 inactive Weekly timer period 7 active Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 98 Calendar timer period 3 sequence 1 inactive Calendar timer period 3 sequence 2 active Calendar timer period 3 sequence 2 inactive Calendar timer period 4 sequence 1 active Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.

  • Page 99: Connection Inputs Of The Or Logic

    AND logic output 6 AND logic output 6 inverted AND logic output 7 AND logic output 7 inverted AND logic output 8 AND logic output 8 inverted Sensors Vari KNX 3L • Version: 18.06.2019 • Technical changes and errors excepted.
  • Page 100 Elsner Elektronik GmbH Control and Automation Engineering Sohlengrund 16 75395 Ostelsheim Phone +49 (0) 70 33 / 30 945-0 info@elsner-elektronik.de Germany +49 (0) 70 33 / 30 945-20 www.elsner-elektronik.de Technical support: +49 (0) 70 33 / 30 945-250...

This manual is also suitable for:

Vari knx 3l-tVari knx 3l-thVari knx 3l-th-dVari knx 3l-th-d gps
