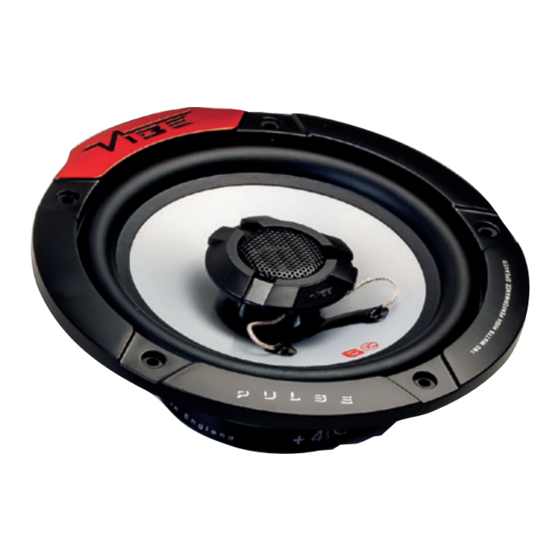

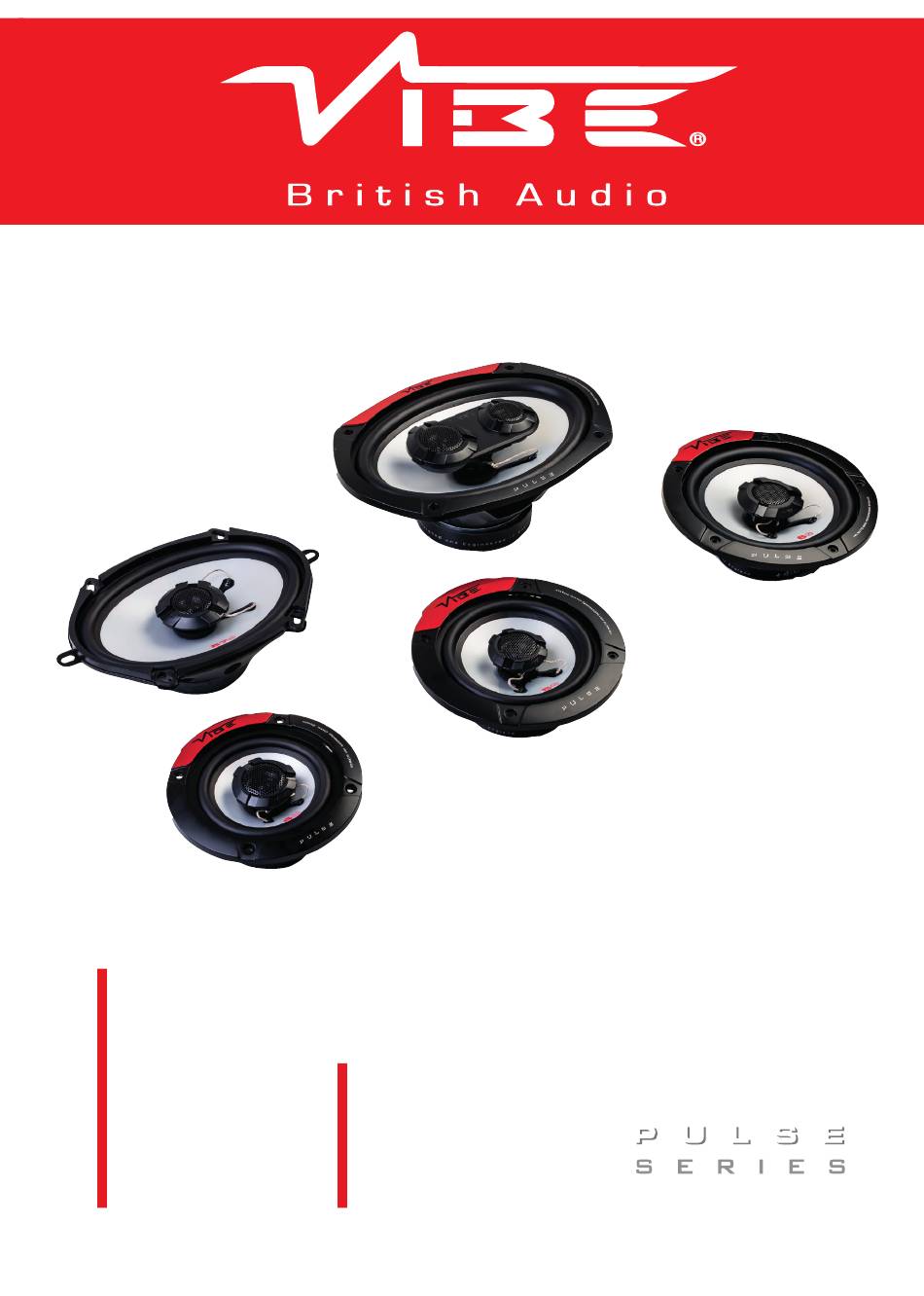

- Page 1 4 Coaxial PULSE4-V4 5 Coaxial 6 Coaxial PULSE5-V4 PULSE6-V4 57 Coaxial 69 Coaxial Coaxial Speakers PULSE57-V4 PULSE69-V4...
- Page 2 Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it.
-
Page 3: Limited Warranty
(without limitation) compensatory, direct, indirect or consequential damages, loss of data, income or profit, loss of or damage to property and claims of third parties. For the avoidance of doubt, VIBE does not limit its liability for death or personal injury to... -
Page 4: Speaker Installation
Speaker Installation Guidelines Firstly, make sure that the speakers will fit in your chosen location. This may involve the removal of the standard vehicle speakers. Please use the mounting depth and hole cut dimensions as detailed in this manual for guidance. •... - Page 5 Wiring Connections To A Headunit • Connect the speaker to the speaker wiring in the vehicle ensuring that correct polarity is observed. Positive: Black / white stripe Negative: Black Wiring Connections To An Amplifier • Connect the speaker to the speaker wiring in the vehicle ensuring that correct polarity is observed.
- Page 6 UK Technical Enquiries Call 09067031420 Calls cost 50p per minute. Call costs correct at date of publication (01/02/12) Hours of business 9.00am - 5.30pm GMT Monday - Friday. All calls are recorded for training purposes. MIDBASS Distribution PO Box 11000 B75 7WG International Technical Enquiries For international technical support please contact the distribution agent for your country.
-
Page 7: Specification
Specification Model PULSE4-V4 PULSE5-V4 PULSE57-V4 PULSE6-V4 PULSE69-V4 Type Coaxial Coaxial Coaxial Coaxial Coaxial Configuration 2-way 2-way 2-way 2-way 3-way 5.25” x 7.5” 6” x 9” Speaker Size 4” (100mm) 5.25” (133mm) 6.5” (165mm) (133 x 190mm) (150 x 222mm) RMS Power 40 watts 50 watts 60 watts... - Page 8 Designed and engineered in England Designed and engineered in England www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.twitter.com/vibecaraudio www.twitter.com/vibecaraudio www.twitter.com/vibeaudio www.twitter.com/vibeaudio...
