Vibe Pulse Series Owner's Manual
Bass enclosures
Hide thumbs
Also See for Pulse Series:
- Manual (8 pages) ,
- Owner's manual (8 pages) ,
- Owner's manual (9 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vibe Pulse Series
Summary of Contents for Vibe Pulse Series

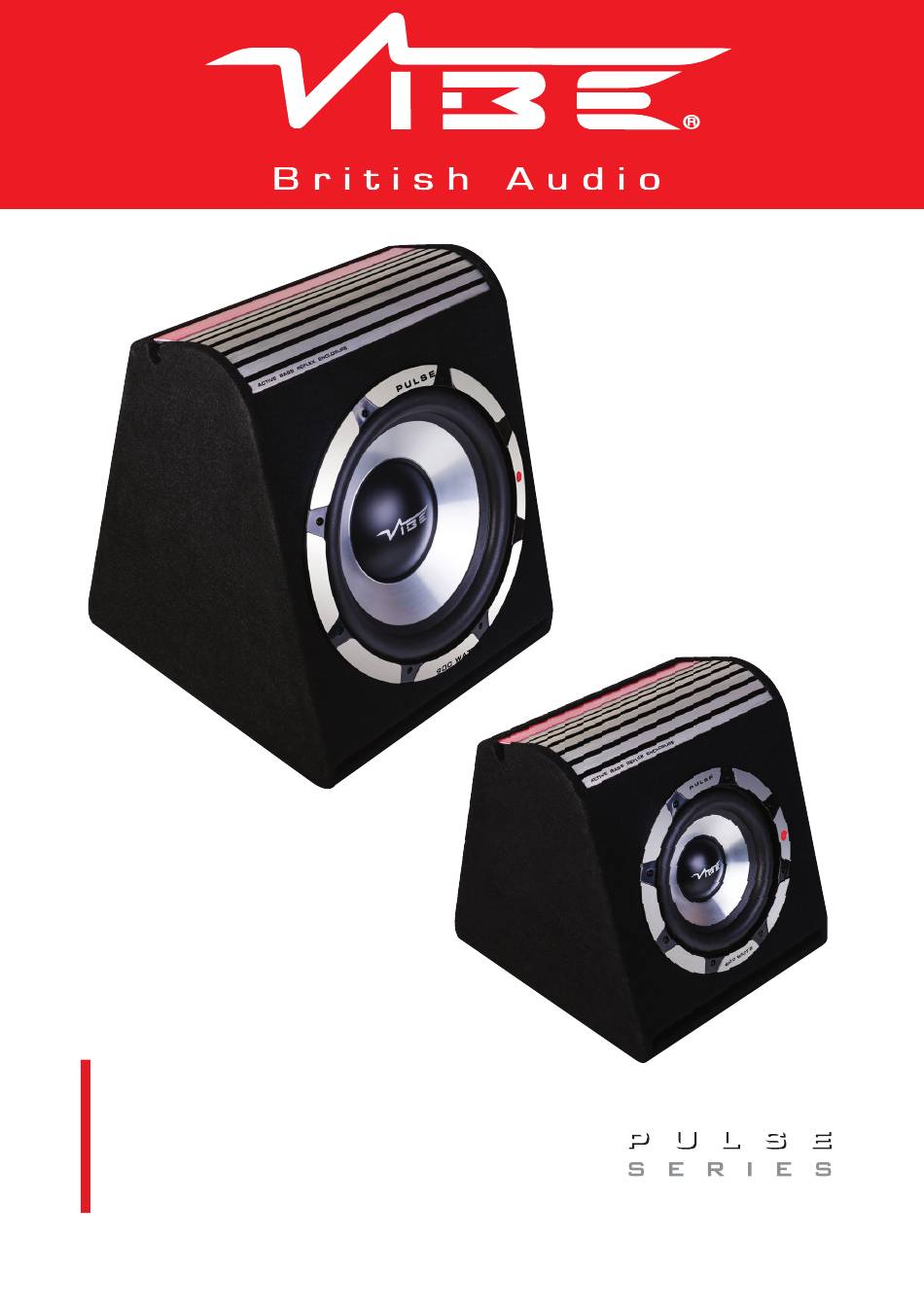

- Page 1 VENTED 8 PULSEV8-V4 VENTED 12 Bass Enclosures PULSEV12-V4...
- Page 2 Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it.
-
Page 3: Limited Warranty
(without limitation) compensatory, direct, indirect or consequential damages, loss of data, income or profit, loss of or damage to property and claims of third parties. For the avoidance of doubt, VIBE does not limit its liability for death or personal injury to... -
Page 4: Mounting Guidelines
Mounting Guidelines Your VIBE enclosure is designed with a swift installation routine in mind. Please mount the enclosure in a dry location on a solid surface. NEVER mount the amplifier upside down as this will cause the amplifier to over heat and will eventually damage the amplifier. -
Page 5: Power Cable
Power Cable • At least 10 gauge cable should be used for the power connection to the amplifier. • The power cable should be taken directly from the battery. Rubber grommets should be used when passing through any bulkheads to prevent the cable from becoming chaffed or cut. - Page 6 Terminals And Connections R E M 1. Low level input / RCA Cables For connection to any source with a low level output. Connect this to the RCA outputs on your headunit. • Please take extra care when running RCA cables from the source to the amplifier. Ensure that they are placed away from all items that can generate any interference, such as wiring harnesses etc.
-
Page 7: Installation
Installation The most common place to mount a bass enclosure is in the luggage compartment of the vehicle. Where in the luggage compartment it is mounted will have an effect on the sound produced, allowing the user to tailor the sound to suit their musical tastes. For example, if the enclosure is mounted facing the rear bumper the bass produced will be noticeably deeper than if it is fired into the rear seat. -
Page 8: Set Up Section
The gain control is now set. Crossover Setting All VIBE active enclosures come with a built in frequency control. This will allow you to set the frequency at which the crossover filter will take affect. It is variable from 50 Hz - 250 Hz. -
Page 9: Troubleshooting
Troubleshooting The Amplifier Will Not Power Up • Check for good ground connections. Ensure that the ground cable is connected directly to bare metal and not a painted surface • Using a multimeter ensure that the remote (REM) terminal has at least +12v DC. •... - Page 10 UK Technical Enquiries Call 09067031420 Calls cost 50p per minute. Call costs correct at date of publication (01/02/12) Hours of business 9.00am - 5.30pm GMT Monday - Friday. All calls are recorded for training purposes. MIDBASS Distribution PO Box 11000 B75 7WG International Technical Enquiries For international technical support please contact the distribution agent for your country.
-
Page 11: Specification
Specification PULSEV8-V4 PULSEV12-V4 Model Pulse 8 Pulse 12 Driver Dimensions 12.6” (320mm) 16.6” (422mm) Height 11.8” (300mm) 14.6” (370mm) Width 12.7” (322mm) 15.2” (385mm) Depth 200 watts 300 watts RMS Power 600 watts 900 watts Peak Power 4Ω 4Ω Impedance 4th order bass reflex 4th order bass reflex Configuration... - Page 12 Designed and engineered in England Designed and engineered in England www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.twitter.com/vibecaraudio www.twitter.com/vibecaraudio www.twitter.com/vibeaudio www.twitter.com/vibeaudio...
