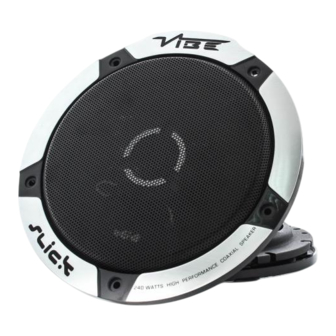

- Page 1 M A T R I X Instruction Manual C O A X I A L S P E A K E R S SLICK 4-V5 SLICK 5-V5 SLICK 6-V5 SLICK 69.2-V5 SLICK 69.3-V5...
-
Page 2: Installation
OWNERS MANUAL Congratulations on purchasing your VIBE speakers. Please read this manual in order to fully understand how to get the best results from this product and ensure that all advice on how to look after the product is followed. Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it. -
Page 3: Limited Warranty
LIMITED WARRANTY All VIBE products carry a full 12 month warranty, valid from the date of the original receipt and proof of purchase. In order to validate this warranty, the online warranty card should be completed within seven days of the original purchase date. The original receipt and packaging should be retained for this twelve month period. -
Page 4: Speaker Installation
SPEAKER INSTALLATION GUIDELINES Firstly, make sure that the speakers will t in your chosen location. This may involve the removal of the standard vehicle speakers. Please use the mounting depth and hole cut dimensions as detailed in this manual for guidance. If necessary cut any material away to allow the speaker to sit correctly. - Page 5 WIRING CONNECTIONS TO AN OEM OR AFTERMARKET HEADUNIT Connect the speaker to the speaker wiring in the vehicle ensuring that correct polarity is observed. Please refer to your headunit manual for more information. Positive: Black / white stripe Negative: Black WIRING CONNECTIONS TO AN EXTERNAL AMPLIFIER Connect the speaker to the speaker output of the ampli er ensuring that correct polarity is observed.
- Page 6 UK TECHNICAL ENQUIRIES Call 09067031420 Calls cost 50p per minute. Call costs correct at date of publication (01/02/12) ours of business .00am - 5. 0pm onday - Friday. All calls are recorded for training purposes. I BA istribution PO Bo 11000 INTERNATIONAL TECHNICAL ENQUIRIES For international technical support please contact the distribution agent for your country.
-
Page 7: Specification
SPECIFICATION S S L L I I C C K K 4 4 S S L L I I C C K K 5 5 S S L L I I C C K K 6 6 S S L L I I C C K K 692 S S L L I I C C K K 693 coaxial coaxial... - Page 8 Model: DELTABOXLC-V1 The Deltabox line convertor provides the perfect solution for integrating your aftermarket amplifier with your OEM headunit. Not only does the Deltabox line convertor derive a low level RCA input for your amplifier from the speaker output of the headunit but thanks to VIBE’s AUTO SENSE technology also provides a remote turn on for your amplifier so there is no need to add a separate switch or an ignition switched +12V supply in the vehicle.
