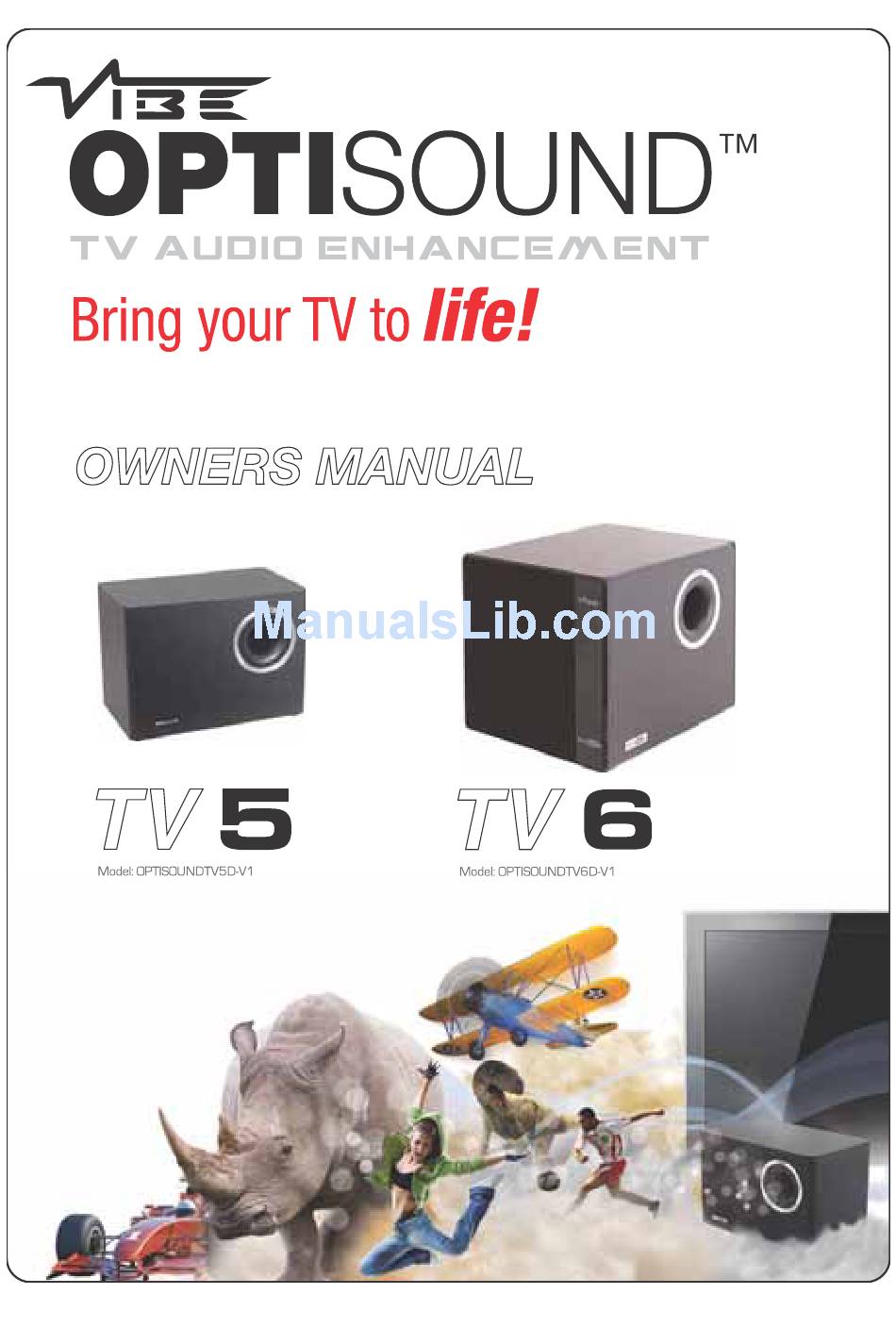

Page 2: Owners Manual
OWNERS MANUAL Congratulations on purchasing your VIBE Optisound. Please read this manual in order to fully understand how to get the best results from this product and ensure that all advice on how to look after the product is followed. Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it. - Page 3 TERMINALS AND CONTROLS 1. Analogue Input For connection to a TV / games console / set top box / DVD player / Blu-ray player with low level outputs. This is the RCA phono output from your device. 2. Digital Input For connection to a TV / games console / set top box / DVD player / Blu-ray player with an optical digital output.
- Page 4 ANALOGUE CONNECTION TO A TV SET Connecting to the TV set enables any source connected to the TV to be output through the subwoofer. Connect one end of an RCA phono lead (not included) to the analogue input of the ampli er and connect the other end to the RCA audio output of the TV set.
- Page 5 CONNECTION TO MULTIPLE DEVICES Connect one end of the supplied digital optical lead to the digital input of the ampli er and connect the other end to the digital output of the TV set. Connect each device to the TV set via a HD I lead or whatever connection method is appropriate for that device.
- Page 6 CONNECTION TO A SINGLE DEVICE Connect one end of the suplied digital optical lead to the digital input of the ampli er and connect the other end to the digital output of the device. Connect the device to the TV set via an HD I lead or whatever connection method is appropriate for that device.
- Page 7 SET UP GUIDE The VIBE Optisound has an independent volume control which allows integration with your TV speakers and a wide range of other audio equipment. To set the volume level of the Optisound please follow the procedure below. Connect the Optisound to yout TV or device. et the bass level control on the Optisound to it s minimum setting which is fully anti-clockwise.
- Page 8 NOTES:...
- Page 9 NOTES:...
-
Page 10: Specifications
SPECIFICATIONS UK technical enquiries For international tecnhical support please contact the distribution agent for your country. Please visit www.vibeaudio.co.uk/contact for more details. -
Page 11: Limited Warranty
LIMITED WARRANTY port being covered or obstructed...
