345 Bayview Avenue, Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
or visit us at
http://tech.napcosecurity.com/
(Note: Technical Service is for security professionals only)
Publicly traded on NASDAQ
Symbol: NSSC
OVERVIEW
The AL-IM2-80211 is a " Wireless / Wired" Gateway
device used within the Trilogy Networx
tem. Installation is simple, with the AL-IM2-80211 on-
ly requiring temporary access to one RJ-45 Ethernet
network cable and connection to an AC outlet.
Version 2
The AL-IM2-80211 " version 2" Gateways (notice the
"2" in the model name) are the next generation of Net-
worx Gateways. The "version 2" models are virtually
the same as the original "version 1" Gateways, but
have the added ability to expand your system with up
to 7 Expanders (model AL-IME2-EXP Expanders
cannot communicate with older "non-version 2" Gate-
ways).
Note: Version 2 Gateways CAN be mixed into an
existing system that includes older "non-version 2"
Gateways.
IMPORTANT: DL-Windows version 5.4.2 or later is
required to support version 2 Gateways and Expand-
ers.
The AL-IM2-80211 Gateway is compatible with
Alarm Lock and Continental Access products. Refer
to the documentation supplied with your software for
integration details.
Blue ID Card
We strongly recommend that when installing any mod-
el
Gateway,
a
Card" (OI357) be completed. Gateway physical loca-
tions may easily be forgotten. These ID cards may
prove very useful when replacing Gateways, when se-
lecting a particular Gateway to use to discover locks,
or whenever an installed Gateway needs to be physi-
cally located.
AL-IM2-80211 SPECIFICATIONS
WIRELESS SPECIFICATIONS
Wireless Standards: IEEE 802.11b; 802.11g
Frequency Range: 2.412 - 2.484 GHz
Output Power: 14dBm + 1.5dBm/-1.0dBm
Maximum Receive Level: -10dBm (with PER < 8%)
Data Rates With Automatic Fallback: 54Mbps - 1Mbps
AL-IM2-80211 "Wireless / Wired" Gateway
© ALARM LOCK 2018
wireless sys-
" Gateway
blue-colored
Installation Instructions
Modulation Techniques: OFDM, DSSS, CCK, DQPSK,
DBPSK, 64 QAM, 16 QAM
SECURITY
SIEEE 802.11 - PSK with AES Encryption 128-bit
Encryption: 128-bit AES Rijndael encryption
NETWORK RANGE
Gateway / Expander to Locks: Clear field range 500'.
Typical indoor range: Networx 75-175'; ArchiTech Net-
worx: 50-125'.
Gateway / Expander to Expander: Clear field range
500'. Typical indoor range: 75-175'. Note: Actual
range varies with building construction.
AL RADIO LINK
900 MHz GFSK
50 Channels
10mW power output
POWER
- Provided by UL Listed Class 2 Transformer
Peak Supply Current: 650mA
Input Voltage: 5 - 6VAC
AVERAGE POWER CONSUMPTION
1300mW (WLAN mode; maximum data rate)
300mW (WLAN mode; idle)
750mW (Ethernet Mode)
ENVIRONMENTAL
Operating Temperature: -20˚ to 60˚C (-4˚ to 140˚F)
ID
Storage Temperature: -40˚ to 85˚C (-40˚ to 185˚F)
PHYSICAL
Enclosure Size: 4.5"H x 6.0"W x 1.94"D
Weight: 0.5lbs.
The

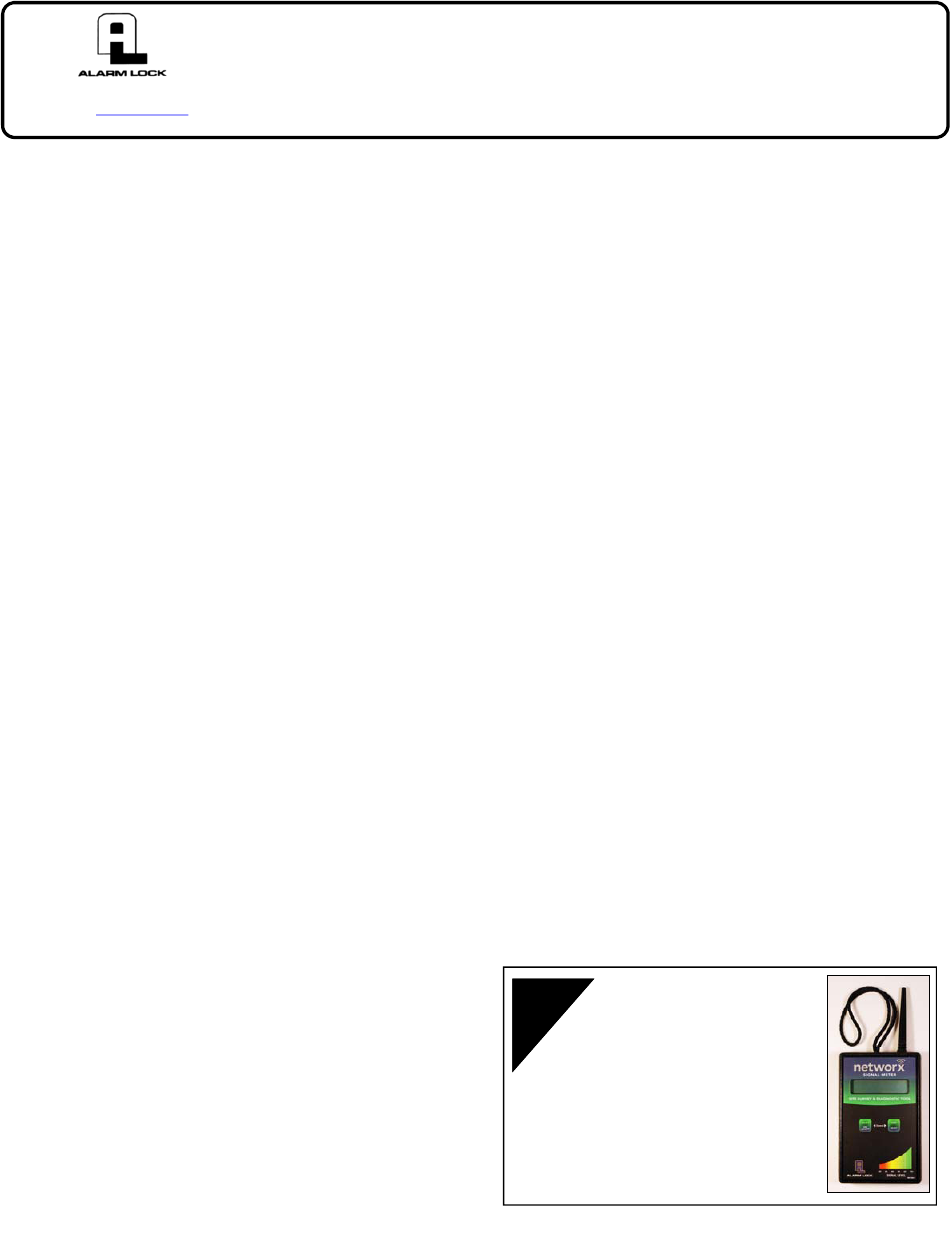

TIP
Signal Meter tool can help you
perform a site survey test of the
premises to find the optimum
location for Gateways relative to
Networx locks; as well as determine the
optimum number of Gateways (or
Expanders) needed for signal area
coverage.
See WI2092 or speak to
your Alarm Lock sales representative
for more information.
WI2209ALF 1/18
AL-NSM
Networx
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL-IM2-80211 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alarm Lock AL-IM2-80211

  • Page 1 (Note: Technical Service is for security professionals only) Publicly traded on NASDAQ Symbol: NSSC OVERVIEW Modulation Techniques: OFDM, DSSS, CCK, DQPSK, The AL-IM2-80211 is a " Wireless / Wired" Gateway DBPSK, 64 QAM, 16 QAM ™ device used within the Trilogy Networx wireless sys- tem.
  • Page 2: Mounting Instructions

    Gateways should be located within 175 feet MOUNTING INSTRUCTIONS (radially) from the intended wireless lock locations The AL-IM2-80211 rear housing must be mounted  Open areas will increase range while concrete "up" as shown on the page 7 template; i.e. when the...
  • Page 3: Connecting To A Network

    Windows on same network as wireless router or work administrator and request the following: wireless access point); Gateway receives valid IP IP Address - An address for each Alarm Lock Gate- ● address way device Using DL-Windows, Discover and add the Gate- ●...
  • Page 4 "EXPANDER GROUP" DIALS Connect RJ-45 / Apply Power Inside the Gateway are 2 rotary dials (see Fig. 4). These dials are used to set the "Expander Group" when you wish to add AL-IME2-EXP Expanders in Red LED ON your system (all AL-IME2-EXP Expanders include an (several seconds) identical set of dials).
  • Page 5: Reset The Gateway

    network), the Gateway was unable to receive a val- id IP address from the network. However, the Yel- GATEWAY LED INDICATIONS low LED will still turn on solid and the Green LED will still flicker. Do not confuse this with the Receiver On (normal operation) Yellow above valid IP address indication.
  • Page 6 NOTES...
  • Page 7 AL-IM2-80211 Mounting Template 4" 1-13/16" 3-9/32" 3-3/8"...
  • Page 8: Alarm Lock Limited Warranty

    This warranty shall not apply to any equipment, or any part In no event shall ALARM LOCK be liable for an amount in thereof, which has been repaired by others, improperly excess of ALARM LOCK's original selling price of the...
