Summary of Contents for Bestway Lay-Z-Spa MILAN AIRJET PLUS
- Page 1 OWNER’S MANUAL...
-
Page 3: Table Of Contents
MAINTENANCE pg 024 DISASSEMBLY AND STORAGE pg 026 TROUBLESHOOTING pg 028 ERROR CODES pg 030 VISIT BESTWAY YOUTUBE CHANNEL FOR INSTRUCTION VIDEOS WE SUGGEST NOT TO RETURN PLEASE VISIT: THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? BESTWAYCORP.COM/SUPPORT For FAQ, Manuals, Videos Or spare Parts, Please Visit bestwaycorp.com/support... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Carefully read, understand, and follow all information in this user manual before installing and using the spa. IMPORTANT SAFETY INSTRUCTIONS - READ AND FOLLOW ALL INSTRUCTIONS. WARNING: • The spa must be supplied through an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA. - Page 5 CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
- Page 6 in such case, please unplug and stop using the spa at once. Don’t reset the product by yourself. And you must contact the local service agent to check and repair the product. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the...
- Page 7 broken or missing. Never attempt to replace the inlet / outlet pipes. Always consult your local Aftersales centre. • RISK OF ELECTRIC SHOCK. Install at least 2m from all metal surfaces. • RISK OF ELECTRIC SHOCK. Never operate any electrical appliance when in your spa or when your body is wet.
- Page 8 • The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia. Hyperthermia occurs when the internal temperature of the body reaches a level that is several degrees above the normal body temperature of 37°C (98.6°F). The symptoms of hyperthermia include an increase in the internal temperature of the body, dizziness, lethargy, drowsiness, and fainting.
- Page 9 aids, but they are not substitutes for continuous and competent adult supervision. Safety equipment - It is recommended to keep rescue equipment (e.g. a ring buoy) by the spa (if appropriate). - Keep a working phone and a list of emergency phone numbers near the spa.
- Page 10 NOTE: • Please examine equipment before use. Notify Bestway at the customer service address listed on this manual for any damaged or missing parts at the time of purchase. Verify that the equipment components represent the models that you had intended to purchase.
- Page 11 SELECTED LOCATION Indoor and outdoor & above ground & portable wiring & portable spa WARNING: The selected location has to be able to support of supporting the expected load. WARNING: An adequate drainage system has to be provided to deal with overflow water for both indoor and outdoor installations.
- Page 12 package. • Please keep at least 1m clearance around the spa. • Consult your local government authority for water regulations related to convenient water supply for filling the spa. • Recommended to consult experts and/or local authorities to apply local or national laws/regulations relating to childproof fencing, safety barriers, lighting, and other safety requirements.
- Page 13 these effects it is best to provide plenty of ventilation to the selected area. An architect can help determine if more ventilation is needed. • Consult your local government authority for installation regulations. • Keep suitable air treatment in the spa chamber (ventilation and dehumidification) regularly to preserve the bathers’...
-
Page 14: Pre-Setup Check List
PRE-SETUP CHECK LIST PARTS CHECKS Please examine equipment before use. Notify Bestway customer service of any ® damaged or missing parts at the time of purchase. Verify that the equipment components represent the model that you had intended to purchase. For reference please use the diagrams below. - Page 15 MILAN AIRJET PLUS S100202 (60029) — 1.96 m x 71 cm / 77" x 28" 4 - 6 1.5-2ºC/h 1,325 L/h 1.2PSI 916 L 954 kg 3-4ºF/h 350 gal/h 0.08Bar 242 gal 2,103 Lb P05208 P05335 P05212 P03427 P05341 P05343 P05345 P6575ASS16 P05347...
-
Page 16: Installation
INSTALLATION < 10°C(50°F) SET-UP INSTRUCTION IN WINTER > 15°C(59°F) > 15°C(59°F) It is important to follow these suggestions if you are setting up the spa during the winter period. This will prevent damage to the PVC material and extend the life of your product drastically. •... - Page 17 P6609ASS16 5 min V ANCOUVER 0.48-0.69Bar 7-10PSI...
- Page 18 PRCD Test RESET RESET RESET RESET TEST TEST TEST TEST NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale. 1. Insert the plug. 2. Press the “RESET” button, the indicator light turns on. 3. Press the “TEST” button, the indicator light turns off. 4.

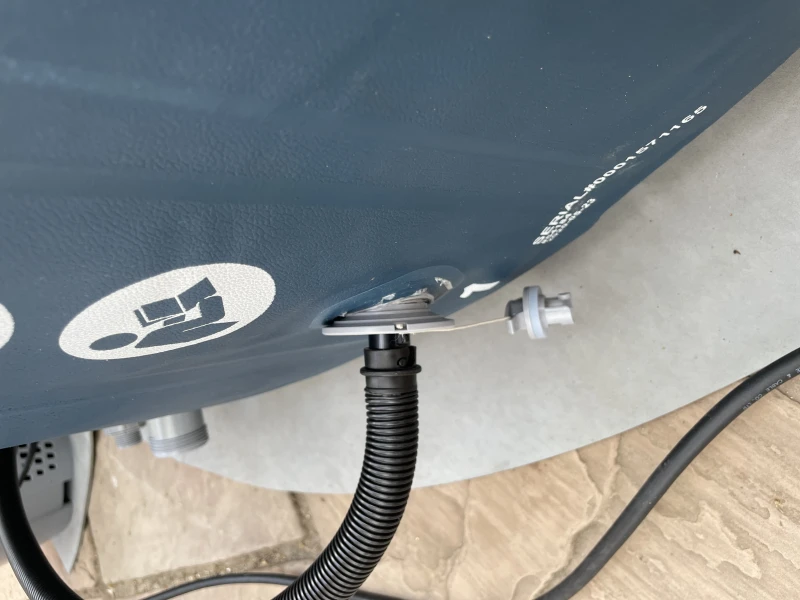

- Page 19 SPA PUMP EQUIPOTENTIAL BONDING TERMINAL It is recommended to arrange for a qualified electrician to connect the spa pump to an equipotential bonding terminal using a minimum 2.5mm solid copper conductor. When inflating, you will notice that air will be expelled from the area where the air hose connects to the pump, this is normal for technique requirements.
-
Page 20: Using The Spa
USING THE SPA A. LOCK/UNLOCK BUTTON: The pump has a 5-minute auto-lock, this light will turn on. To lock or unlock the pump, place a finger over the lock/unlock button for 3 seconds. B. POWER-SAVING TIMER BUTTON: Designed to help avoid wasting power by setting the time and duration of the heating cycle for the spa. - Page 21 attached. Air can accumulate inside the spa and cause irreparable damage to the cover and bodily harm. NOTE: Heat and massage system work together to create a warm massage experience. 2-LEVEL MASSAGE REGULATION: push once full power massage, push again 50% power, push again to shut off. E/G.
- Page 22 • You can keep the spa on during winter when the temperature is lower than 6°C(42.8°F). The Freeze Shield™ system automatically keeps the water temperature between 6°C(42.8°F) and 10°C(50°F), and it will prevent the water from freezing. Important: If the water temperature is below 6°C(42.8°F), the spa heater must always be on.
- Page 23 Syncing your mobile device with the Spa Pump The SPA App can be downloaded here: www.lay-z-spa.co.uk/app. Alternatively, you can search for “Lay-Z-Spa App” in Google. If you are using an Android mobile device, you will need to activate GPS. If you are using an IOS device, this is not required.
-
Page 24: Maintenance
MAINTENANCE CAUTION: You must ensure the pump is unplugged before beginning spa maintenance to avoid risk of injury or death. Adding Air: Your spa will require additional air to be added from time to time. Changes in temperature from day to night will change the pressure in the spa and may cause a certain amount of deflation. - Page 25 Water quality will be directly related to frequency of use, number of users and overall maintenance of the spa. The water should be changed every 3 days if there is no chemical treatment being performed with the water. It is highly recommended to use tap water for spa filling to minimize the influence of unwanted content, such as minerals.
-
Page 26: Disassembly And Storage
DISASSEMBLY AND STORAGE DRAINING THE SPA P05347 NOTE: Dry the spa pool. Only for Drop stitch Spa P6932ASS16 P00217 NOTE: Dry the spa pool NOTE: Lift up the spa when there is only a little water left. Damages to the handles are not covered under the warranty. - Page 27 Make sure the spa and pump are completely dry. This is essential to extend the life of the spa. We recommend using the pump to blow dry the spa, pump and pipes. Remove the filter sets and discard the used filter cartridges. Re-attach the two stopper caps onto the spa’s inlet and outlet valves.
-
Page 28: Troubleshooting
Bestway strives to provide the most trouble-free spas on the market. If you experience any problems whatsoever, do not hesitate to contact Bestway or your authorized dealer. Here are some helpful tips to help you to diagnose and rectify some common sources of trouble. - Page 29 Problems Probable Causes Solutions The pump has been connected to the If the router your pump is connected to is dual-band and currently not wrong band connecting to a 2.4GHz network, please switch to another band of the same router (2.4GHz) and try to pair pump heater again. 5GHz networks are not supported.
-
Page 30: Error Codes
ERROR CODES CAUSES REASONS SOLUTIONS The water flow sensors work 1. The water flow sensor flags didn’t fall back into the 1. Unplug the plug gently, strike the side of the pump but not violently, and plug it without pressing the filter or heat correct position. -
Page 32: Bestwaycorp.com/Support
Bestway Central & South America Ltda, Salar Ascotan 1282, Parque Enea, Pudahuel, Santiago, Chile Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia Tel: Australia: (+61) 29 0371 388; New Zealand: 0800 142 101 Exported by/Exporté...
