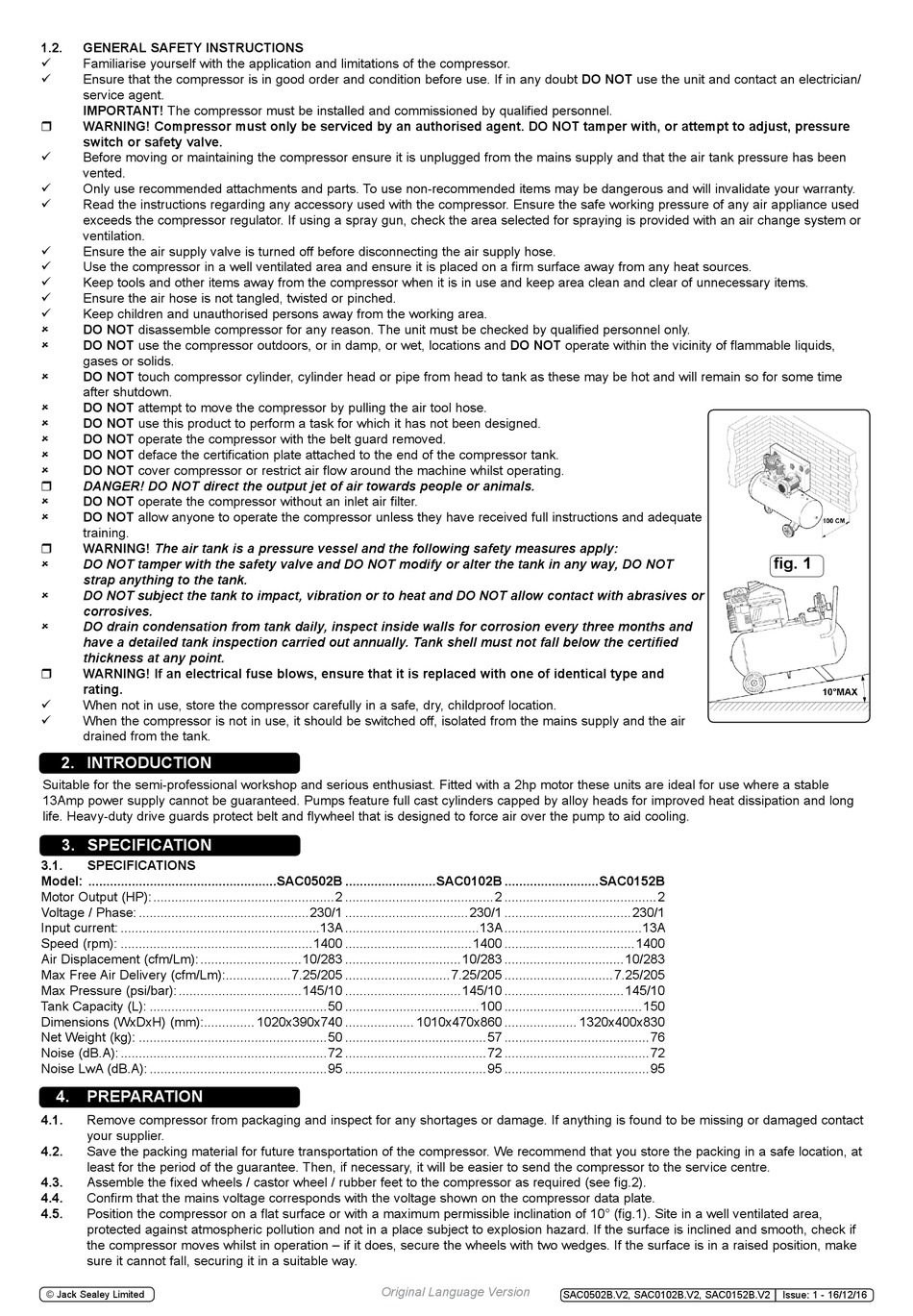

1.2.
GENERAL SAFETY INSTRUCTIONS
Familiarise yourself with the application and limitations of the compressor.
Ensure that the compressor is in good order and condition before use. If in any doubt DO NOT use the unit and contact an electrician/
service agent.
IMPORTANT! The compressor must be installed and commissioned by qualified personnel.
WARNING! Compressor must only be serviced by an authorised agent. DO NOT tamper with, or attempt to adjust, pressure
switch or safety valve.
Before moving or maintaining the compressor ensure it is unplugged from the mains supply and that the air tank pressure has been
vented.
only use recommended attachments and parts. To use non-recommended items may be dangerous and will invalidate your warranty.
read the instructions regarding any accessory used with the compressor. Ensure the safe working pressure of any air appliance used
exceeds the compressor regulator. If using a spray gun, check the area selected for spraying is provided with an air change system or
ventilation.
Ensure the air supply valve is turned off before disconnecting the air supply hose.
use the compressor in a well ventilated area and ensure it is placed on a firm surface away from any heat sources.
Keep tools and other items away from the compressor when it is in use and keep area clean and clear of unnecessary items.
Ensure the air hose is not tangled, twisted or pinched.
Keep children and unauthorised persons away from the working area.
DO NOT disassemble compressor for any reason. The unit must be checked by qualified personnel only.
DO NOT use the compressor outdoors, or in damp, or wet, locations and DO NOT operate within the vicinity of flammable liquids,
gases or solids.
DO NOT touch compressor cylinder, cylinder head or pipe from head to tank as these may be hot and will remain so for some time
after shutdown.
DO NOT attempt to move the compressor by pulling the air tool hose.
DO NOT use this product to perform a task for which it has not been designed.
DO NOT operate the compressor with the belt guard removed.
DO NOT deface the certification plate attached to the end of the compressor tank.
DO NOT cover compressor or restrict air flow around the machine whilst operating.
DANGER! DO NOT direct the output jet of air towards people or animals.
DO NOT operate the compressor without an inlet air filter.
DO NOT allow anyone to operate the compressor unless they have received full instructions and adequate
training.
WARNING! The air tank is a pressure vessel and the following safety measures apply:
DO NOT tamper with the safety valve and DO NOT modify or alter the tank in any way, DO NOT
strap anything to the tank.
DO NOT subject the tank to impact, vibration or to heat and DO NOT allow contact with abrasives or
corrosives.
DO drain condensation from tank daily, inspect inside walls for corrosion every three months and
have a detailed tank inspection carried out annually. Tank shell must not fall below the certified
thickness at any point.
WARNING! If an electrical fuse blows, ensure that it is replaced with one of identical type and
rating.
When not in use, store the compressor carefully in a safe, dry, childproof location.
When the compressor is not in use, it should be switched off, isolated from the mains supply and the air
drained from the tank.
2. INTRODUCTION
Suitable for the semi-professional workshop and serious enthusiast. Fitted with a 2hp motor these units are ideal for use where a stable
13Amp power supply cannot be guaranteed. Pumps feature full cast cylinders capped by alloy heads for improved heat dissipation and long
life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
3. SPECIFICATION
3.1.
SPECIFICATIONS
Model: ....................................................SAC0502B .........................SAC0102B ..........................SAC0152B
Motor output (HP): ..................................................2 .........................................2 ..........................................2
Voltage / Phase: ...............................................230/1 ..................................230/1 ...................................230/1
Input current: .......................................................13A .....................................13A ......................................13A
Speed (rpm): .....................................................1400 ...................................1400 ....................................1400
Air Displacement (cfm/lm): ............................10/283 ................................10/283 .................................10/283
Max Free Air Delivery (cfm/lm): ..................7.25/205 .............................7.25/205 ..............................7.25/205
Max Pressure (psi/bar): ..................................145/10 ................................145/10 .................................145/10
Tank Capacity (l): .................................................50 .....................................100 ......................................150
Dimensions (WxDxH) (mm): .............. 1020x390x740 ................... 1010x470x860 .................... 1320x400x830
net Weight (kg): ....................................................50 .......................................57 ........................................76
noise (dB.A): .........................................................72 .......................................72 ........................................72
noise lwA (dB.A): .................................................95 .......................................95 ........................................95
4.
PREPARATION
4.1.
remove compressor from packaging and inspect for any shortages or damage. If anything is found to be missing or damaged contact
your supplier.
4.2.
Save the packing material for future transportation of the compressor. We recommend that you store the packing in a safe location, at
least for the period of the guarantee. Then, if necessary, it will be easier to send the compressor to the service centre.
4.3.
Assemble the fixed wheels / castor wheel / rubber feet to the compressor as required (see fig.2).
4.4.
Confirm that the mains voltage corresponds with the voltage shown on the compressor data plate.
4.5.
Position the compressor on a flat surface or with a maximum permissible inclination of 10° (fig.1). Site in a well ventilated area,
protected against atmospheric pollution and not in a place subject to explosion hazard. If the surface is inclined and smooth, check if
the compressor moves whilst in operation – if it does, secure the wheels with two wedges. If the surface is in a raised position, make
sure it cannot fall, securing it in a suitable way.
© Jack Sealey limited
Original Language Version
SAC0502B.V2, SAC0102B.V2, SAC0152B.V2
fig. 1
Issue: 1 - 16/12/16
