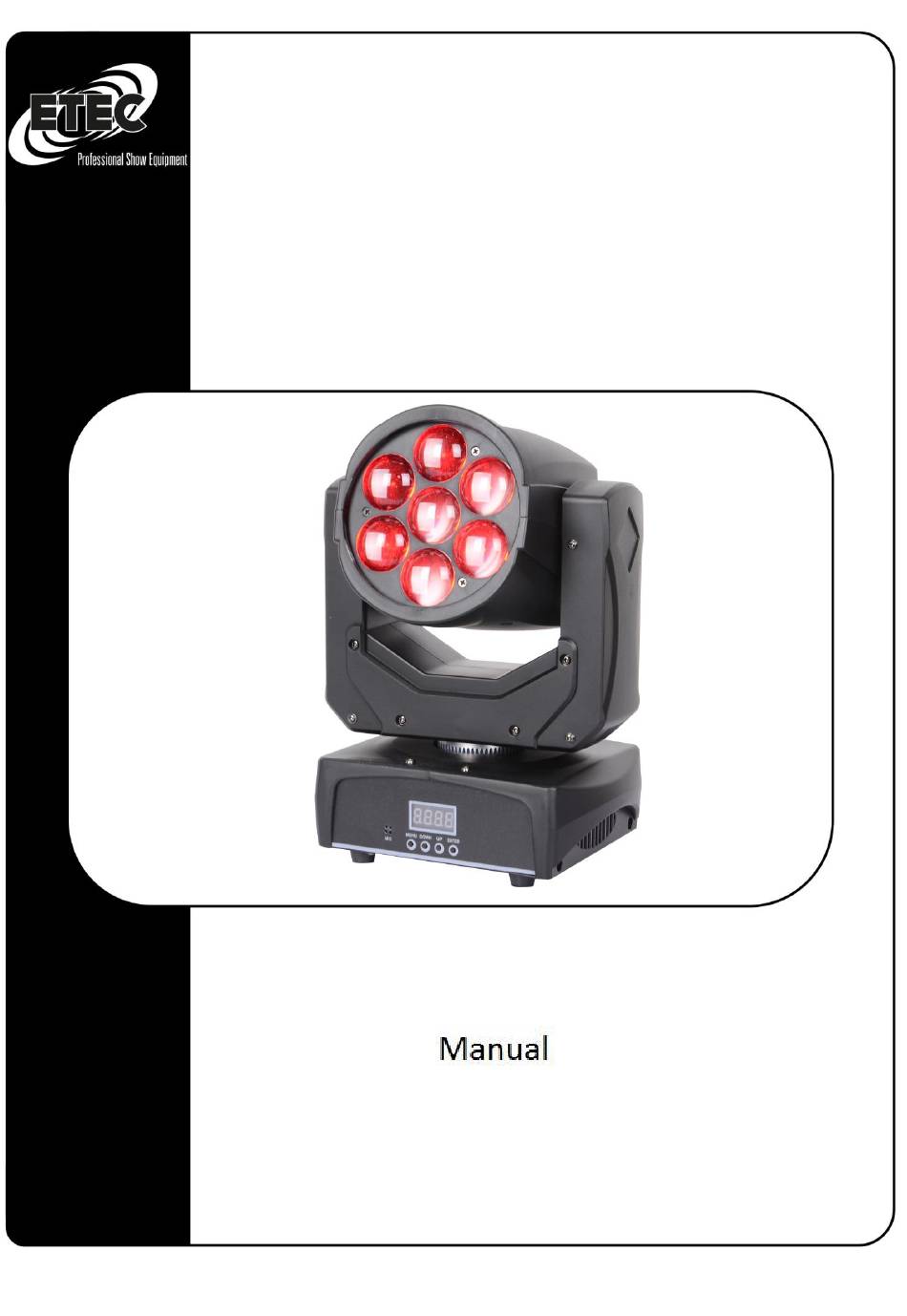

- Page 1 LED Moving Head 7Z...
- Page 2 Congratulations! You have acquired an excellent and innovative product from ETEC. In order to ensure the greatest possible performance of the device, read this manual carefully and familiarize yourself with the most important functions. This manual contains important information on the operation and maintenance of this unit.
-
Page 3: Important Safety Information
condition and the safe handling, the safety instructions and warnings in this manual must be observed. Please note that we assume no liability for damages caused by manual changes. This device does not contain any user-serviceable parts. Only carry out maintenance work by qualified technicians. Important safety information The manufacturer is not liable for damage caused by the failure to observe this manual or unauthorized modifications to this product. -
Page 4: Intended Use
• Suitable for adult use only. The appliance must be placed out of the reach of children. Never leave the connected device unattended. • Only use replacement fuses of the same type and performance as the fuses already contained. • The user is responsible for the correct positioning and correct operation of the device. The manufacturer is not liable for damages caused by incorrect use or incorrect installation. -
Page 5: Power Connections
Observe the European and international guidelines for installation, mounting on trusses and all other safety measures. Do not attempt to install the unit yourself! Always have the installation carried out by qualified personnel! The mounting stand or the installation wall must be capable of carrying 10 times the weight of the appliance without deforming. -
Page 6: Maintenance
Maintenance The device is almost maintenance-free. Nevertheless, the device should be cleaned regularly. If the unit is not cleaned regularly, the light output of the unit will be considerably reduced over time. Disconnect the unit from the mains and wipe it with a damp cloth. Never immerse the unit in any liquid. - Page 7 Product description: The ETEC 7Z is a moving head with zoom function, which produces wonderful colored wash effects with its beam angle of 6 to 36 degrees. The 7Z Moving Head has seven 15 watt 4in1 LEDs. The true RGBW color mixing under the lens ensures perfect colors on the stage, at the club, at exhibitions, TV studios and many other applications.
- Page 8 1. LED Diode 2. Display 3. Button: Mode, Up, Down, Enter 4. DMX linking IN/OUT 5. PowerCON IN Functions and settings: LCD display MENU: Function mode selection, such as DMX, Master / Slave, Auto, Sound Mode and Brightness settings DOWN/UP: Previous or Next function Enter: Confirm and save the selection Menu overview: Page | 8...
- Page 9 Page | 9...
- Page 10 Setting up a DMX connection DMX is a standardized transmission protocol that allows all DMX-compatible models of the various manufacturers to be connected to one another and controlled by a single mixer. Free DMX data transfer between different DMX devices are used. The connection arrangement between the devices has no influence on the DMX addressing.
- Page 11 Page | 11...
- Page 12 Technical and optical changes within the scope of product improvement are reserved - even without prior notice. No liability shall be accepted for printing errors and resulting faulty operation. If in doubt, consult your ETEC dealer! Space for your notes: _________________________________________________________________________________...
