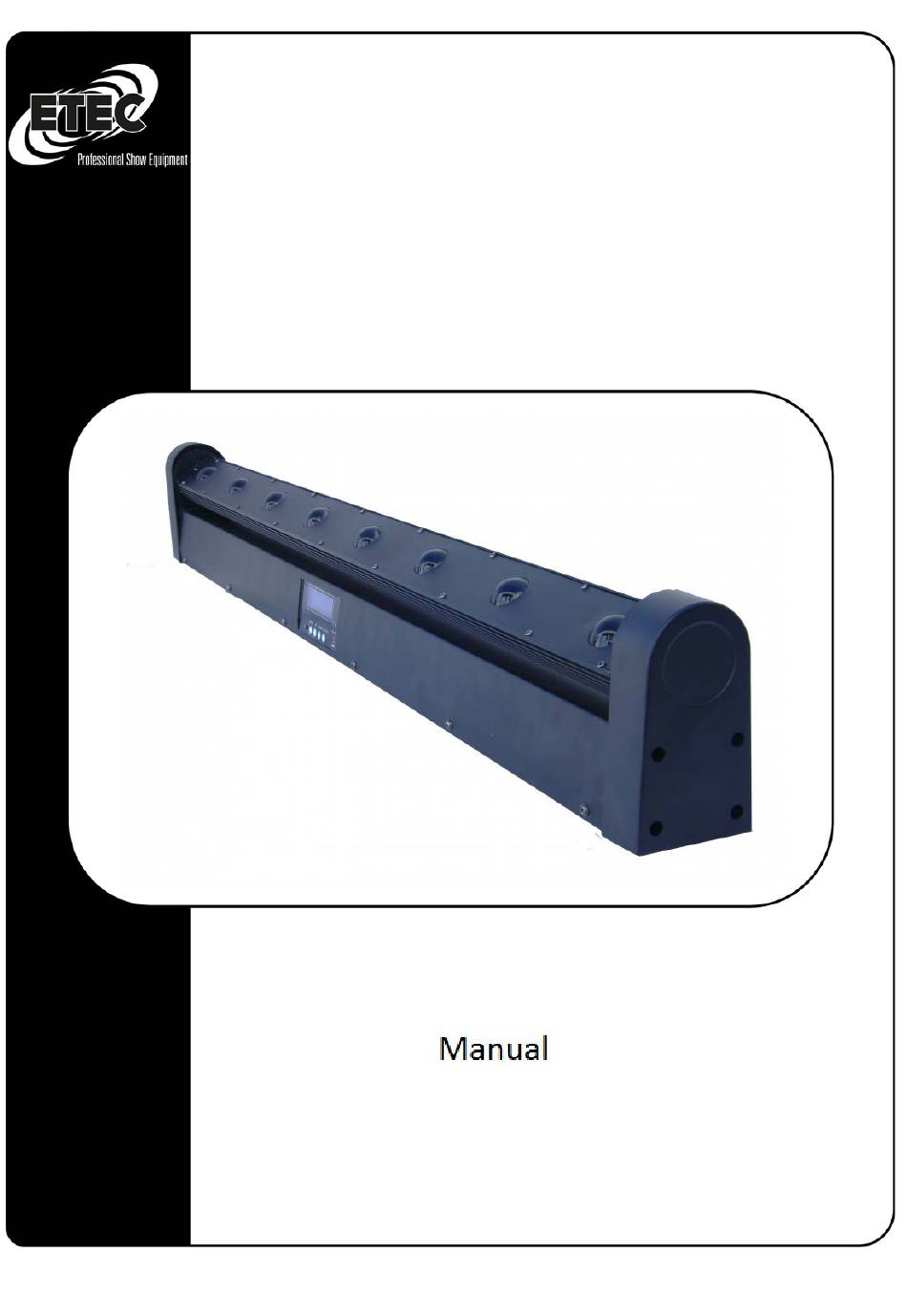

- Page 1 LED Roto Bar 8x10 Watt RGBW...
-
Page 2: Table Of Contents
Table of Contents s Introduction ............................. 3 Important safety information........................5 Intended Use ............................7 Disposal ..............................8 Maintenance ............................8 Replace fuse ............................9 Product description ..........................9 Technical specifications ......................... 10 Functions and settings ........................... 10 Menu Display Overview ........................11 Menu explanation .......................... -
Page 3: Introduction
Introduction Congratulations! You have acquired an excellent and innovative product from ETEC. In order to ensure the greatest possible performance of the device, read this manual carefully and familiarize yourself with the most important functions. This manual contains important information on the operation and maintenance of this unit. - Page 4 Warnings ATTENTION! Protect the device from rain and moisture! Disconnect the power cord before opening the housing! PLEASE READ THESE INSTRUCTIONS FOR YOUR SAFETY CAREFULLY, BEFORE OPERATING THE UNIT FOR THE FIRST TIME! Safety instructions: All persons who install, operate and maintain this equipment must: •...
-
Page 5: Important Safety Information
Important safety information The manufacturer is not liable for damage caused by the failure to observe this manual or unauthorized modifications to this product. • The power cord must never come into contact with other cables! Use the power cord and all connections to the power supply. - Page 6 • There may be too little smoke or odor during initial start-up. This is not unusual and does not necessarily mean that the device is not working properly. • Repairs, maintenance and electrical connections may only be carried out or handled by qualified technicians.
-
Page 7: Intended Use
Intended Use • This unit is not suitable for continuous operation. Maintaining regular operating breaks increases the life of the unit. • The minimum distance between the light source and the illuminated area is 0.5 meters • The maximum ambient temperature for operation is ta = 45 ° C and must never be exceeded. -
Page 8: Disposal
Disposal Do not throw the appliance into normal household waste at the end of its useful life. This product is subject to European Directive 2002/96 / EC. • Dispose of the product via an approved disposal company or through your municipal waste disposal facility. -
Page 9: Replace Fuse
Replace fuse Overvoltages, short circuits or unsuitable mains connections can cause a fuse to burn through. The device does not work when the fuse is blown. If your device burns a backup, perform the following steps. 1. Disconnect the mains plug. Insert a flat screwdriver into the slot of the fuse cover. -
Page 10: Technical Specifications
Technical specifications Power consumption: 180W Power supply: 90 - 230V Voltage frequency: 50 / 60Hz Diodype: 4in1 Number of diodes: 8 Diode Power: 10W Display: LCD matrix Color: RGBW Dimmer Linear: 0 - 100% Number of DMX channels: 9/38 DMX standard: DMX 512 Control interface: 4 buttons Operating modes: DMX512, automatic, music-controlled, manual, master / slave DMX IN: XLR - 3-pin... -
Page 11: Menu Display Overview
Menu Display Overview d001 001-512 38 CH 9001 001-512 9 CH Au01-22 Au01 Effect 1 Au02 Effect 2 。。。 。。。。 Au022 Effect 22 Soud Sound control SP01 01-08 Speed control rPoF motorforwardturnning Motor reversal M000 0-255 Motor deflection angle Menu explanation D001 DMX Channel modes with 38 DMX control channels 9001... -
Page 12: Dmx Channel Allocation
DMX channel allocation 9 Channels Channel Function Description Pan moving 0-255 Channel Function Description Pan moving speed 0-255 Speed settings Built-in effect Internal programs Built-in effect speed Internal programs Speed settings Master Dimmer 0-255 Master Dimmer 0-100% RotDimmer 0-255 Red Dimmer 0-100% GrünDimmer 0-255 Green Dimmer 0-100% BlauDimmer... - Page 13 54-64 Internal program5 65-75 Internal program6 76-86 Internal program7 87-97 Internal program8 98-108 Internal program9 109-119 Internal program10 120-130 Internal program11 131-141 Internal program12 142-152 Internal program13 153-163 Internal program14 164-174 Internal program15 175-185 Internal program16 186-196 Internal program17 197-207 Internal program18 208-218 Internal program19...
- Page 14 BAR2 G Dimmer 0-255 Green Dimmer 0-100% BAR2 B Dimmer 0-255 Blue Dimmer 0-100% BAR2 W Dimmer 0-255 White Dimmer 0-100% …… …… …… BAR8 R Dimmer 0-255 Red Dimmer 0-100% BAR8 G Dimmer 0-255 Green Dimmer 0-100% BAR8 B Dimmer 0-255 Blue Dimmer 0-100% BAR8 W Dimmer 0-255 White Dimmer 0-100%...
-
Page 15: Installation / Projector Mounting
Installation / projector mounting CAUTION Danger to life! During the installation, the Provisions of the BGV C1 and EN 60598-2-17! The suspension devices of the projector must be designed and dimensioned so that they can withstand 10 times the payload for 1 hour without permanent harmful deformation. The installation must always be carried out with a second independent suspension, For example, a suitable fishing net. - Page 16 CAUTION Risk of fire! When installing the appliance, please ensure that there are no easily flammable materials (decoration, etc.) at a distance of at least 0.5 m. The device can be placed directly on the ground or installed in any possible position in the trussing without changing its functional properties.
-
Page 17: Setting Up A Dmx Connection
Setting up a DMX connection DMX is a standardized transmission protocol that allows all DMX-compatible models of the various manufacturers to be connected to one another and controlled by a single mixer. Free DMX data transfer between different DMX devices are used. The connection arrangement between the devices has no influence on the DMX addressing. -
Page 18: Space For Your Notes
No liability shall be accepted for printing errors and resulting faulty operation. If in doubt, consult your ETEC dealer! Space for your notes _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ Importeur Hansaring 138-142 48268 Greven Fon: +49 (0) 25 71 - 80 5 40 42 Fax: +49 (0) 25 71 - 80 5 40 41 www.etec-professional.de...
