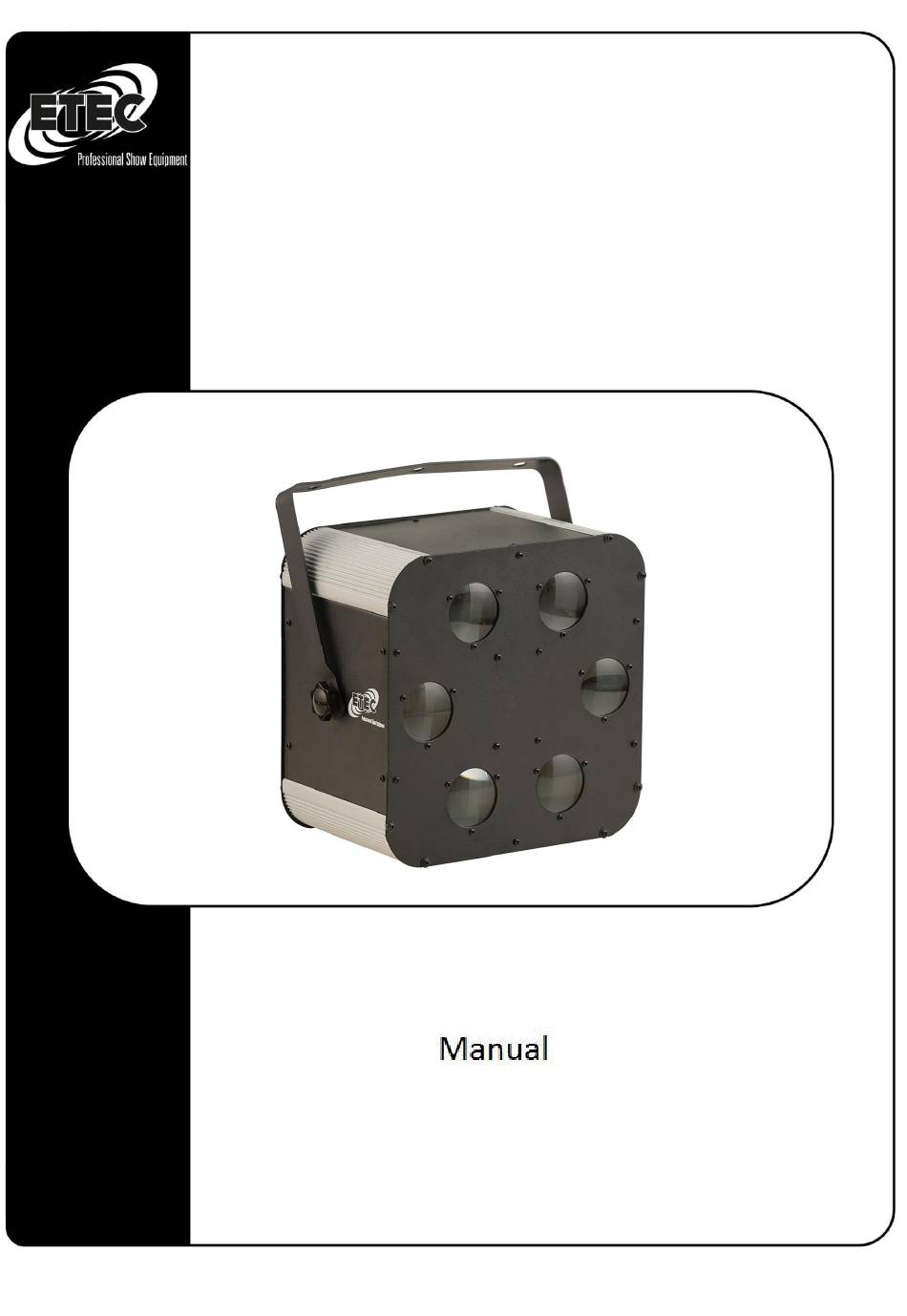

  • Page 1 LED Six Hole...
  • Page 2 Congratulations! You have acquired an excellent and innovative product from ETEC. In order to ensure the greatest possible performance of the device, read this manual carefully and familiarize yourself with the most important functions. This manual contains important information on the operation and maintenance of this unit.

  • Page 3: Important Safety Information

    condition and the safe handling, the safety instructions and warnings in this manual must be observed. Please note that we assume no liability for damages caused by manual changes. This device does not contain any user-serviceable parts. Only carry out maintenance work by qualified technicians. Important safety information The manufacturer is not liable for damage caused by the failure to observe this manual or unauthorized modifications to this product.

  • Page 4: Intended Use

    • Suitable for adult use only. The appliance must be placed out of the reach of children. Never leave the connected device unattended. • Only use replacement fuses of the same type and performance as the fuses already contained. • The user is responsible for the correct positioning and correct operation of the device. The manufacturer is not liable for damages caused by incorrect use or incorrect installation.

  • Page 5: Power Connections

    Observe the European and international guidelines for installation, mounting on trusses and all other safety measures. Do not attempt to install the unit yourself! Always have the installation carried out by qualified personnel! The mounting stand or the installation wall must be capable of carrying 10 times the weight of the appliance without deforming.

  • Page 6: Maintenance

    Maintenance The device is almost maintenance-free. Nevertheless, the device should be cleaned regularly. If the unit is not cleaned regularly, the light output of the unit will be considerably reduced over time. Disconnect the unit from the mains and wipe it with a damp cloth. Never immerse the unit in any liquid.

  • Page 7: Replace Fuse

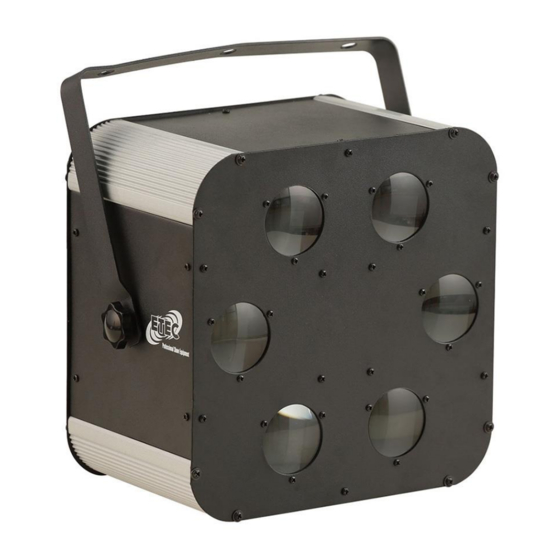

    Product description: The LED Six Hole Light produces countless LED Beams, which are thrown into the room through its 6 lenses. With its RGBWY color LEDs, it changes the colors according to its movement. The DMX, automatic mode and the master slave function enable many areas of application, from the party cellar to the club.

  • Page 8: Product Overview

    Product Overview: 1. LED Diode 2. DMX linking IN/OUT 3. ON / OFF switch 4. Power connection IEC – C14 5. Audio sensitivity knob 6. safety eyelet 7. Display and menu buttons Functions and settings: MENU: Function selectionDMX512, Master- Slave, AUTO, Strobe, Music-controlled, Manual control, Brightness adjustment UP/DOWN: Previous or next function, value adjustment positive or negative...

  • Page 9: Functional Overview

    Functional Overview: AuTo Automatic mode Au.09 Sound mode Sod1 Soud Sod9 DMX512 addressing d001-d512 d001-d512 Slave Function SLAu DMX chanal selection CH08 chSE CH05 CH03 Speed settings rS01---rS64 SPEd LS01---LS64 Page | 9...
  • Page 10 Automatic mode AuTo Au.01 Au.06 1. Use the UP / DOWN buttons to display [AuTo], press ENTER to enter the auto mode 2. Use the UP / DOWN buttons to select one of the six automatic programs (Au.01-Au.06) and confirm with ENTER The automatic programs at a glance: Au.01 RGBWY 5 colors LED circular movements and strobe effect changing Au.02 RGBWY 5 Colors LED - Automatic color change...
  • Page 11 The music programs at a glance: Sod1 RGBWY 5 colors LED circular movements changing to the beat of the music Sod2 RGBWY 5 colors LED color changing in tact of music Sod3 RGBWY 5 Colors LED - double color change to the beat of the music Sod4 RGBWY 5 colors LED-triple color change to the beat of the music Sod5...
  • Page 12 Setting up a DMX connection DMX is a standardized transmission protocol that allows all DMX-compatible models of the various manufacturers to be connected to one another and controlled by a single mixer. Free DMX data transfer between different DMX devices are used. The connection arrangement between the devices has no influence on the DMX addressing.
  • Page 13 DMX Channel assignment: 3DMX channels Channel Function Value Description 0----1 LED Off 2----15 LED On 16---75 Position 1 - 8 / Control via channel No. 7 76---85 Clockwise movement / control via channel No. 7 86---95 Automatic color change of an LED / control via channel no. 7 96---105 Contrary color change of two LEDs / control via channel No.
  • Page 14 5 DMX Channels Channel Function Value Description 0----1 LED Off 2----15 color selection 16----47 Single colors R-G-B-W-Y / Automatic mode 2 colors RG-WB-GY-RB-WG-RY-GB-RW-BY-WY / Automatic mode Control via 48----79 channel No. 2 3 colors RGB-RWY-GBY-RGW-BWY-GRW-RBY-GWY-RBW / Automatic mode 80---111 Control via channel No. 2 112---143 4 colors RGBW-RGBY-RBWY-GBWY / Automatic mode Control via channel No.
  • Page 15 8 DMX Channels Channel Function Value Description 0----1 LED Off 2----15 color selection 16----47 Single colors R-G-B-W-Y / Automatic mode 2 colors RG-WB-GY-RB-WG-RY-GB-RW-BY-WY / Automatic mode Control via 48----79 channel No. 2 3 colors RGB-RWY-GBY-RGW-BWY-GRW-RBY-GWY-RBW / Automatic mode 80---111 Control via channel No. 2 112---143 4 colors RGBW-RGBY-RBWY-GBWY / Automatic mode Control via channel No.
  • Page 16 2----15 LED ON 16---75 Position 1 - 8 / Control via channel No. 7 76---85 Clockwise movement / control via channel No. 7 86---95 Automatic color change of an LED / control via channel no. 7 96---105 Contrary color change of two LEDs / control via channel No. 7 106--115 Automatic color change of two LEDs / control via channel No.
  • Page 17 Technical and optical changes within the scope of product improvement are reserved - even without prior notice. No liability shall be accepted for printing errors and resulting faulty operation. If in doubt, consult your ETEC dealer! Space for your notes: _________________________________________________________________________________...
  • Page 18 Importeur Hansaring 138-142 48268 Greven Fon: +49 (0) 25 71 - 80 5 40 42 Fax: +49 (0) 25 71 - 80 5 40 41 www.etec-professional.de Page | 18...
