Sealey iw230V Manual

thank you for purchasing a Sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instruction gloves
manual
1. SaFetY
1.1. eLectricaL SaFetY
warninG! It is the user's responsibility to check the following:
‰
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all
electrical connections for wear and damage. Sealey recommend that an RCd (Residual Current device) is used with all electrical
products. You may obtain an RCd by contacting your local Sealey dealer.
If the wrench is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable Appliance
Test) tested.
electrical safety information, it is important that the following information is read and understood.
1.1.1. ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the correct
fuse - see fuse rating in these instructions.
DO nOt pull or carry the appliance by the power cable.
8
DO nOt pull the plug from the socket by the cable. Remove the plug from the socket by maintaining a firm grip on the plug.
8
DO nOt use worn or damaged cables, plugs or connectors. ensure that any faulty item is repaired or replaced immediately by a
8
qualified electrician.
1.1.4. This product is fitted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove from use.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualified electrician.
Class II products are wired with live (brown) and neutral (blue) only and marked with the Class II symbol;
A) Connect the BROWN live wire to the live terminal 'L'.
B) Connect the BLUE neutral wire to the neutral terminal 'N'.
C) After wiring, check that there are no bare wires and ensure that all wires have been correctly connected.
ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
DO nOt connect either wire to the earth terminal.
Sealey recommend that repairs are carried out by a qualified electrician.
GeneraL SaFetY
1.2.
disconnect the wrench from the mains power before changing accessories, servicing or performing any
9
maintenance.
maintain wrench in good condition. Check moving parts and alignment and keep wrench clean. If necessary use an authorised
9
service agent.
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Wear approved safety eye protection with side shields and a dust mask if wrenching generates dust. Rubber gloves are recommended
9
when using out doors and safety gloves indoors.
Remove ill fitting clothing. Remove ties, watches, rings, other loose jewellery and contain long hair.
9
Use wrench in an adequate working area for its function, keep area clean, tidy and free from unrelated materials and ensure adequate
9
lighting.
Prevent body contact with grounded surfaces to avoid electric shock i.e. pipes, radiators, ranges, refrigerators etc.
9
evaluate your working area before using the wrench i.e. ceiling, floors and enclosures may contain hidden electrical wires or water piping.
9
maintain correct balance and footing.
9
DO nOt over-reach and ensure the floor is not slippery and wear non skid shoes.
8
Keep children and unauthorised persons away from the working area.
9
DO nOt hold unsecured work in your hand.
8
Secure non stable work piece with a clamp, vice or other adequate holding device.
9
Avoid unintentional starting and ensure the lock on button is disengaged before use.
9
DO nOt force the wrench to achieve a task it was not designed to perform.
8
DO nOt operate wrench where there are flammable liquids or gasses.
8
DO nOt get the wrench wet or use in damp or wet locations.
8
DO nOt operate the wrench if any parts are missing or the wrench is damaged as this may cause failure and/or possible personal
8
injury.
DO nOt operate the wrench when you are tired, under the influence of alcohol, drugs or intoxicating medication.
8
© Jack Sealey limited

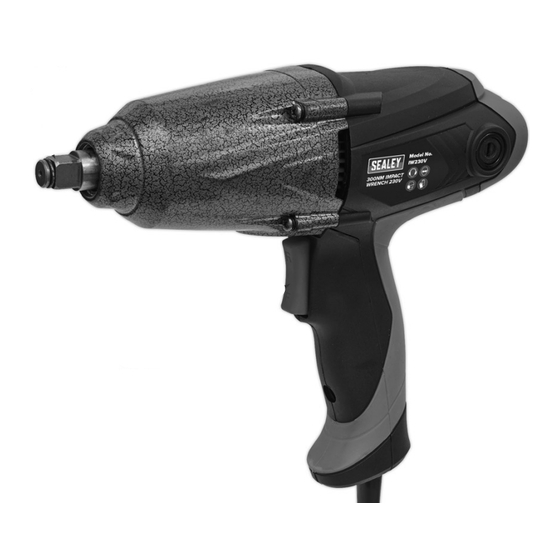

impact wrench 230V
model no:
Wear eye Wear face
protection mask
Original Language Version
iw230V
Wear ear
protection
Recommended fuse rating
5 amp
IW230V Issue 2 (3) 09/08/18
