Sq drive cordless impact wrench

Advertisement

Quick Links

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear eye
instructions
protection
1. SAFETY
Maintain the Impact Wrench and battery in good condition. Check moving parts alignment on a regular basis.
9
Replace or repair damaged parts. Use an authorised service agent and recommended parts only. Unauthorised parts may be
9
dangerous and will invalidate the warranty.
Ensure the Impact Wrench is switched off before installing the battery pack.
9
Keep the Impact Wrench and charger clean for best and safest performance.
9
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain long hair.
9
Evaluate your working area before using the Impact Wrench; e.g. ceilings, floors and enclosures may contain electrical items or
9
water piping
Ensure battery pack is correctly inserted into the Impact Wrench handle and latched in place before attempting to switch on Impact
9
Wrench.
Secure loose work pieces with a clamp, vice or other adequate holding device.
9
Avoid unintentional starting.
9
Wear approved safety eye protection (standard spectacles are not adequate).
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-skid shoes.
9
Be aware that this Impact Wrench does not need to be plugged into the mains power.
9
Keep direction switch in the locked position until the Impact Wrench is required for use.
9
Keep children and unauthorised persons away from the working area.
9
DO NOT use the Impact Wrench where there are flammable liquids, solids or gases, such as paint solvents, etc.
8
DO NOT allow children to operate the Impact Wrench.
8
DO NOT operate the Impact Wrench if any parts are missing as this may cause failure and/or personal injury.
8
DO NOT hold unsecured work piece in your hand.
8
DO NOT leave the Impact Wrench operating unattended.
8
DO NOT carry the Impact Wrench with your finger on the power switch. Keep direction switch in the locked position.
8
DO NOT use the Impact Wrench for a task it is not designed to perform.
8
DO NOT operate the Impact Wrench when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT get the Impact Wrench or battery charger wet or use in damp or wet locations.
8
2. INTRODUCTION

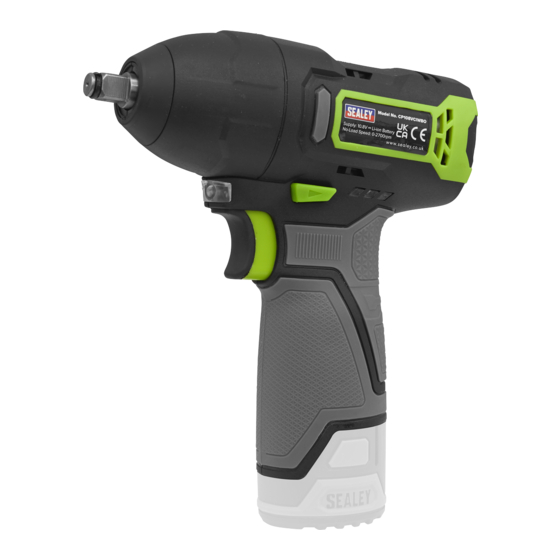

Compact, lightweight cordless impact wrench - body only. Robust housing with soft grip to reduce vibration. Integrated LED battery level
indicator and LED work light. Requires compatible 10.8V 2Ah or 4Ah battery and mains charger, sold separately.
3. SPECIFICATION
Model No.. ....................................................CP108VCIWBO
Battery ................ 10.8V 2Ah - 4Ah Lithium-ion (not included)
Consumable parts (not included)
..........................................................CP108VBP 2Ah Battery
........................................................CP108VBP4 4Ah Battery
Drive ........................................................................... 3/8"Sq
Max. torque .................................................... 120Nm(88lb.ft)
Noise power/pressure .......................................... 84/73dB(A)
No-load speed .......................................................0-2200rpm
Vibrating rating ...................................... 0.571 m/s² / 1.5 m/s²
Replacement parts .....................CP108VMC - mains charger
4. OPERATION
4.1.
Fit battery.
4.2.
BATTERY CHARGE STATUS TEST
4.2.1.
Press trigger, all LEDs lit: battery charged, one LED lit: battery needs
charging.
© Jack Sealey Limited
10.8V 3/8"SQ DRIVE CORDLESS IMPACT
WRENCH - BODY ONLY
CP108VCIWBO
MODEL NO:
Wear protective
Wear ear
gloves
protection
Original Language Version
Wear a mask
Worklight
Shown with
battery fitted
(not supplied)
Charge
state
LEDs
Trigger
Direction
selector
CP108VCIWBO Issue 1 02/02/21
