- Page 1 Operating and installation instructions Gas hobs To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time. en-GB M.-Nr. 07 181 160...
- Page 2 For trouble-free operation of the appliance, it is best to use it in the countries spe- cified for use. For use in other countries, please contact Miele in your country.
- Page 3 Gas-heated appliances Safety precautions to take if you smell gas Turn off the gas emergency control valve immediately. This is usually located near the gas meter. Eliminate all sources of ignition in a safe manner. Do not smoke, light cigarette lighters or matches. ...
-
Page 4: Table Of Contents
Warning and Safety instructions................ 6 Caring for the environment ................ 16 Guide to the appliance .................. 17 Hob........................17 KM 2014 ......................17 KM 2034 / KM 2035 ..................18 KM 2052 ......................19 KM 2054 ......................20 Control knobs......................21 Burner........................ - Page 5 Safety instructions for installation ................. 42 Safety distances....................43 Installation notes ....................46 Building-in dimensions ..................47 KM 2014 ......................47 KM 2034 / KM 2035 ..................48 KM 2052 / KM 2054 ..................49 Installation ......................50 Gas connection ..................... 52 Electrical connection .....................
-
Page 6: Warning And Safety Instructions
Miele cannot be held liable for injury or damage caused by non- compliance with these instructions. Keep these instructions in a safe place and pass them on to any... - Page 7 Warning and Safety instructions Correct application This hob is intended for domestic use and use in other similar en- vironments. This hob is not intended for outdoor use. It is intended for domestic use only to cook food and keep it warm.
- Page 8 Warning and Safety instructions Safety with children Children under 8 years of age must be kept away from the hob unless they are constantly supervised. Children over 8 years of age may use the hob without supervision if its operation has been clearly explained to them and they are able to use it safely.
- Page 9 Unauthorised installation, maintenance and repairs can cause considerable danger for the user. Installation, maintenance and re- pairs must only be carried out by a Miele authorised technician. Damage to the hob can compromise your safety. Check the hob for visible signs of damage.
- Page 10 Warning and Safety instructions Miele can only guarantee the safety of the appliance when genu- ine original Miele replacement parts are used. Faulty components must only be replaced by Miele spare parts. The hob is not intended for use with an external timer switch or a remote control system.
- Page 11 Warning and Safety instructions If the hob is installed behind a cabinet door, do not close the door while the hob is in use. Heat and moisture can build up behind the closed door. This can result in damage to the hob, the housing unit and the floor.
- Page 12 Warning and Safety instructions Correct use The hob gets hot when in use and remains hot for some time after being switched off. Do not touch the hob if there is a possibility that it could still be hot. ...
- Page 13 If the pan diameter is too large, flames can spread out to the sides and damage or burn the worktop, wall claddings or sur- rounding units and also parts of the hob. Miele cannot be held liable for this type of damage.
- Page 14 Warning and Safety instructions Do not use pans with very thin bases on this hob, and never heat up empty pans as they could get damaged. This could also damage the appliance. The pan support supplied with the appliance must always be used.
- Page 15 Warning and Safety instructions Cleaning and care Do not use a steam cleaning appliance to clean this hob. The steam could reach electrical components and cause a short cir- cuit.
-
Page 16: Caring For The Environment
/ recycling centre for electrical and electronic ap- pliances, or contact your dealer or Miele for advice. You are also respons- ible for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appliance poses no risk to children while being stored prior to disposal. -
Page 17: Guide To The Appliance

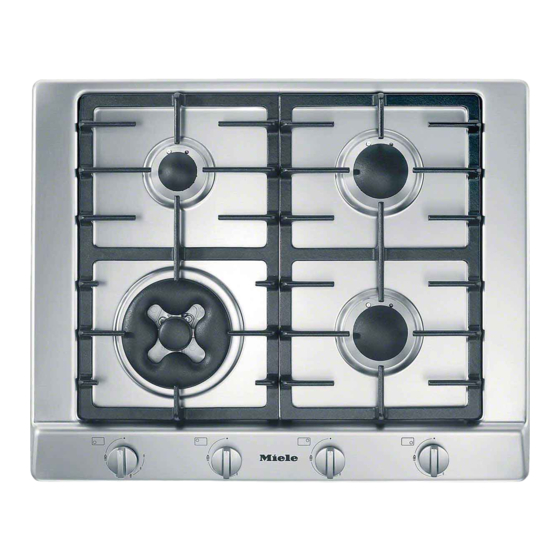

Guide to the appliance KM 2014 a Wok burner Controls knobs for the cooking zones: b Small burner e Front right c Medium burner f Rear right d Medium burner g Rear left h Front left... - Page 18 Guide to the appliance KM 2034 / KM 2035 a Large burner Controls knobs for the cooking zones: b Small burner f Front right c Medium burner g Rear right d Medium burner h Middle e Wok burner i Rear left j Front left...
- Page 19 Guide to the appliance KM 2052 a Wok burner Controls knobs for the cooking zones: b Small burner f Front right c Large burner g Rear right d Medium burner h Middle e Medium burner i Rear left j Front left...
- Page 20 Guide to the appliance KM 2054 a Wok burner Controls knobs for the cooking zones: b Small burner f Front right c Large burner g Rear right d Wok burner h Middle e Medium burner i Rear left j Front left...
-
Page 21: Control Knobs
Guide to the appliance Control knobs Small, medium and large burners Symbol Description Burner off, the gas supply is turned off Largest flame Smallest flame Wok burner Symbol Description Burner off, the gas supply is turned off ... -
Page 22: Burner
Guide to the appliance Small, medium and large burners Burner Wok burner a Burner ring (wok burner) b Burner cap c Burner head d Burner base e Thermocouple f Ignitor... -
Page 23: Accessories Supplied
Guide to the appliance Accessories supplied The accessories supplied with your ap- pliance as well as a range of optional ones are available to order from Miele (see “Optional accessories”). Wok ring The wok ring supplied gives additional stability to the wok, especially to woks... -
Page 24: Before Using For The First Time
Before using for the first time Please stick the extra data plate for Switching on the hob for the the appliance supplied with this doc- first time umentation in the space provided in The metal components have a protect- the “After sales service”... -
Page 25: Pans
Pans – Remember when purchasing new Minimum pan base diameter pans that manufacturers usually refer Ø cm Burner to the diameter at the top of the pan in their documentation, and not to the Small burner base diameter. Medium burner – You can use any cookware that is Large burner heat-resistant. - Page 26 Pans Wok ring Use the wok ring supplied to give ad- ditional stability to pans, especially to woks with a rounded base. Place the wok ring on the pan sup- port so that it sits securely in position and cannot move (see diagram).
-
Page 27: Tips On Saving Energy
Tips on saving energy – Use a pan lid whenever possible to minimize heat loss. – Wide, shallow pans are preferable to tall, narrow ones. They will heat up faster. – Cook with as little water as possible. – Reduce the size of the flame once the water has come to the boil or the oil is hot enough to fry in. -
Page 28: Operation
Operation Switching on during a power outage Risk of fire with overheated food. If there is an interruption to the electri- Unattended food can overheat and city supply, the gas can be ignited catch alight. manually, e.g. with a match. Do not leave the hob unattended whilst it is being used. -
Page 29: Adjusting The Flame
Operation Adjusting the flame Switching off Turn the rotary control clockwise to The burners can be regulated at any the position. level between the strongest and weak- est flame. The gas supply is cut off and the flame goes out. -
Page 30: Safety Features
Safety features Thermo-electric flame failure monitor Your hob is equipped with a thermo- electric flame failure monitor. If a gas flame is extinguished, e.g. by food boil- ing over or by a draught, the gas supply is switched off. This prevents the re- lease of gas. -
Page 31: Cleaning And Care
Cleaning and care – cleaning agents containing soda, al- Danger of burning due to hot kalines, ammonia, acids or chlorides surfaces. – cleaning agents containing descaling The hob surface, pan supports and agents burners will be hot after use. Allow the hob to cool down before –... -
Page 32: Stainless Steel Trough
Cleaning and care The entire hob should be cleaned after each use. Soften any stubborn soiling before- hand. Dry the hob thoroughly after every damp cleaning to avoid limescale residue. Stainless steel trough Risk of damage by pointed ob- jects. -
Page 33: Pan Supports
Cleaning and care Pan supports Burner Remove the pan supports. Do not clean any parts of the burners in a dishwasher. Clean the pan supports in the dish- washer or with a solution of warm The surface of the burner cap will be- water and a little washing-up liquid come duller with time. - Page 34 Cleaning and care Assembling the small, medium and The surface of the burner cap will be- large burners come duller with time. This is com- pletely normal and does not indicate material deterioration. The burner cap has a PerfectClean treated surface with excellent non- stick properties which make cleaning easier.
- Page 35 Cleaning and care Assembling the wok burner Place the burner head on the burner base so that the holes fit over the jets in the burner base and the locating bar sits in the notch. If the burner head is in the correct posi- tion, it will not move about.
-
Page 36: Problem Solving Guide
Problem solving guide Many malfunctions and faults that can occur in daily operation can be easily remedied. Time and money will be saved because a service call will not be needed. The following guide may help you to find the reason for a malfunction or a fault, and to correct it. - Page 37 The mains fuse has tripped. device on the burner is If necessary, contact a qualified electrician or not working. Miele Service for assistance. There is food residue stuck between the ignitor and the burner cap. The thermocouple is dirty.
-
Page 38: Optional Accessories
These products can be ordered through the Miele Webshop. Removes heavy soiling, limescale de- posits and aluminium residues They can also be ordered from Miele (see end of this booklet for contact de- Microfibre cloth tails) or from your Miele dealer. -
Page 39: Burner Ratings
Burner ratings Nominal ratings for KM 2014 Burner Gas type Highest setting Lowest set- ting Small burner Natural gas H – 0.25 Liquid gas 0.25 Medium Natural gas H 1.75 – 0.35 burner Liquid gas 1.75 0.35 Natural gas H –... - Page 40 Burner ratings Nominal ratings for KM 2054 Burner Gas type Highest setting Lowest set- ting Small burner Natural gas H – 0.25 Liquid gas 0.25 Medium Natural gas H 1.75 – 0.35 burner Liquid gas 1.75 0.35 Large burner Natural gas H –...
-
Page 41: After Sales Service
In the event of any faults which you cannot remedy yourself, please contact your Miele Dealer or Miele Service. Contact information for Miele Service can be found at the end of this document. Please note that telephone calls may be monitored and recorded for training pur- poses and that a call-out charge will be applied to service visits where the problem could have been resolved as described in this booklet. -
Page 42: Installation
Installation Safety instructions for installation Damage from falling objects. Take care not to damage the hob when fitting wall units or a cooker hood above Fit the wall units and the cooker hood before the hob. The room in which the hob is installed must conform to all relevant local and national building regulations and safety regulations. -
Page 43: Safety Distances
Installation Safety distances Safety distance above the hob A minimum safety distance must be maintained between the appliance and the cooker hood above it. See the cooker hood manufacturer's operating and installation instructions for details. If the manufacturer's instructions are not available for the cooker hood or if any flammable objects (e.g. - Page 44 Installation Safety distances to the sides and back of the hob Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear or a tall unit or wall on one side (right or left) (see illus- trations).
- Page 45 Installation Safety distance when installing the appliance near a wall with additional niche cladding A minimum safety distance must be maintained between the worktop cut-out and any niche cladding to protect it from heat damage. If the niche cladding is made from a combustible material (e.g. wood) a minimum safety distance ...
-
Page 46: Installation Notes
Installation Tiled worktops Installation notes Seal between the hob and the work- Grout lines and the hatched area un- derneath the hob frame must be smooth and even. If they are not the hob will not sit flush with the worktop and the sealing strip underneath the ... -
Page 47: Building-In Dimensions
Installation Building-in dimensions All dimensions are given in mm. KM 2014 5 2 0 6 5 0 ß R 4 8 0 - 4 9 2 1 7 1 9 6 a Front b Casing depth c Gas connection R ¹/₂ - ISO 7-1 (DIN EN 10226) - Page 48 Installation KM 2034 / KM 2035 5 2 0 7 5 0 ß R 0 5 0 4 8 0 - 4 9 2 1 7 1 9 6 a Front b Casing depth c Gas connection R ¹/₂ - ISO 7-1 (DIN EN 10226) d Mains connection box with mains connection cable, L = 2000 mm...
- Page 49 Installation KM 2052 / KM 2054 5 2 0 9 0 0 ß R 0 5 0 4 8 0 - 4 9 2 1 7 1 9 6 a Front b Casing depth c Gas connection R ¹/₂ - ISO 7-1 (DIN EN 10226) d Mains connection box with mains connection cable, L = 2000 mm...
-
Page 50: Installation
Installation Installing the hob Installation Stick the supplied sealing strip under Preparing the worktop the edge of the hob. Create the worktop cut-out as shown Feed the power cable for the hob in the hob diagram. Remember to down through the worktop cut-out. - Page 51 Installation Securing the hob Functional check After installing the hob, ignite all burners to check that they are operat- ing correctly: – The flame must not go out on the lowest setting, or when the control is turned quickly from the highest to the lowest setting.
-
Page 52: Gas Connection
Installation Gas connection The gas connection must be in- stalled so that connection can be For any gas work in the UK always made either from inside or outside use a Gas Safe registered engineer. the kitchen furniture unit. The isolat- ing valve must be easily accessible and visible (by opening the cabinet door if necessary). - Page 53 Miele. After installation make sure that Conversion to another type of gas is neither the gas pipe nor the mains described in the section “Converting to...
- Page 54 Installation Using a 90° angle a Connection R ¹/₂" with test point - ISO 7-1 (DIN EN 10226) b 90° elbow The installation height in the area of the gas connection is increased by approx. 60 mm.
-
Page 55: Electrical Connection
(RCD) with a trip Danger of injury. range of 30 mA. Miele cannot be held liable for unau- WARNING thorised installation, maintenance THIS APPLIANCE MUST BE and repair work as this can be dan- EARTHED gerous to users. - Page 56 A suitable connec- lowing depending on installation: tion cable is available to order from Safety fuses Miele. Completely remove fuses. Automatic circuit breakers Press the (red) test button until the middle (black) button springs out.
-
Page 57: Converting To Another Gas Type
Converting to another gas type Jet table Risk of explosion due to an in- correct conversion. The jet markings refer to a ¹/₁₀₀ mm If the conversion to another type of bore diameter. gas is carried out incorrectly, it may Burner ... -
Page 58: Changing The Jets
Converting to another gas type Wok burner Changing the jets Disconnect the hob from the electri- city supply and turn off the gas sup- ply. Changing the main jets Small, medium and large burners The burner cap is locked on these burners. -
Page 59: Changing The Small Jets
Converting to another gas type Changing the small jets Small, medium and large burners To change the small jets, the burner fixing screws must first be loosened and the upper section of the appliance removed. Pull the control knobs off. ... -
Page 60: Functional Check
Converting to another gas type Wok burner – The flame must not go out on the lowest setting, or when the control is turned quickly from the highest to the lowest setting. – On the highest setting, the flame must have a distinctive and visible core. -
Page 61: Product Data Sheets
The following data sheets apply to the models described in this operating instruc- tion manual. Information for domestic gas-fired hobs In acc. with regulation (EU) No. 66/2014 MIELE Model name / identifier KM 2014 Number of gas burners Energy efficiency per gas burner (EE 1. = 52,7 gas burner 3. = 56,5 4. - Page 62 Product data sheets Information for domestic gas-fired hobs In acc. with regulation (EU) No. 66/2014 MIELE Model name / identifier KM 2035 Number of gas burners Energy efficiency per gas burner (EE 1. = 54,7 gas burner 3. = 52,7 4.
- Page 63 Product data sheets Information for domestic gas-fired hobs In acc. with regulation (EU) No. 66/2014 MIELE Model name / identifier KM 2054 Number of gas burners Energy efficiency per gas burner (EE 1. = 52,7 gas burner 3. = 54,7 4.
- Page 67 Tel: +65 6735 1191 Fax. +971 4 3418 852 Fax: 011-46 900 001 Fax: +65 6735 1161 800-MIELE (64353) E-mail: customercare@miele.in E-Mail: info@miele.com.sg E-Mail: info@miele.ae Internet: www.miele.in Internet: www.miele.sg Website: www.miele.ae Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany...
- Page 68 KM 2014 / KM 2034 / KM 2035 / KM 2052 / KM 2054 en-GB M.-Nr. 07 181 160 / 09...
