RIP

Interface options

154
Receive Version The RIP receive version for this interface.
Split-Horizon The split horizon type.
Authentication The authentication type.
The Delete and Edit icons.

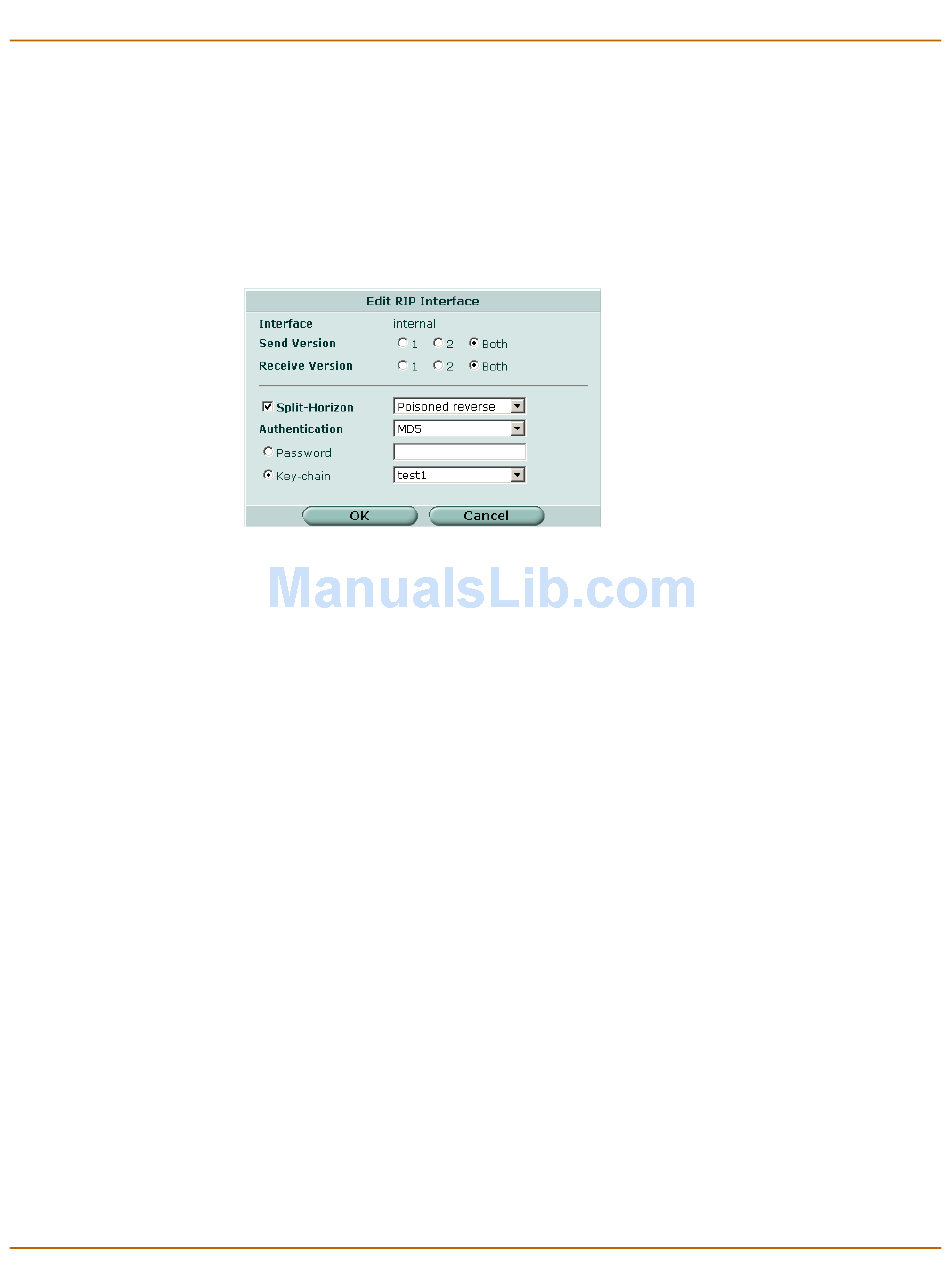

Figure 61: RIP interface configuration
Interface The FortiGate interface name.
Send Version RIP routing messages are UDP packets that use port 520.
Select 1 to configure RIP to send RIP version 1 messages from an
interface.
Select 2 to configure RIP to send RIP version 2 messages from an
interface.
Select Both to configure RIP to send both RIP version 1 and RIP version
2 messages from an interface.
Setting the Send Version here overrides the default RIP version for this
interface.
Receive Version RIP routing messages are UDP packets that use port 520.
Select 1 to configure RIP to listen for RIP version 1 messages on an
interface.
Select 2 to configure RIP to listen for RIP version 2 messages on an
interface.
Select Both to configure RIP to listen for both RIP version 1 and RIP
version 2 messages on an interface.
Setting the Receive Version here overrides the default RIP version for
this interface.
Split-Horizon Configure RIP to use either regular or poisoned reverse split horizon on
this interface.
Select Regular to prevent RIP from sending updates for a route back out
the interface from which it received that route.
Select Poisoned reverse to send updates with routes learned on an
interface back out the same interface but with the routes marked as
unreachable.
