User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.

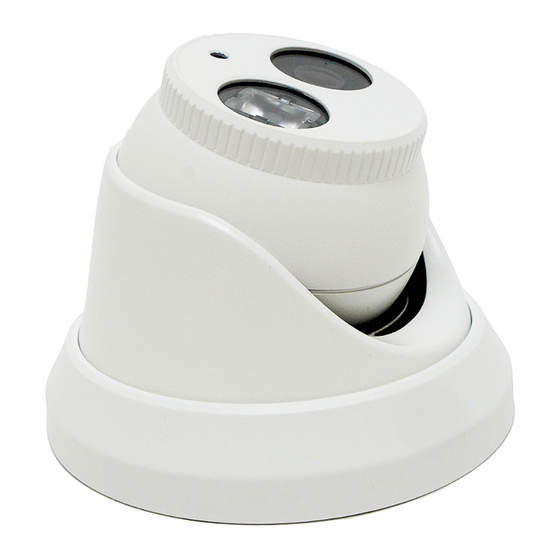

TVIOD-PRM2EXIR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Security Camera King PRIME Series
Summary of Contents for Security Camera King PRIME Series
- Page 1 TVIOD-PRM2EXIR User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.
-
Page 2: Regulatory Information
Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 4 Do not aim the camera at the sun or extra bright places. Blooming or smearing may occur otherwise (which is not a malfunction), and affect the endurance of sensor at the same time. The sensor may be burned out by a laser beam, so ...
-
Page 5: Product Features
1 Introduction 1.1 Product Features The camera is applicable for both indoor and outdoor conditions, and the application scenarios include road, warehouse, parking lot, bar, etc.. The main features are as follows: High performance CMOS sensor and high resolution brings high-quality image Low illumination, 0.01 Lux @ (F1.2, AGC ON), 0 Lux ... - Page 6 2. Drill the screw holes, and the cable hole (optional) in the ceiling according to the drill template. Note: Cable hole is required when you adopt ceiling outlet to route the cable. Figure 2-1 Drill Template 3. F x the mounting base to the ceiling with supplied screws.
-
Page 7: Menu Description
3 Menu Description Two methods are available to call the menu. This section takes method b) as an example to state the menu operation. a) Call the menu and adjust the camera parameters with a coaxial camera controller (purchase separately). b) Call the menu with supported TVI DVR by clicking button on the PTZ interface, or by calling preset No. - Page 8 BRIGHTNESS AE MODE FORMAT SENS-UP AUTO MANUAL COLOR DAY & NIGHT EXIT MAIN MENU CONTRAST SHARPNESS VIDEO COLOR GAIN SETTING 3D NR MIRROR DETECTION FUNCTION MASKING ZOOM IN RESET SAVE & EXIT Figure 3-2 Main Menu Overview 3.1 Format Move the cursor to FORMAT, and press Iris+ to enter the FORMAT sub menu.
- Page 9 other conditions of under exposure to get an optimum image. BLC (Backlight Compensation) BLC (Backlight Compensation) compensate light to the object in the front to make it clear, but this causes the over-exposure of the background where the light is strong.
-
Page 10: Video Setting
INFRARED You can select to turn on/off the IR LED to response to the requirements of different circumstances. SMART IR The Smart IR is used to adjust the light to its most suitable intensity, and to prevent the image from over exposure.
