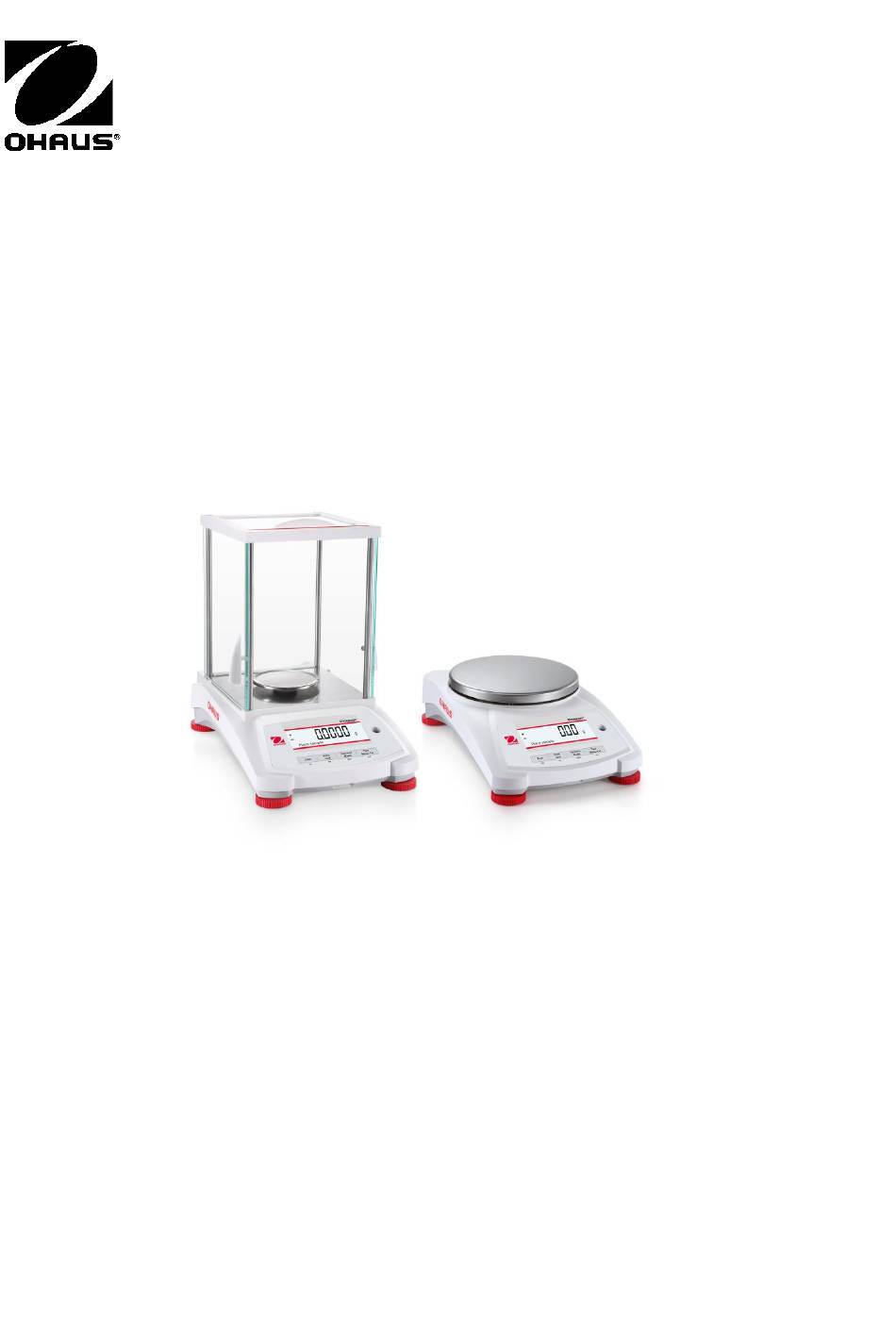

- Page 1 Pioneer PX Series Balances Instruction Manual...
-
Page 3: Table Of Contents
PX Series Balance EN-1 Table of Contents 1. INTRODUCTION ......................EN-3 Description ............................. EN-3 Features ..............................EN-3 Definition of Signal Warnings and Symbols ................... EN-3 Safety Precautions ..........................EN-3 2. INSTALLATION ....................... EN-4 Unpacking .............................. EN-4 Select the Location ..........................EN-4 Leveling .............................. - Page 4 EN-2 PX Series Balance 5.5.3 Handshake ............................EN-33 Print Settings ............................EN-33 5.6.1 Stable Only ............................EN-33 5.6.2 Numeric Only ........................... EN-33 5.6.3 Single Header ..........................EN-33 5.6.4 Print To ............................. EN-33 5.6.5 Auto Print ............................EN-33 5.6.6 Header ............................. EN-33 5.6.7 Date and Time..........................
-
Page 5: Introduction
PX Series Balance EN-3 1. INTRODUCTION Description The PX balance is a precision weighing instrument that will provide you with years of service if properly cared for. PX balances are available in capacities from 82 grams to 8200 grams. Features Operation Controls: 2-line backlit display, with 6 weighing applications and many other features. -
Page 6: Installation
EN-4 PX Series Balance 2. INSTALLATION 2.1 Unpacking Carefully remove your PX balance and each of its components from the package. The included components vary depending on the balance model (see the list below). Save the packaging to ensure safe storage and transport. Please read the manual completely before installing and using the PX balance to avoid incorrect operation. -
Page 7: Connecting Power And Acclimating The Balance
PX Series Balance EN-5 2.4 Connecting Power and Acclimating the Balance Connect the DC output connector to the power receptacle on the rear of the balance. Then connect the AC adapter plug to a suitable electrical outlet. Acclimating It is suggested that the balance should not be used until it has been connected to power and acclimated to the environment for a certain period of time. -
Page 8: Operation
EN-6 PX Series Balance 3. OPERATION Overview of Display, Home Screen The PX balance has a 2-line backlit display. CONTROLS CONTROL FUNCTIONS Button On / Zero Print Function Tare Primary Function If the Indicator is Sends the current ... -
Page 9: Principal Functions And Main Menu
PX Series Balance EN-7 MAIN APPLICATION SCREEN Net (NET) Result Field: Stability (*) Information varies Negative (-) by application Centre of Zero (>0<) Pre-tare (PT) Unit Instructional Messages Principal Functions and Main Menu Weighing: Press Zero to set the display to zero. Place an object on the pan. The display indicates the gross weight. -
Page 10: Applications
EN-8 PX Series Balance 4. APPLICATIONS The PX balance can be operated in 6 application modes by long pressing the Function / Mode button. Weighing Note: Before using any application, be sure the balance has been leveled and calibrated. Use this application to determine the weight of objects in the selected unit of measure. Weighing 1. - Page 11 PX Series Balance EN-9 3. After confirmation by pressing Yes, the message "Clear APW?" will appear on the screen. 4. If the APW of the last Parts Counting operation needs to be kept, press No when the message "Clear APW?" displays. 5.
-
Page 12: Percent Weighing
EN-10 PX Series Balance APW Optimization: Improving counting accuracy by re-calculating the piece weight automatically as parts are added. APW Optimization occurs only when the number of pieces added to the pan is between one and three times the number already on the pan. -
Page 13: Dynamic Weighing
PX Series Balance EN-11 6. Remove the reference sample and place the test object on the pan. The ratio of the test object to the reference sample weight displayed percentage. 7. To view the reference sample weight or the test object weight, press the Function / Mode button. -
Page 14: Density Determination
EN-12 PX Series Balance 4. Confirm the weighing time by pressing Yes, and the message "Ready" will display at the lower left of the screen. 5. Place the dynamic object on the pan. The balance begins a countdown (averaging process). During the countdown, the screen shows the time remaining. - Page 15 When making density measurements, the material should weigh at least 10.0 mg on an analytical balance and 100 mg on a precision balance. Balance Preparation with Ohaus Density Kit (Optional) Allow the balance to warm up sufficiently before making measurements.
- Page 16 EN-14 PX Series Balance Place the Support into position over the bracket making sure the Support does not make contact with the Bracket as shown in illustration. Install beaker on support as shown. NOTE: Beaker and thermometer are not supplied as part of the density kit. The density Q is the quotient of the mass m and the volume V.
- Page 17 PX Series Balance EN-15 Place the solid in the Weighing Pan on the Weigh Below Hook in the liquid as shown. Ensure that there are no air bubbles on the solid to be weighed. Close the draft shield doors and weigh the solid (buoyancy P). The display indicates the density in grams/cc. Solid Density Determinations for items Less Density Than Water For density determination of solids with a density less than 1 g/CM , the bottom of the Weigh Below Hook for solids...
- Page 18 EN-16 PX Series Balance In DENSITY SETUP, set Mode to Liquid Density and enter sinker volume in cc’s. After weighing the sinker in air and then weighing the sinker immersed in liquid, the balance calculates the density of the liquid and is displayed in grams/cc. See illustrations below for placement of the sinker. When the sinker is immersed in the liquid, it must not come into contact with the bottom of the beaker.
-
Page 19: Measuring The Density Of A Sinking Solid Using Water
PX Series Balance EN-17 4.5.1 Measuring the Density of a Sinking Solid Using Water Press and hold the Function / Mode button until Density appears. Press Yes to initiate the Density Determination. Item Settings: Sample type: Solid Auxiliary Liquid: Water ... -
Page 20: Measuring The Density Of A Floating Solid Using Water
EN-18 PX Series Balance 3. Press the Function / Mode button to get the density of the sample. After completion of the test, press the Function / Mode button to test a new sample. 4.5.2 Measuring the Density of a floating Solid Using Water Press and hold the Function / Mode button until Density appears. -
Page 21: Measuring The Density Of A Liquid Using A Calibrated Sinker
PX Series Balance EN-19 Item Settings: Sample type: Solid Auxiliary Liquid: Other Porous Material: Off Set the density of the auxiliary liquid: The default value of the auxiliary liquid is 1.00000 g/cm Press No or Back to increase or decrease the value in accordance with the actual density of the auxiliary liquid. - Page 22 EN-20 PX Series Balance Item Settings: Sample Type: Liquid Volume: The calibrated sinker has a default volume of 10.0 ml, which can be increased or decreased by pressing No or Back. After setting the volume, press Yes to begin the weighing. Note: when the Density Type is set to Liquid, the Liquid type and Porous material selections are disabled.
-
Page 23: Measuring The Density Of Porous Material Using Oil
PX Series Balance EN-21 4.5.5 Measuring the Density of Porous Material Using Oil Press and hold the Function / Mode button until Density appears. Press Yes to enter the Density Determination. Item Settings: Sample type: Solid Auxiliary Liquid: Water Porous Material: On ... - Page 24 EN-22 PX Series Balance 3. Weigh the oiled sample in the liquid with the balance and the density determination kit. 4. When the * (symbol of stability) appears, press the Function / Mode button to confirm the weight of the oiled sample in the liquid.
-
Page 25: Additional Features
PX Series Balance EN-23 Additional Features Weigh Below Note: Ensure the balance has been leveled and calibrated. The PX balance is equipped with a weigh below hook for weighing below the balance (as shown in the figure below). Before turning the balance over, remove the pan and draft shield elements (if present) to prevent damage. Do not place the balance on the pan support cone or load cell pins. -
Page 26: Menu Settings
EN-24 PX Series Balance 5. MENU SETTINGS 5.1 Menu Navigation TABLE 5-1. USER MENU STRUCTURE Factory Calibration Setup Units RS232 Print Lockout Reset Internal Cal Language Gram Baud Rate Stable Only Header 1 Reset All Calibration InCal Adjust Filter Level Kilogram Transmission Numeric Only... -
Page 27: Internal Calibration (Not Applicable To Excal Models
PX Series Balance EN-25 5.2.2 Internal Calibration (not applicable to ExCal models) Calibration is accomplished with the internal calibration mass. Internal Calibration can be performed at any time, provided the balance has warmed up to operating temperature and is level. With the Balance turned ON and no load on the pan, the internal calibration can be performed. -
Page 28: Linearity Calibration
EN-26 PX Series Balance 2. Press Yes to enter the Calibration Menu. To change the calibration mode, press No until Span Cal (span calibration) is displayed. 3. Press Yes to begin the span calibration. 4. The calibration masses value will be shown in the screen. - Page 29 PX Series Balance EN-27 Continue to follow the instructions on the display until the calibration is completed. Steps for linearity calibration 1. Press and hold the Tare / Menu-Cal button, and the Calibration Menu will display. 2. Press Yes to enter the Calibration Menu. To change the calibration mode, press No until Linearity Cal (linearity calibration) is displayed.
-
Page 30: Balance Setup
EN-28 PX Series Balance 6. Once the linearity calibration is completed successfully, "Linearity done" will display. Press any button to return to the previous screen. 5.3 Balance Setup Enter this sub-menu to customize balance functionality. Note: The factory default settings are shown below in bold. 5.3.1 Language Set the language displayed for menus and displayed messages. -
Page 31: Graduations
PX Series Balance EN-29 5.3.5 Graduations Set the displayed readability of the balance. 1 Division = standard readability. 10 Divisions = readability is increased by a factor of 10. For example, if the standard readability is 0.01g, selecting 10 Divisions will result in a displayed reading of 0.1 g. 5.3.6 Date Format Set the current date format. -
Page 32: Approved Mode
EN-30 PX Series Balance 5.3.13 Approved Mode Use this menu to set the Legal for Trade status. Off = standard operation. On = operation complies with Legal Metrology regulations. Note: When Approved Mode is set to On, the menu settings are affected as follows: Calibration Menu: For InCal models, only Internal Calibration is available. - Page 33 PX Series Balance EN-31 Changing Weighing Units 1. Press and hold the Print / Unit button until the Unit Menu is displayed. 2. The default unit is gram (g). To change the unit, press No to advance to the next unit. 3.
-
Page 34: Rs232 Interface Setup
EN-32 PX Series Balance Custom Unit = Conversion Factor x Grams. The LSD is the value by which the displayed weight is incremented or decremented. Note: The conversion factor is used by the balance to convert grams to the custom weighing unit and is defined by entering a factor and an exponent. -
Page 35: Handshake
PX Series Balance EN-33 7-NO-2 = 7 data bits, no parity, stop bit 2 7-ODD-1 = 7 data bits, odd parity, stop bit 1 7-ODD-2 = 7 data bits, odd parity, stop bit 2 5.5.3 Handshake Set the flow control method. None = no handshaking Xon-Xoff... -
Page 36: Balance Id
EN-34 PX Series Balance 5.6.8 Balance ID On = the balance ID is printed. Off = the balance ID is not printed. 5.6.9 Balance Name On = the balance name is printed. Off = the balance name is not printed. 5.6.10 User Name On = the user name is printed. -
Page 37: Glp
PX Series Balance EN-35 5.7 GLP Enter this menu to set the Good Laboratory Practices (GLP). Header 5.7.1 Enables the printing of GLP headings. There are up to 5 headings available. Alphanumeric settings up to 25 characters are available for each Header setting 5.7.2 Balance Name Set the balance name. -
Page 38: Legal For Trade (Lft
EN-36 PX Series Balance 6. LEGAL FOR TRADE (LFT) When the balance is used in trade or a legally controlled application it must be set up, verified and sealed in accordance with local weights and measures regulations. It is the responsibility of the purchaser to ensure that all pertinent legal requirements are met. -
Page 39: Printing
Use RS232 Interface Commands (Section 9.6.1) to control the balance from a PC. SPDC Software The Serial Port Data Collection / SPDC software is provided by Ohaus and can be used on operating systems that do not have the HyperTerminal software mentioned above. SPDC software can preliminarily collect and transfer the data to Microsoft files (such as Excel, Word, etc.). -
Page 40: Output Format
EN-38 PX Series Balance Output Format The Result Data, and G/N/T data, is output in the following format. Term. Field: Label Space Weight Space Unit Space Stability Space G/N Space Characters Length: 1 1 3 8 Note: 1. - Page 41 Verified By: ____________ Oil density: 0.8000 g/cm³ Signature: ____________ Dry Weight: 5.00 g Verified By: ____________ Signature: ____________ Verified By: ____________ INTERNAL CALIBRATION SPAN CALIBRATION LINEARITY CALIBRATION -OHAUS- -OHAUS- -OHAUS- 07/26/2017 05:16:53 03/19/2000 04:51:46 01/01/2000 17:30:47 Balance ID: Balance ID:...
-
Page 42: Maintenance
Busy (tare, zero, printing, waiting for a stable weight) Wait until completion Service Information If the troubleshooting section does not resolve your problem, contact an Authorized Ohaus Service Agent. Please visit our website www.ohaus.com to locate the Ohaus office nearest you. -
Page 43: Technical Data
PX Series Balance EN-41 9. TECHNICAL DATA Specifications Ambient conditions Indoor use only Altitude: Up to 2000 m Specified Temperature range: 10°C to 30°C Humidity: maximum relative humidity 80% for temperatures up to 30°C, decreasing linearly to 50% relative ... - Page 44 EN-42 PX Series Balance TABLE 9-1. SPECIFICATIONS InCal Model PX85 PX125D PX225D PX84 PX124 PX224 PX163 ExCal Model PX84/E PX124/E PX224/E PX163/E Capacity (g) 52/120 82/220 0.00001/ 0.00001/ Readability d (g) 0.0001 0.0001 0.0001 0.001 0.00001 0.0001 0.0001 0.00002/ 0.00002/ Repeatability (STDEV) (g) 0.0001 0.0001...
- Page 45 PX Series Balance EN-43 TABLE 9-2. SPECIFICATIONS (continued) InCal Model PX223 PX323 PX423 PX523 PX822 PX1602 PX2202 ExCal Model PX223/E PX323/E PX423/E PX523/E PX822/E PX1602/E PX2202/E Capacity (g) 1600 2200 Readability d (g) 0.001 0.001 0.001 0.001 0.01 0.01 0.01 Repeatability 0.001 0.001...
- Page 46 EN-44 PX Series Balance TABLE 9-3. SPECIFICATIONS (continued) InCal Model PX3202 PX4202 PX5202 PX2201 PX4201 ExCal Model PX3202/E PX4202/E PX5202/E PX2201/E PX4201/E PX6201/E PX8201/E Capacity (g) 3200 4200 5200 2200 4200 6200 8200 Readability d (g) 0.01 0.01 0.01 Repeatability 0.01 0.01 0.01...
- Page 47 PX Series Balance EN-45 TABLE 9-4. SPECIFICATIONS (continued) InCal Approval Model PX125DM PX124M PX224M PX323M PX523M PX3202M PX5202M PX4201M PX225DM PX85M Capacity (g) 52/120 3200 5200 4200 82/220 0.00001/ Readability d (g) 0.0001 0.0001 0.001 0.001 0.01 0.01 0.00001 0.00001 0.0001 Verification Interval e (g) 0.001...
-
Page 48: Drawings And Dimensions
EN-46 PX Series Balance Drawings and Dimensions Fully assembled dimensions Figure 9-1 0.001 g / 0.0001 g model Figure 9-2 0.01 g / 0.1 g model 9.3 Accessories TABLE 9-5. ACCESSORIES DESCRIPTION PART NUMBER Auxiliary Display PAD7 80251396 Density Kit 80253384 Calibrated Sinker for Liquid Density Determination 83034024... -
Page 49: Communication
PX Series Balance EN-47 Communication 9.4.1 Interface Commands Commands listed in the following table will be acknowledged by the balance. Command Function Characters Immediate Print of displayed weight (stable or unstable). Print displayed weight (stable or unstable). Continuous Print. Print on Stability. Enter Print Header Lines Same as pressing Zero Key Same as pressing Tare Key. -
Page 50: Rs232 (Db9) Pin Connections
9.4.3 USB Interface The Ohaus USB Interface is a unique solution to the problem of connecting a balance to a computer using a Universal Serial Bus (USB). USB devices are categorized into classes such as disk drives, digital cameras, printers, etc. -
Page 51: Usb Connection
Once Auto-Print is activated in the menu, the balance will send data as required. If there is data in the print buffer the printer will finish printing this data. 10. SOFTWARE UPDATES Ohaus is continuously improving its balance software. To obtain the latest release, please contact your Authorized Ohaus Dealer or Ohaus Corporation. -
Page 52: Compliance
This Class A digital apparatus complies with Canadian ICES-003. ISO 9001 Registration In 1994, OHAUS Corporation, USA, was awarded a certificate of registration to ISO 9001 by Bureau Veritas Quality International (BVQI), confirming that the OHAUS quality management system is compliant with the ISO 9001 standard’s requirements. - Page 53 Ohaus. In lieu of a properly returned warranty registration card, the warranty period shall begin on the date of shipment to the authorized dealer. No other express or implied warranty is given by Ohaus Corporation. Ohaus Corporation shall not be liable for any consequential damages.
- Page 54 Con oficinas en todo el mundo / Avec des bureaux partout dans le monde / Mit Büros weltweit / Con uffici in tutto il mondo www.ohaus.com *30372560* P/N 30372560 C © 2018 Ohaus Corporation, all rights reserved / todos los derechos reservados / tous droits réservés / alle Rechte vorbehalten / tutti i diritti riservati...
