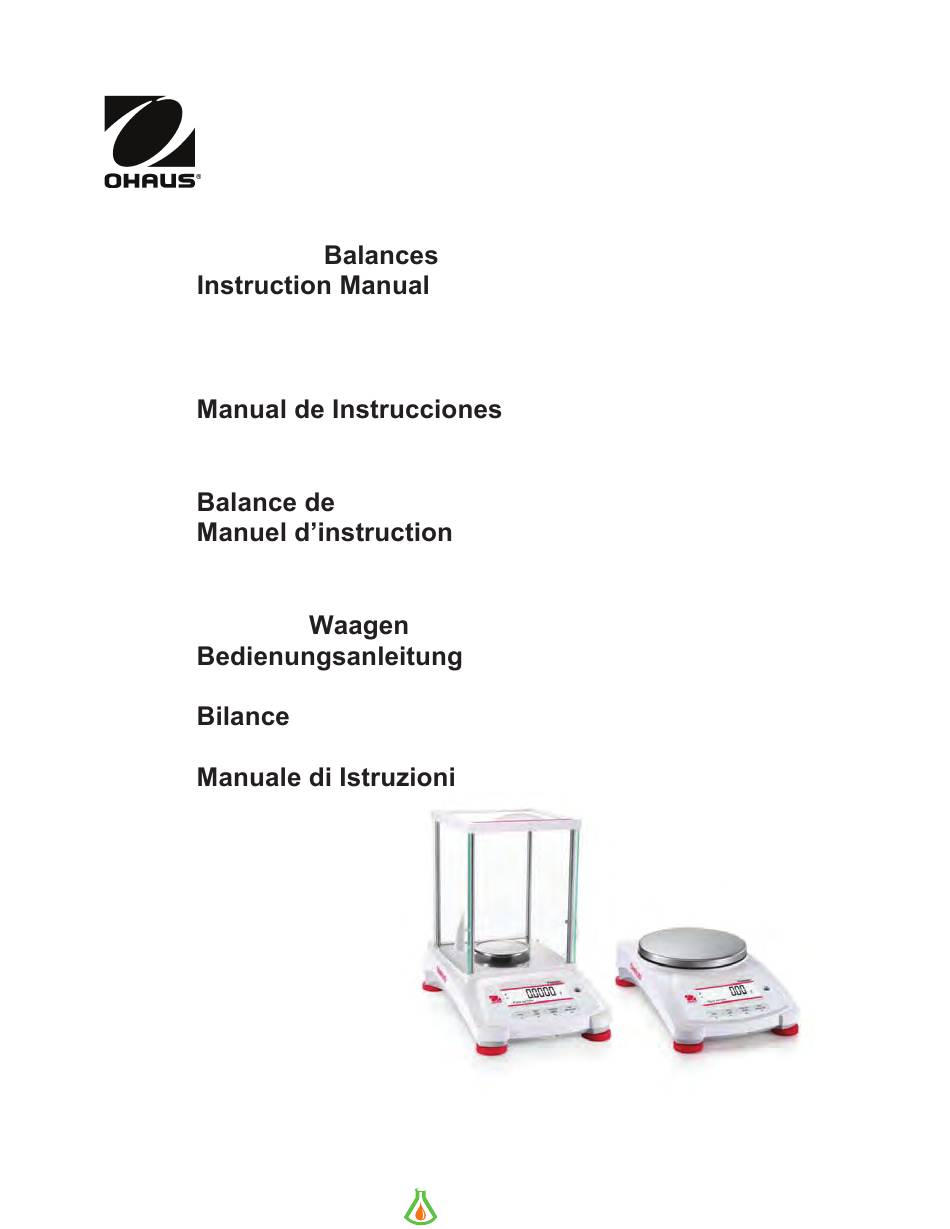

- Page 1 P P ioneer PX Series Pioneer Balanzas Serie PX Pionnier Séries PX Pioneer PX-Serie Pioneer Serie PX GlobalScientificSupply GLOBAL SCIENTIFIC SUPPLY sales@GlobalTestSupply.com www. .com The Laboratory Supply Company!
- Page 2 Description ............................. EN-3 Features ..............................EN-3 Definition of Signal Warnings and Symbols ................... EN-3 Safety Precautions ..........................EN-3 Unpacking .............................. EN-4 Select the Location ..........................EN-4 Leveling ..............................EN-4 Connecting Power and Acclimating the Balance ................... EN-5 Connecting the Interface ........................EN-5 Initial Calibration ............................
- Page 3 5.5.3 Handshake ............................EN-33 Print Settings ............................EN-33 5.6.1 Stable Only ............................EN-33 5.6.2 Numeric Only ........................... EN-33 5.6.3 Single Header ..........................EN-33 5.6.4 Print To ............................. EN-33 5.6.5 Auto Print ............................EN-33 5.6.6 Header ............................. EN-33 5.6.7 Date and Time ..........................EN-33 5.6.8 Balance ID ............................

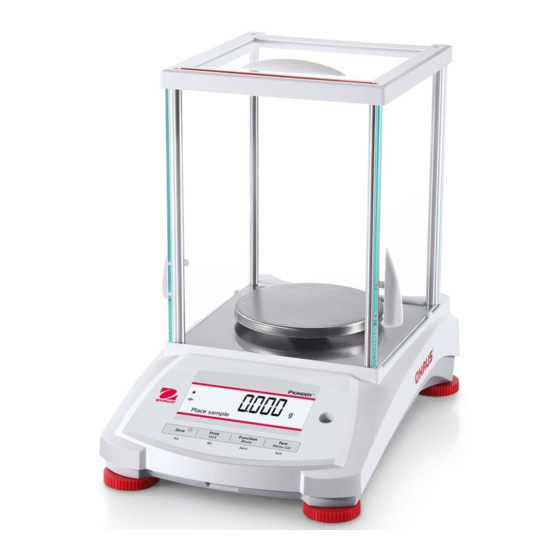

- Page 4 The PX balance is a precision weighing instrument that will provide you with years of service if properly cared for. PX balances are available in capacities from 82 grams to 8200 grams. 2-line backlit display, with 6 weighing applications and many other features. Safety notes are marked with signal words and warning symbols.
- Page 5 Carefully remove your PX balance and each of its components from the package. The included components vary depending on the balance model (see the list below). Save the packaging to ensure safe storage and transport. Please read the manual completely before installing and using the PX balance to avoid incorrect operation. Components included: Balance Power adapter + Attaching plug...
- Page 6 Connect the DC output connector to the power receptacle on the rear of the balance. Then connect the AC adapter plug to a suitable electrical outlet. It is suggested that the balance should not be used until it has been connected to power and acclimatised to the environment for a certain period of time.
- Page 7 The PX balance has a 2-line backlit display. If the Indicator is Sends the current Operation is Performs tare Off, turns on the displayed value to dependent on the operation. Indicator. the serial interface. application mode. If Indicator is On, sets zero.
- Page 8 Net (NET) Result Field: Stability (*) Information varies Negative (-) by application Centre of Zero (>0<) Pre-tare (PT) Unit Instructional Messages Weighing: Press to set the display to zero. Place an object on the pan. The display indicates the gross weight.
- Page 9 The PX balance can be operated in 6 application modes by long pressing the button. Before using any application, be sure the balance has been leveled and calibrated. Use this application to determine the weight of objects in the selected unit of measure. 1.
- Page 10 3. After confirmation by pressing , the message "Clear APW?" will appear on the screen. 4. If the APW of the last Parts Counting operation needs to be kept, press when the message "Clear APW?" displays. 5. Press , and the message "Sample size 10" will display with the numeral "10"...
- Page 11 Improving counting accuracy by re-calculating the piece weight automatically as parts are added. APW Optimization occurs only when the number of pieces added to the pan is between one and three times the number already on the pan. Changing printing setup. See Section 7 for more information. Before using any application, be sure the balance has been leveled and calibrated.
- Page 12 6. Remove the reference sample and place the test object on the pan. The ratio of the test object to the reference sample weight displayed percentage. 7. To view the reference sample weight or the test object weight, press the button.
- Page 13 4. Confirm the weighing time by pressing , and the message "Ready" will display at the lower left of the screen. 5. Place the dynamic object on the pan. The balance begins a countdown (averaging process). During the countdown, the screen shows the time remaining. 6.
- Page 14 When making density measurements, the material should weigh at least 10.0 mg on an analytical balance and 100 mg on a precision balance. Balance Preparation with Ohaus Density Kit (Optional) Allow the balance to warm up sufficiently before making measurements.
- Page 15 Place the Support into position over the bracket making sure the Support does not make contact with the Bracket as shown in illustration. Install beaker on support as shown. NOTE: Beaker and thermometer are not supplied as part of the density kit. The density Q is the quotient of the mass m and the volume V.
- Page 16 Place the solid in the Weighing Pan on the Weigh Below Hook in the liquid as shown. Ensure that there are no air bubbles on the solid to be weighed. Close the draft shield doors and weigh the solid (buoyancy P). The display indicates the density in grams/cc. For density determination of solids with a density less than 1 g/CM , the bottom of the Weigh Below Hook for solids must be used as it holds the solid body below the surface of the auxiliary liquid.
- Page 17 In DENSITY SETUP, set Mode to Liquid Density and enter sinker volume in cc’s. After weighing the sinker in air and then weighing the sinker immersed in liquid, the balance calculates the density of the liquid and is displayed in grams/cc. See illustrations below for placement of the sinker. When the sinker is immersed in the liquid, it must not come into contact with the bottom of the beaker.
- Page 18 Press and hold the button until Density appears. Press to initiate the Density Determination. Sample type: Solid Auxiliary Liquid: Water Porous Material: Off Water Temperature: Measure the actual water temperature using a precision thermometer. The water temperature is 20.0 by default. Press to increase or decrease the value of temperature.
- Page 19 3. Press the button to get the density of the sample. After completion of the test, press the button to test a new sample. Press and hold the button until Density appears. Press to enter the Density Determination. In determining density with the balance, the balance setup and density determination procedures are basically the same for a floating solid and a non-floating solid except for the necessary holder (as shown in the figure)
- Page 20 Sample type: Solid Auxiliary Liquid: Other Porous Material: Off The default value of the auxiliary liquid is 1.00000 g/cm Press to increase or decrease the value in accordance with the actual density of the auxiliary liquid. See Section 4.5.1 and Section 4.5.2 for the specific procedures for density determination.
- Page 21 Sample Type: Liquid Volume: The calibrated sinker has a default volume of 10.0 ml, which can be increased or decreased by pressing After setting the volume, press to begin the weighing. when the Density Type is set to Liquid, the Liquid type and Porous material selections are disabled.
- Page 22 Press and hold the button until Density appears. Press to enter the Density Determination. Sample type: Solid Auxiliary Liquid: Water Porous Material: On Set the following parameters by pressing Water Temperature Weight Oil Density Measure the actual water temperature using a precision thermometer.
- Page 23 3. Weigh the oiled sample in the liquid with the balance and the density determination kit. 4. When the * (symbol of stability) appears, press the button to confirm the weight of the oiled sample in the liquid. The density of the sample is displayed. 5.
- Page 24 Ensure the balance has been leveled and calibrated. The PX balance is equipped with a weigh below hook for weighing below the balance (as shown in the figure below). Before turning the balance over, remove the pan and draft shield elements (if present) to prevent damage. Do not place the balance on the pan support cone or load cell pins.
- Page 25 TABLE 5-1. USER MENU STRUCTURE Internal Cal Language Gram Baud Rate Stable Only Header 1 Reset All Calibration InCal Adjust Filter Level Kilogram Transmission Numeric Only Header 2 Setup Span Cal Milligram Handshake Single Header Header 3 Units Linearity Cal Auto Tare Carat Print To...
- Page 26 ExCal models only have Span Calibration and Linearity Calibration. Calibration is accomplished with the internal calibration mass. Internal Calibration can be performed at any time, provided the balance has warmed up to operating temperature and is level. With the Balance turned ON and no load on the pan, the internal calibration can be performed. Alternatively, press the button and select Internal Cal to initiate the internal calibration.
- Page 27 2. Press to enter the Calibration Menu. To change the calibration mode, press until Span Cal (span calibration) is displayed. 3. Press to begin the span calibration. 4. The calibration masses value will be shown in the screen. After the display shows "Place weights" and "100.000 g", place weight(s) of 100 g on the pan for calibration.
- Page 28 Continue to follow the instructions on the display until the calibration is completed. 1. Press and hold the button, and the Calibration Menu will display. 2. Press to enter the Calibration Menu. To change the calibration mode, press o until Linearity Cal (linearity calibration) is displayed.
- Page 29 6. Once the linearity calibration is completed successfully, "Linearity done" will display. Press any button to return to the previous screen. Enter this sub-menu to customize balance functionality. The factory default settings are shown below in bold. Set the language displayed for menus and displayed messages.
- Page 30 Set the displayed readability of the balance. 10 Divisions = readability is increased by a factor of 10. For example, if the standard readability is 0.01g, selecting 10 Divisions will result in a displayed reading of 0.1 g. Set the current date format. YYYY/MM/DD DD/MM/YYYY Set the date in the current date format.
- Page 31 Use this menu to set the Legal for Trade status. On = operation complies with Legal Metrology regulations. When Approved Mode is set to On, the menu settings are affected as follows: Calibration Menu: For InCal models, only Internal Calibration is available. All other functions are hidden. Balance Setup Menu: Filter Level is locked at the current setting.
- Page 32 1. Press and hold the button until the Unit Menu is displayed. 2. The default unit is gram (g). To change the unit, press to advance to the next unit. 3. Press to set the unit displayed to the weighing unit. Set Custom to On in the Unit menu to enable and define the Custom Unit.
- Page 33 Custom Unit = Conversion Factor x Grams. The LSD is the value by which the displayed weight is incremented or decremented. The conversion factor is used by the balance to convert grams to the custom weighing unit and is defined by entering a factor and an exponent.
- Page 34 7-NO-2 = 7 data bits, no parity, stop bit 2 7-ODD-1 = 7 data bits, odd parity, stop bit 1 7-ODD-2 = 7 data bits, odd parity, stop bit 2 Set the flow control method. Xon-Xoff = XON/XOFF handshaking Hardware = hardware handshaking Enter this sub-menu to customize data transfer settings.
- Page 35 Off = the balance ID is not printed. Off = the balance name is not printed. Off = the user name is not printed. Off = the project name is not printed. Off = the application name is not printed. Off = the weighing result is not printed.
- Page 36 Enter this menu to set the Good Laboratory Practices (GLP). Enables the printing of GLP headings. There are up to 5 headings available. Alphanumeric settings up to 25 characters are available for each Header setting Set the balance name. Alphanumeric settings up to 16 characters are available. Set the user name.
- Page 37 When the balance is used in trade or a legally controlled application it must be set up, verified and sealed in accordance with local weights and measures regulations. It is the responsibility of the purchaser to ensure that all pertinent legal requirements are met. Before the verification and sealing perform the following steps: 1.
- Page 38 Use RS232 Interface Commands (Section 9.6.1) to control the balance from a PC. The Serial Port Data Collection / SPDC software is provided by Ohaus and can be used on operating systems that do not have the HyperTerminal software mentioned above. SPDC software can preliminarily collect and transfer the data to Microsoft files (such as Excel, Word, etc.).
- Page 39 The Result Data, and G/N/T data, is output in the following format. Term. Label Space Weight Space Unit Space Stability Space G/N Space Characters 1. The length of the label field is not fixed. 2. Each field is followed by a single delimiting space (ASCII 32). 3.
- Page 40 Temp.: 20.0 Signature: ____________ Porous: On Verified By: ____________ Oil density: 0.8000 g/cm³ Signature: ____________ Dry Weight: 5.00 g Verified By: ____________ Signature: ____________ Verified By: ____________ -OHAUS- -OHAUS- -OHAUS- 07/26/2017 05:16:53 03/19/2000 04:51:46 01/01/2000 17:30:47 Balance ID: Balance ID:...
- Page 41 Periodically verify calibration by placing an accurate weight on the balance and viewing the result. If calibration is required, refer to section 5.2 for instructions. Disconnect the balance from the power supply before cleaning. Make sure that no liquid enters the interior of the balance. Clean the balance at regular intervals.
- Page 42 Ambient conditions Indoor use only Altitude: Up to 2000 m Specified Temperature range: 10°C to 30°C Humidity: maximum relative humidity 80% for temperatures up to 30°C, decreasing linearly to 50% relative humidity at 40°C Operability is assured at ambient temperatures between 5°C and 40°C Mains supply voltage fluctuations: up to ±10% of the nominal voltage Installation category II Pollution degree: 2...
- Page 43 TABLE 9-1. SPECIFICATIONS InCal Model PX85 PX125D PX225D PX84 PX124 PX224 PX163 ExCal Model PX84/E PX124/E PX224/E PX163/E Capacity (g) 52/120 82/220 0.00001/ 0.00001/ Readability d (g) 0.0001 0.0001 0.0001 0.001 0.00001 0.0001 0.0001 Repeatability (STDEV) 0.00002/ 0.00002/ 0.0001 0.0001 0.0001 0.001 0.00002...
- Page 44 TABLE 9-2. SPECIFICATIONS (continued) InCal Model PX223 PX323 PX423 PX523 PX822 PX1602 PX2202 ExCal Model PX223/E PX323/E PX423/E PX523/E PX822/E PX1602/E PX2202/E Capacity (g) 1600 2200 Readability d (g) 0.001 0.001 0.001 0.001 0.01 0.01 0.01 Repeatability (STDEV) 0.001 0.001 0.001 0.001 0.01...
- Page 45 TABLE 9-3. SPECIFICATIONS (continued) InCal Model PX3202 PX4202 PX5202 PX2201 PX4201 ExCal Model PX3202/E PX4202/E PX5202/E PX2201/E PX4201/E PX6201/E PX8201/E Capacity (g) 3200 4200 5200 2200 4200 6200 8200 Readability d (g) 0.01 0.01 0.01 Repeatability (STDEV) 0.01 0.01 0.01 Linearity (g) ±0.02 ±0.02...
- Page 46 TABLE 9-4. SPECIFICATIONS (continued) InCal Approval PX125DM PX225DM PX85M PX124M PX224M PX323M PX523M Model Capacity (g) 52/120 82/220 0.00001/ Readability d (g) 0.00001 0.00001 0.0001 0.0001 0.001 0.001 0.0001 Verification 0.001 0.001 0.001 0.001 0.001 0.01 0.01 Interval e (g) Class Repeatability 0.00002/...
- Page 47 TABLE 9-5. SPECIFICATIONS (continued) InCal Approval Model Capacity (g) 3200 5200 4200 Readability d (g) 0.01 0.01 Verification Interval e (g) Class Repeatability (STDEV) (g) 0.01 0.01 Linearity (g) ±0.02 ±0.02 ±0.2 Stabilization Time Typical (s) Sensitivity temperature drift ±3 ±3 ±10 (PPM/K)
- Page 48 Fully assembled dimensions Figure 9-1 0.001 g / 0.0001 g model Figure 9-2 0.01 g / 0.1 g model TABLE 9-5. ACCESSORIES Auxiliary display, AD7-RS 30472064 Density Kit 80253384 Calibrated Sinker for Liquid Density Determination 83034024 USB Interface Cable 83021085 Security Device 80850043 80500524...
- Page 49 Commands listed in the following table will be acknowledged by the balance. Immediate Print of displayed weight (stable or unstable). Print displayed weight (stable or unstable). Continuous Print. Print on Stability. Enter Print Header Lines Same as pressing Zero Key Same as pressing Tare Key.
- Page 50 End-of-line Not selectable The Ohaus USB Interface is a unique solution to the problem of connecting a balance to a computer using a Universal Serial Bus (USB). USB devices are categorized into classes such as disk drives, digital cameras, printers, etc.
- Page 51 Once Auto-Print is activated in the menu, the balance will send data as required. If there is data in the print buffer the printer will finish printing this data. Ohaus is continuously improving its balance software. To obtain the latest release, please contact your Authorized Ohaus Dealer or Ohaus Corporation.
- Page 52 This Class A digital apparatus complies with Canadian ICES-003. In 1994, OHAUS Corporation, USA, was awarded a certificate of registration to ISO 9001 by Bureau Veritas Quality International (BVQI), confirming that the OHAUS quality management system is compliant with the ISO 9001 standard’s requirements.
- Page 53 Ohaus. In lieu of a properly returned warranty registration card, the warranty period shall begin on the date of shipment to the authorized dealer. No other express or implied warranty is given by Ohaus Corporation. Ohaus Corporation shall not be liable for any consequential damages.
