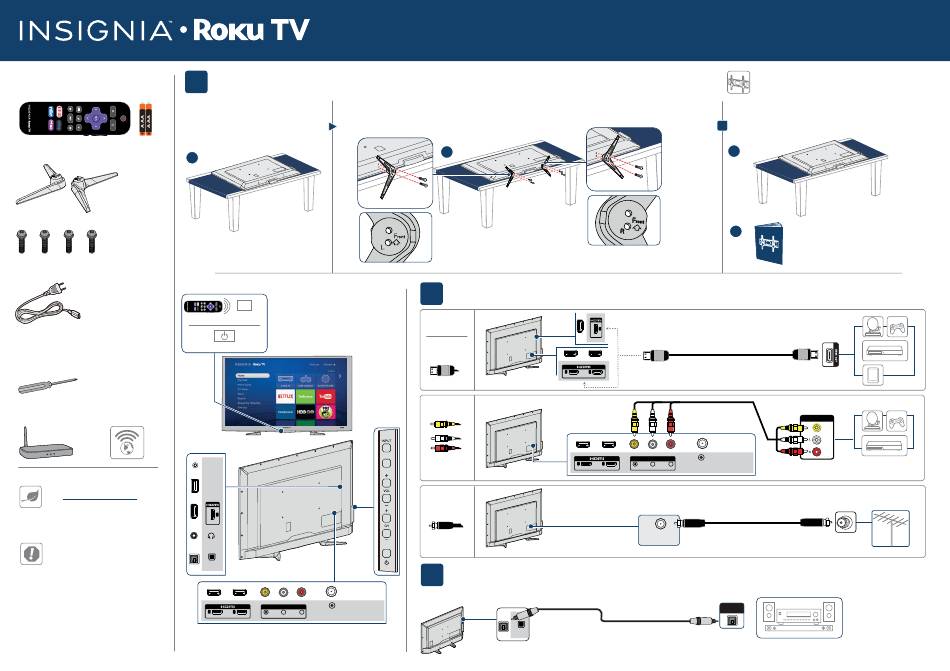

Insignia Roku TV NS-55DR420NA16 Quick Setup Manual

INCLUDED ACCESSORIES
1
Remote control and two AAA batteries
+ +
A
TV stands
A
M6 screws (36 mm length) (4 pcs.)
Power cord
FEATURES
WHAT YOU NEED
(not included)
Phillips screw driver
Wireless router*
Internet connection*
(needed for streaming)
(needed for streaming)
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then
click Support & Service. Enter
NS-55DR420NA16 in the box under
Manual, Firmware, Drivers & Product
►
Information, then click .
STOP
Do not plug your power cord in until all
other devices have been connected.
*Subscription or other payment may
be required to access certain content.
START HERE
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and Phillips screwdriver.
Carefully place your TV face-down on a
B Align the the TV stands with the screw holes on the bottom of the TV, then secure the stands to the TV with
cushioned, clean surface.
the four provided screws.
M6 × 36 mm screws
Remote control sensor
Power indicator
TV
RESET
USB
3
SPDIF
AV IN
1 2 ANT / CABLE
L R
ARC VIDEO
Before using your new product, please read these
instructions to prevent any damage.
B
Right
Left
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device such as a DVD or Blu-ray disc player, game console, or tablet?
WHICH CABLES
DO YOU HAVE?
HDMI
(BEST)
Best video quality
AV
(GOOD)
MUTE
COAXIAL
(GOOD)
AV IN
DIGITAL L AUDIO R
- - VIDEO / Y
OUTPUT
COMPONENT IN
(OPTICAL)
CONNECTING AUDIO DEVICES
3
USING DIGITAL AUDIO
SPDIF
A
B
OR
A
M6 × 36 mm screws
B
Multi-purpose jacks: You can plug any device that uses HDMI into any HDMI jack. However,
certain devices must be connected to the ARC jack. See the instructions that came with your
3
ARC-enabled device for more information.
1 2
ARC
AV IN
1 2 ANT / CABLE
L R
ARC VIDEO
P P
B R
ANT / CABLE
How do I connect my TV to external speakers?
OPTICAL
INPUT
Note: See the instructions that came with your speakers for more information.
Quick Setup Guide
|
NS-55DR420NA16
55" 1080P, 60Hz, LED Roku TV
WALL MOUNT
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
Carefully place your TV face-down on a cushioned, clean surface.
See the instructions that came with your wall mount for
more information about how to correctly mount your TV.
Your TV has four VESA mounting holes on the back. If you attach a
wall-mount bracket to the back of your TV, the bracket must be securely
attached, using all four holes. If you do not use all four mounting holes,
your TV may fall and cause property damage or personal injury. See the
documentation that came with your wall mount for complete mounting
instructions.
AUDIO/VIDEO OUT
CABLE
SOUNDBAR
