Insignia NS-48D510NA17 Quick Setup Manual

INCLUDED ACCESSORIES
Remote control and
two AAA batteries
A
+ +
A
Stand bases
M4 screws (20 mm length) (4 pcs.)
FEATURES
Power cord
Remote control
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then
Power indicator
click Support & Service. Enter
NS-48D510NA17, NS-55D510NA17 or
NS-55D510MX17 in the box under
Manual, Firmware, Drivers & Product
►
Information, then click .
STOP
Do not plug your power cord in until all
other devices have been connected.
Before using your new product, please read these
instructions to prevent any damage.
START HERE
1
How do I attach the stands to my TV? (not for wall mounting)
You'll need: Soft surface and
Phillips screwdriver
B Make sure that the arrows on the bottoms of the stands point toward the front of
Place your TV face-down on a cushioned,
the TV. Align the screw holes on the TV stands with the holes on the bottom of
clean surface.
your TV, then secure each stand with two of the M4 × 20 mm screws.
B
M4 × 20 mm screws
Remote control sensor
Power indicator
sensor
OR
M4 × 20 mm screws
2 MAKING CONNECTIONS
How do I watch TV (cable, satellite, or antenna) or connect a device, such as a DVD or Blu-ray disc player or game console?
WHICH CABLES
Multi-purpose jacks: You can plug any device that uses HDMI into any HDMI jack. However,
DO YOU HAVE?
certain devices must be connected to the HDMI1/ARC jack. See the instructions that came with
your device for more information.
HDMI
(BEST)
Best video quality
AV
(GOOD)
DIGITAL
OUTPUT
(OPTICAL)
COAXIAL
(GOOD)
Quick Setup Guide
|
NS-48D510NA17/NS-55D510NA17/NS-55D510MX17
WALL MOUNT
How do I prepare my TV for wall mounting? (not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
A Carefully place your TV face-down on a cushioned, clean surface.
B See the instructions that came with your wall-mount for more information about which screws to
use and how to correctly mount your TV.
A
B Your TV has four VESA mounting holes on the back. If you attach a wall-mount bracket
to the back of your TV, the bracket must be securely attached, using all four holes.
If you do not use all four mounting holes, your TV may fall and cause property damage
or personal injury. See the documentation that came with your wall-mount for
complete mounting instructions.
L L - AUDIO - - AUDIO - R R
USB HDMI1/ARC HDMI2 HDMI3
AV IN AV IN

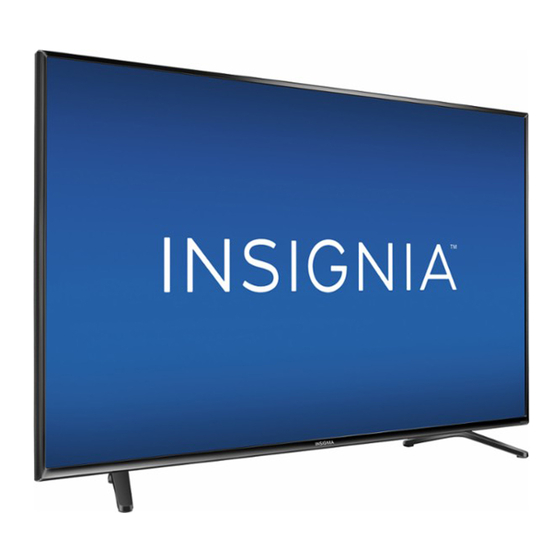

48"/55" 1080p 60 Hz LED TV
/
ANT/CABLE
AUDIO OUT
IN
AUDIO/VIDEO OUT
CABLE
