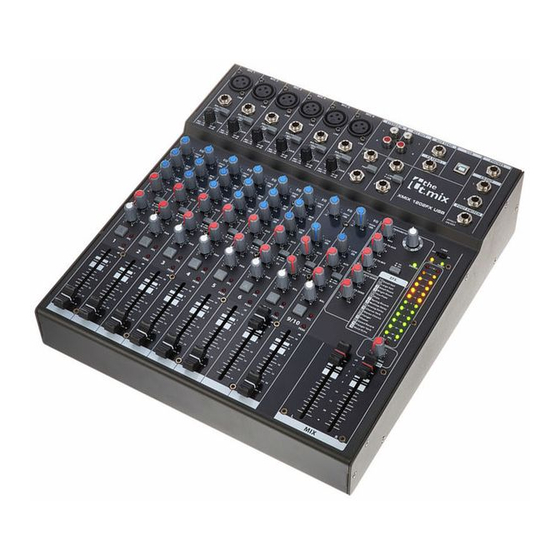

- Page 1 1202 FX USB mixer user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 01.02.2018, ID: 422794...
-
Page 3: Table Of Contents
1.2 Notational conventions....................4 1.3 Symbols and signal words................... 4 Safety instructions......................... 6 Features............................8 Installation and starting up....................9 Connections and controls....................10 Technical specifications....................18 Plug and connection assignment................. 20 Protecting the environment................... 22 xmix 1202 FX USB... -
Page 4: General Information
Our products are subject to a process of continuous development. Thus, they are subject to change. 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. - Page 5 This combination of symbol and signal word indicates a possible dangerous situation that can result in mate- rial and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. xmix 1202 FX USB...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for amplification, mixing and playback of signals from musical instruments and microphones. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 NOTICE! Danger of short circuit Switching on phantom power will damage the device if unbalanced XLR cables are connected. Only turn on phantom power when exclusively balanced XLR cables are connected. xmix 1202 FX USB...
-
Page 8: Features
Features Features 10-channel mixer with built-in FX processor 6 mono channels (MIC, line) with low cut 3-band EQ and pan control 2 stereo channels with 2-band EQ and balance control Control room output L/R (1/4" jack) Additional input via RCA (stereo in / rec out) 1 ×... -
Page 9: Installation And Starting Up
PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet. xmix 1202 FX USB... -
Page 10: Connections And Controls
Connections and controls Connections and controls Mono channel strip 1 [MIC] Balanced XLR mono input to connect a microphone. 2 [LINE] 1/4" phone input to connect a line level audio source (keyboards, drum modules etc., balanced or unbalanced). 3 [80 Hz HPF] High pass filter to attenuate rumble noise and other low frequency interfer- ence. - Page 11 When this switch is pressed, the signal portion set with the [AUX] control is not affected by the channel fader ([PRE]). When the switch is not pressed, the AUX signal is not subject to the channel fader ([POST]). 31 [PFL] LED This LED lights on activated PFL function. xmix 1202 FX USB...
- Page 12 Connections and controls 32 [PEAK] The LED lights up on channel overload. If this happens in channel 9/10 press the [PAD] switch. When overload occurs in channel 11/12 reduce the output level of the signal source connected here. 33 The channel fader sets the strength of the channel signal in the overall signal.
- Page 13 Rotary control to select the desired effect, see list [EFX.] printed beneath the ‘ON | OFF’ switch. 40 [SIGNAL] When this LED lights up a signal is present at the input of the effect section. 41 [ON | OFF] Button to turn the effects function on or off. xmix 1202 FX USB...
- Page 14 Connections and controls Master section [AUX SEND] At this line level output the signal set with the [AUX] channel controls is present, maybe to create a monitor mix. [FX SEND] At this line level output the signal set with the [FX] channel controls is present, maybe to be sent to an external effects device.
- Page 15 [CR & PHONES] Rotary control to adjust the level at the outputs [CR OUT] and [PHONES]. [L MIX R] Master fader to adjust the sum level at the outputs [MAIN OUTPUT], [CR OUT] and [PHONES]. xmix 1202 FX USB...
- Page 16 Connections and controls Rear panel 56.57 [MAIN OUTPUTS] Balanced 1/4" phone outputs for connecting power amplifiers, effects or recording devices. 58.59 [MAIN OUTPUTS] Balanced XLR outputs for connecting power amplifiers, effects or recording devices. 60 [POWER] Mains switch to turn the device on or off. 61 IEC chassis plug for mains connection with fuse holder.
- Page 17 Connections and controls Connection pattern – PC home recording xmix 1202 FX USB...
-
Page 18: Technical Specifications
Technical specifications Technical specifications Max. output level (1% THD @ 1 kHz) MAIN OUTPUT XLR: +26 dBu ± 1 dBu 1/4" phone socket, balanced: +26 dBu ± 1 dBu Max. output level (1% THD @ 1 kHz) MAIN OUTPUT XLR: +21 dBu ± 1 dBu 1/4"... - Page 19 100 – 240 V 50/60 Hz Fuse 5 mm × 20 mm, 1.6 A, 250 V, slow-blow Power consumption 40 W Dimensions (W × H × D) 315 mm× 100 mm× 340 mm Weight 4.35 kg xmix 1202 FX USB...
-
Page 20: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 21 Ground, shielding Signal (in phase, +) Signal (out of phase, –) XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding xmix 1202 FX USB...
-
Page 22: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
