Summary of Contents for thomann the t.mix 401-USB

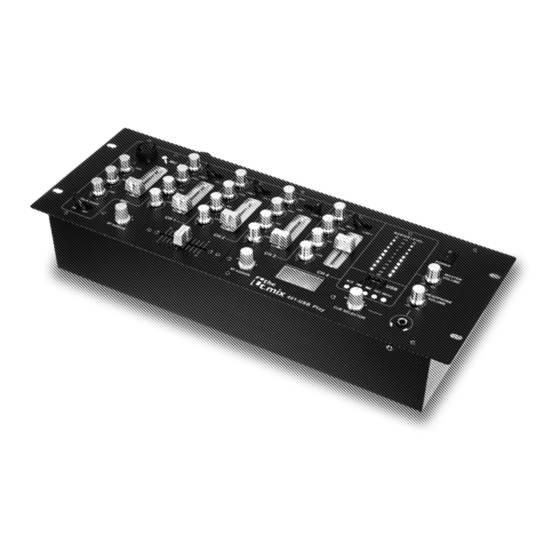

- Page 1 401-USB mixer user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 02.08.2018, ID: 441280...
-
Page 3: Table Of Contents
Table of contents Table of contents General information......................4 1.1 Further information......................4 1.2 Notational conventions....................4 1.3 Symbols and signal words................... 4 Safety instructions......................... 6 Features............................8 Installation..........................9 Connections and controls....................10 Technical specifications....................13 Plug and connection assignment................. 14 Protecting the environment................... -
Page 4: General Information
Our products are subject to a process of continuous development. Thus, they are subject to change. 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. - Page 5 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in mate‐...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for amplification, mixing and playback of signals from musical instruments and microphones. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is pro‐...
-
Page 8: Features
Features Features 4-channel DJ mixer with USB player 1 × microphone input with talk over (XLR / 1/4" combo jack) 1 × microphone input (1/4" phone socket) 1 × headphones output (stereo, as 1/4" phone jack) 1 × master output (RCA sockets) 2 ×... -
Page 9: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. Create all connections while the device is off. -
Page 10: Connections And Controls
Connections and controls Connections and controls Front panel 1 [MIC 1] Microphone input, designed as XLR / 1/4" phone combo socket. 2 [HIGH], [MID], [LOW] Rotary control for direct tone control of the microphone input signal (bass, mids, treble) 3 [TALK OVER] Enables the Talk over function When the selector switch is moved in the ON position, all other signal sources are attenuated, so that the micro‐... - Page 11 Connections and controls 10 [MASTER VOLUME] Rotary control for adjusting the master out volume 11 [USB] Connection for recording or playback via a USB device. Before ejecting, pause USB stick playback or select another playback source. 12 [HEADPHONE VOLUME] Rotary control for adjusting the headphones volume 13 Monitor output for headphones, designed as 1/4"...
- Page 12 Connections and controls Rear panel 20 IEC chassis plug for operating voltage supply with fuse holder Should the fuse have blown, disconnect the unit from the power supply and replace the fuse with a new fuse of the same type. 21 Master output for connecting an amplifier or powered speaker box, designed as RCA sockets.
-
Page 13: Technical Specifications
Technical specifications Technical specifications Inputs Microphone: 1.5 mV / 1 kΩ Phono: 3 mV / 47 kΩ Line: 150 mV / 27 kΩ Outputs Master: 350 mV / 5.6 kΩ Rec: 1 V / 5.6 kΩ Phone: 500 mV / 32 Ω Tone control (bass, mids, treble) -13 dB…+13 dB Frequency range... -
Page 14: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 15 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding 401-USB...
-
Page 16: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 17 Notes 401-USB...
- Page 18 Notes mixer...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
