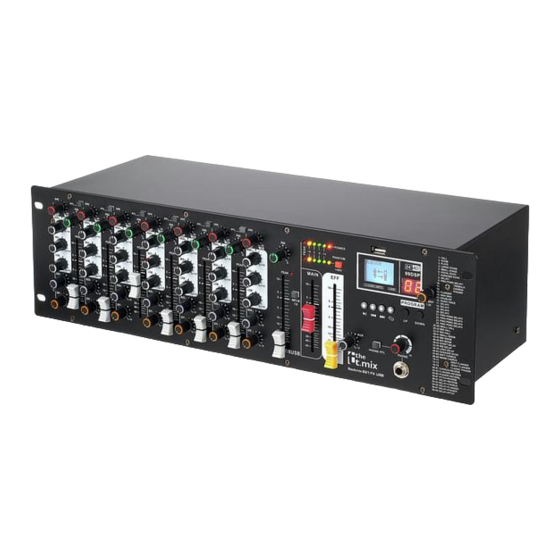

thomann t.mix Rackmix 821 FX User Manual

thomann t.mix Rackmix 821 FX User Manual

With built-in usb audio player

Advertisement

Rackmix 821 FX USB
mixer
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the t.mix Rackmix 821 FX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for thomann t.mix Rackmix 821 FX

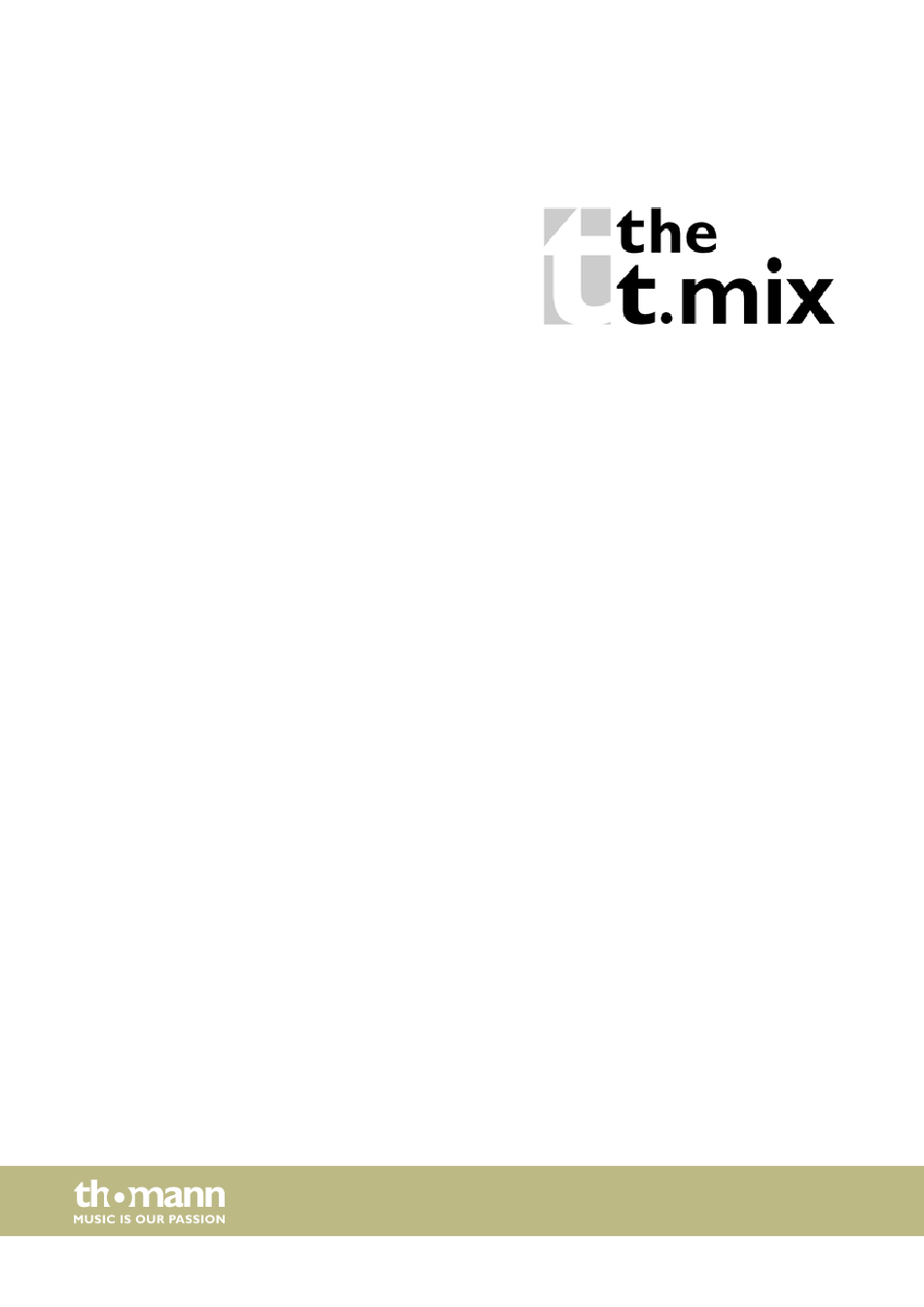

  • Page 1 Rackmix 821 FX USB mixer user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 26.11.2018, ID: 445450...
  • Page 3: Table Of Contents

    Table of contents Table of contents General information......................4 1.1 Further information......................4 1.2 Notational conventions....................4 1.3 Symbols and signal words................... 4 Safety instructions......................... 6 Features............................9 Installation and starting up..................... 10 Connections and controls....................11 Technical specifications....................16 Plug and connection assignment.................
  • Page 4: General Information

    Our products are subject to a process of continuous development. Thus, they are subject to change. 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download.
  • Page 5 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a possible dangerous situation that can result in minor injury if it is not avoided.
  • Page 6: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used for amplification, mixing and playback of signals from musical instruments and microphones. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage.
  • Page 7 Safety instructions CAUTION! Possible hearing damage With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impair‐ ment. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
  • Page 8 Safety instructions NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
  • Page 9: Features

    Features Features 8-channel rack mixer with built-in USB audio player and multi-effects unit 8 mono channels (MIC, Line, Insert) 3-band EQ and pan control PFL switch per channel 2 AUX ways (1 × FX, 1 × Aux) Master output L/R via 2 × XLR and 2 × 1/4" phone socket Adjustable headphones output (1/4"...
  • Page 10: Installation And Starting Up

    Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 11: Connections And Controls

    Connections and controls Connections and controls Mono channel strips 1 [GAIN] Rotary control to adjust the input level 2 [PFL] With this switch pressed, the channel signal is unaffectedly by the setting of the channel fader and the internal effects section and present at the output [PHONES] to adapt the values).
  • Page 12 Connections and controls Main and effects section, USB 9 [MP3 IN 7/8] Switches the signal source for channels 7 and 8 between the audio player and the inputs [R/MONO] / [L] on the rear panel. 10 These LED chains indicate the level of the sum signal. Keep the level within a range below +18. The red LEDs indicates overload.
  • Page 13 Connections and controls 17 These buttons are used to operate the built-in audio player. : Pause / Playback : Previous track : Next track : Operating mode selection 18 [PHONES] Volume control for headphone output 19 Stereo headphones output 20 [PHONES PFL] Switches the signal source for the headphone output between the MAIN signal (switch not pressed) or those input channels that have pre-fader listening activated with the [PFL] switch.
  • Page 14 Connections and controls Rear panel 24 [ON | OFF] Mains switch to turn the device on or off. 25 [MAIN OUT] Balanced 1/4" phone and XLR outputs for connecting power amplifiers, effects or recording devices. 26 [EFF SEND] 1/4" phone socket, usable, for example, for connecting external effects units. At this output, the signal controlled by the [EFF] fader is present.
  • Page 15 Connections and controls 32 [R/MONO] / [L] Line level input for connecting external audio devices, e.g. signal processors, designed as a 1/4" phone socket. 33 IEC chassis plug with fuse holder for the power supply. Should the fuse have blown, disconnect the unit from the power supply and replace the fuse with a new fuse of the same type.
  • Page 16: Technical Specifications

    Technical specifications Technical specifications Max. output level Main Balanced: +28 dBu Unbalanced: +22 dBu AUX SEND, REC OUT Unbalanced: +22 dBu Headphones output +15 dBu / 150 mW Frequency response MIC input 10 Hz … 200 kHz Line input 10 Hz … 130 kHz Signal-to-noise ratio MIC input 120 dB E.I.N.
  • Page 17: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
  • Page 18 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding mixer...
  • Page 19: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 20 Notes mixer...
  • Page 21 Notes Rackmix 821 FX USB...
  • Page 22 Notes mixer...
  • Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
