THERMO-HYGROMETER LVT-15 IR
Description :

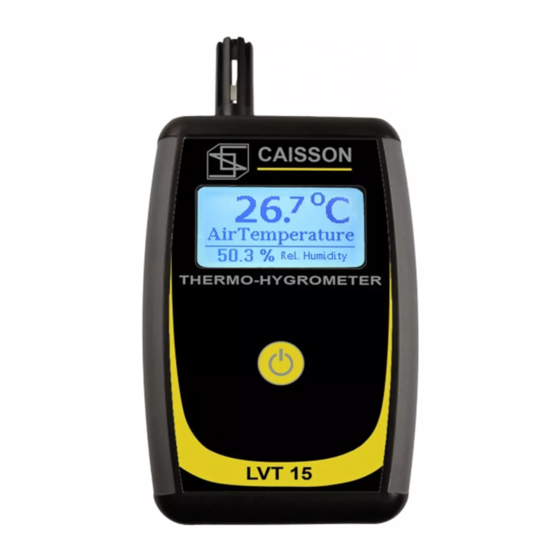

The compact thermo-hygrometer LVT-15 IR is used for measuring air temperature and relative air humidity
(RH). These measurements enable the device to computes the value of the dew point. The instrument is
equipped with a 3,5mm jack for additional temperature measurement (STP-10A). The device contains an
inbuilt infrared sensor (IR) for measuring surface temperature.
The kit includes:
1. LVT-15 IR device,
2. batteries,
3. case,
4. manual.
Note: The device is supplied with the case.
Note: Surface temperature sensors are not included,
they are sold separately.
Specifi cations:
Current consumption:
Dimensions:
Weight:
Display:
Resolution:
Operating conditions:
WITH IR SENSOR
User Manual
2 x AA 1,5 Volt
34mA
146 mm x 79 mm x 26 mm (H×B×T)
200g
monochromatic with backlight
128 x 64 pixel
5ºC ~ 40ºC <80% of rel.humidity without condensation
CAISSON ELEKTRONIK GmbH
Boschstrasse 16, D-47533 Kleve, Deutschland
T: +49 (0) 2821-894390
info@caisson-gmbh.de www.caisson-gmbh.de
Advertisement
Table of Contents
Related Manuals for CAISSON LVT-15 IR
Summary of Contents for CAISSON LVT-15 IR
- Page 1 User Manual Description : The compact thermo-hygrometer LVT-15 IR is used for measuring air temperature and relative air humidity (RH). These measurements enable the device to computes the value of the dew point. The instrument is equipped with a 3,5mm jack for additional temperature measurement (STP-10A). The device contains an inbuilt infrared sensor (IR) for measuring surface temperature.
- Page 2 STP 10A external ture as -10 ~ +50°C ±0,3°C 3,5 mm jack for extra item thermocouple connector The illustration shows the most important elements of the equipment CAISSON ELEKTRONIK GmbH Boschstrasse 16, D-47533 Kleve, Deutschland T: +49 (0) 2821-894390 info@caisson-gmbh.de www.caisson-gmbh.de...
- Page 3 Other parameters are sequentially shown in this operating mode the bottom of the screen in „the infobar”. Press the function key again to have other values highlighted. CAISSON ELEKTRONIK GmbH Boschstrasse 16, D-47533 Kleve, Deutschland T: +49 (0) 2821-894390...
- Page 4 In order to get out of the setup menu and back into the measuring mode, select SAVE & EXIT, then keep the key pressed for 2 seconds. The following pictures show the described procedure. CAISSON ELEKTRONIK GmbH Boschstrasse 16, D-47533 Kleve, Deutschland T: +49 (0) 2821-894390...
- Page 5 CAISSON ELEKTRONIK GmbH Boschstrasse 16, D-47533 Kleve, Deutschland T: +49 (0) 2821-894390 info@caisson-gmbh.de www.caisson-gmbh.de...
- Page 6 Power supply The LVT-15 IR hygrometer is powered by two disposable or rechargeable AA batterie The battery status indicates the battery charge level. If an empty battery icon is displayed, replace the batteries with the same battery type. Do not combine a rechargeable with a disposable battery or a partially discharged with a full battery.
