PAINT CHECKER FMG-30
User manual
1. Description of the instrument
Paint Checker FMG-30 is used to determine color intensity i.e. it enables measurement of the
intensity difference between a sample under examination and a specimen. The measurement's
output shows two colors most closely related to the sample under examination in reference to a
selected color palette and the percentage of the components of the RGB color space. The vertical
construction of the instrument enables measurement of very small area.

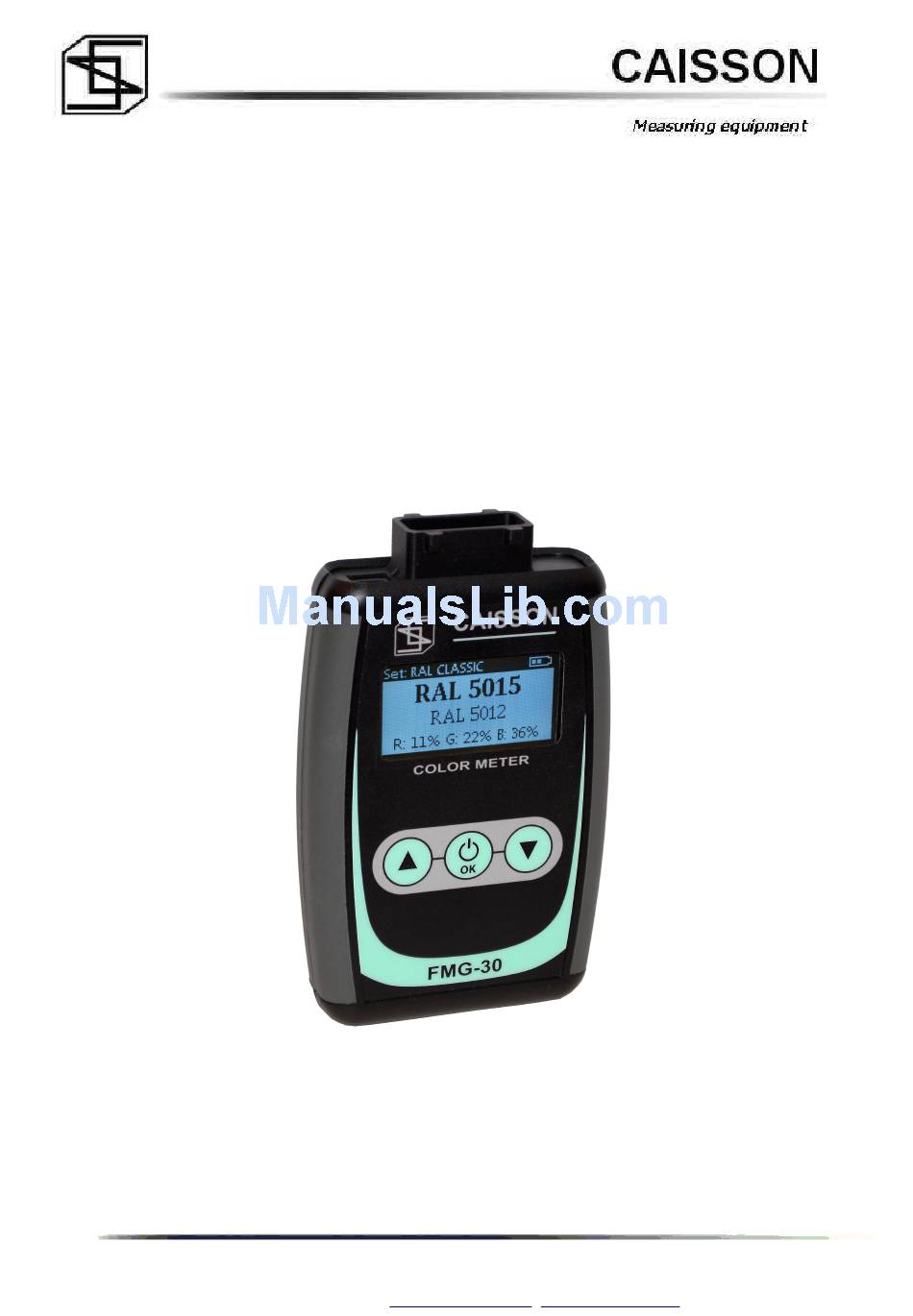

Figure 1. Paint Checker general view
CAISSON Elektronik GmbH
Boschstrasse 16, D-47533 Kleve, Deutschland
tel: +49(0)2821-894390
info@caisson-gmbh.de www.caisson-gmbh.de
Advertisement
Table of Contents
Related Manuals for CAISSON PAINT CHECKER FMG-30
Summary of Contents for CAISSON PAINT CHECKER FMG-30
- Page 1 User manual 1. Description of the instrument Paint Checker FMG-30 is used to determine color intensity i.e. it enables measurement of the intensity difference between a sample under examination and a specimen. The measurement's output shows two colors most closely related to the sample under examination in reference to a selected color palette and the percentage of the components of the RGB color space.
-
Page 2: General Information
When turned on for the first time the instrument operates on the Ral Classic color palette. The instrument automatically turns off after 3 minutes of not being used. When turned on, the instrument operates on the previously used color palette and language. CAISSON Elektronik GmbH Boschstrasse 16, D-47533 Kleve, Deutschland tel: +49(0)2821-894390... -
Page 3: Description Of The Instrument
RGB d) currently selected color palette, e) battery charge indicator; 5. Color sensor; 6. Battery shutdown. CAISSON Elektronik GmbH Boschstrasse 16, D-47533 Kleve, Deutschland tel: +49(0)2821-894390 info@caisson-gmbh.de www.caisson-gmbh.de... - Page 4 USB, Enables connecting the colorimeter to a computer by means of microUSB – USB. Language, to change the language: German, Dutch, French, Italian, English, Czech or Swedish. CAISSON Elektronik GmbH Boschstrasse 16, D-47533 Kleve, Deutschland tel: +49(0)2821-894390 info@caisson-gmbh.de www.caisson-gmbh.de...
-
Page 5: Making Measurements
A sample that changes appearance depending on the viewpoint Metallic or husked dye content Samples with extremely high brightness (can contain fluorescent pigments) 11. Turning the instrument off CAISSON Elektronik GmbH Boschstrasse 16, D-47533 Kleve, Deutschland tel: +49(0)2821-894390 info@caisson-gmbh.de www.caisson-gmbh.de... -
Page 6: Maintenance And Service
Instrument Care section below. Warranty Notwithstanding the statutory warranty claims, CAISSON provides a warranty in accordance with the laws of the Customer's country for a period of at least two years from the date of sale of the instrument to the end user. The warranty covers only those faults which are caused by defects in material or workmanship. -
Page 7: Specifications
Power consumption during normal operation: 350mW Lifetime (at room temperature): approximately 18h PHYSICAL CHARACTERISTICS Dimensions: 128 mm x 79 mm x 25 mm Weight: 162 g including batteries/116 g without batteries CAISSON Elektronik GmbH Boschstrasse 16, D-47533 Kleve, Deutschland tel: +49(0)2821-894390 info@caisson-gmbh.de www.caisson-gmbh.de...
