Color Meter FMG-30
User manual
1. Description of the instrument
Color meter enables measurement of the color intensity diff erence between a sample under examination and
a specimen. Based on a selected color palette, the device's feedback information shows two colors most
closely related to the sample under examination and CIELab color space values L*a*b or the percentage
of the components of the sRGB color space. The instrument's vertical construction enables measurement
of very small areas.

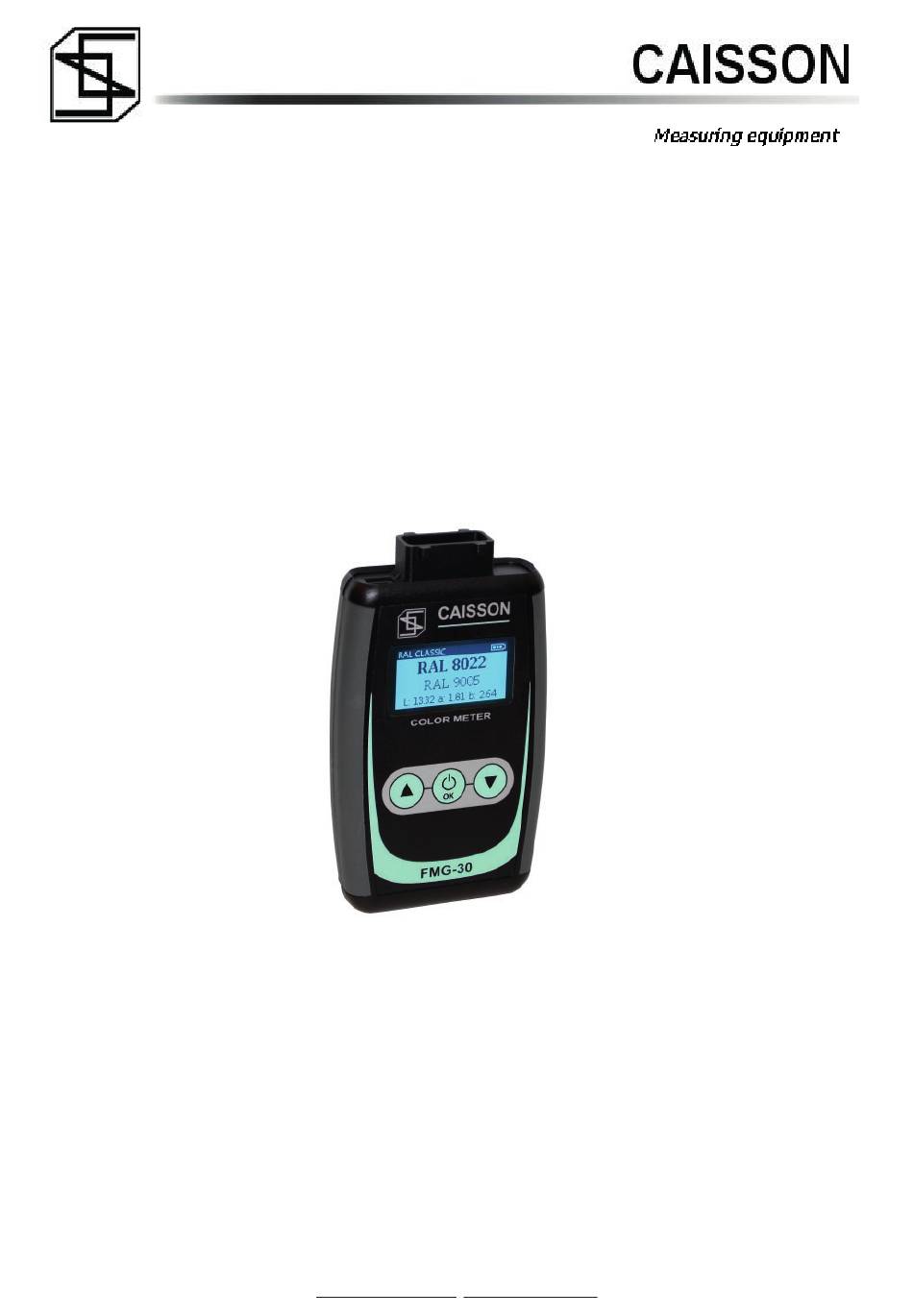

Figure 1. Color meter, general view
2. Measurement method
The color sensor and two electroluminescent diodes create a system based on a 45°/0° geometry. The sam-
ple's surface is illuminated at 45 degrees. The sensor is placed at 0 degrees parallel to the sample's surface.
The sample's color is mapped out with dE2000, a color-diff erence formula based on the CIELab color spa-
ce, which describes the numerical diff erence between the sample's surface color and reference.
CAISSON ELEKTRONIK GmbH
Boschstrasse 16, D-47533 Kleve, Deutschland
T: +49 (0) 2821-894390
info@caisson-gmbh.de www.caisson-gmbh.de
Advertisement
Table of Contents
Related Manuals for CAISSON FMG-30
Summary of Contents for CAISSON FMG-30
- Page 1 Color Meter FMG-30 User manual 1. Description of the instrument Color meter enables measurement of the color intensity diff erence between a sample under examination and a specimen. Based on a selected color palette, the device’s feedback information shows two colors most closely related to the sample under examination and CIELab color space values L*a*b or the percentage of the components of the sRGB color space.
- Page 2 When turned on for the fi rst time, the instrument operates on the Ral Classic color palette. The instrument automatically turns off after 3 minutes of not being used. When turned on, the instrument operates on the previously used color palette, display mode and language. CAISSON ELEKTRONIK GmbH Boschstrasse 16, D-47533 Kleve, Deutschland T: +49 (0) 2821-894390...
- Page 3 5. Color sensor. 6. Battery holder. Figure 4. Main display Figure 5. Display with a measurements result CAISSON ELEKTRONIK GmbH Boschstrasse 16, D-47533 Kleve, Deutschland T: +49 (0) 2821-894390 info@caisson-gmbh.de www.caisson-gmbh.de...
- Page 4 L*a*b/RGB values are presented in the consecutive lines of the display, which allows for a simultaneous comparison of up to 4 samples. Pressing will deactive the function. Figure 6. Multiple measure CAISSON ELEKTRONIK GmbH Boschstrasse 16, D-47533 Kleve, Deutschland T: +49 (0) 2821-894390 info@caisson-gmbh.de www.caisson-gmbh.de...
- Page 5 (Figure 5), you can start the contrast function. To activate the function, press the left button for a longer time. A message will appear with instructions on how to perform the measurement. CAISSON ELEKTRONIK GmbH Boschstrasse 16, D-47533 Kleve, Deutschland T: +49 (0) 2821-894390 info@caisson-gmbh.de www.caisson-gmbh.de...
- Page 6 A sample that changes appearance depending on the viewpoint • Metallic or husked dye content • Samples with extremely high brightness (can contain fl uorescent pigments) CAISSON ELEKTRONIK GmbH Boschstrasse 16, D-47533 Kleve, Deutschland T: +49 (0) 2821-894390 info@caisson-gmbh.de www.caisson-gmbh.de...
- Page 7 The warranty covers only those faults which are caused by defects in material or workmanship. A warranty claim must be accompanied by a proof of purchase with the date of sale specifi ed. Warranty repairs shall only be performed by an authorized distributor of CAISSON. The following are excluded from the warranty: •...
- Page 8 Lifetime (at room temperature): approximately 18 h. PHYSICAL CHARACTERISTICS: Dimensions: 128 mm x 79 mm x 25 mm. Weight: 162 g with or 116 g without batteries. CAISSON ELEKTRONIK GmbH Boschstrasse 16, D-47533 Kleve, Deutschland T: +49 (0) 2821-894390 info@caisson-gmbh.de www.caisson-gmbh.de...
